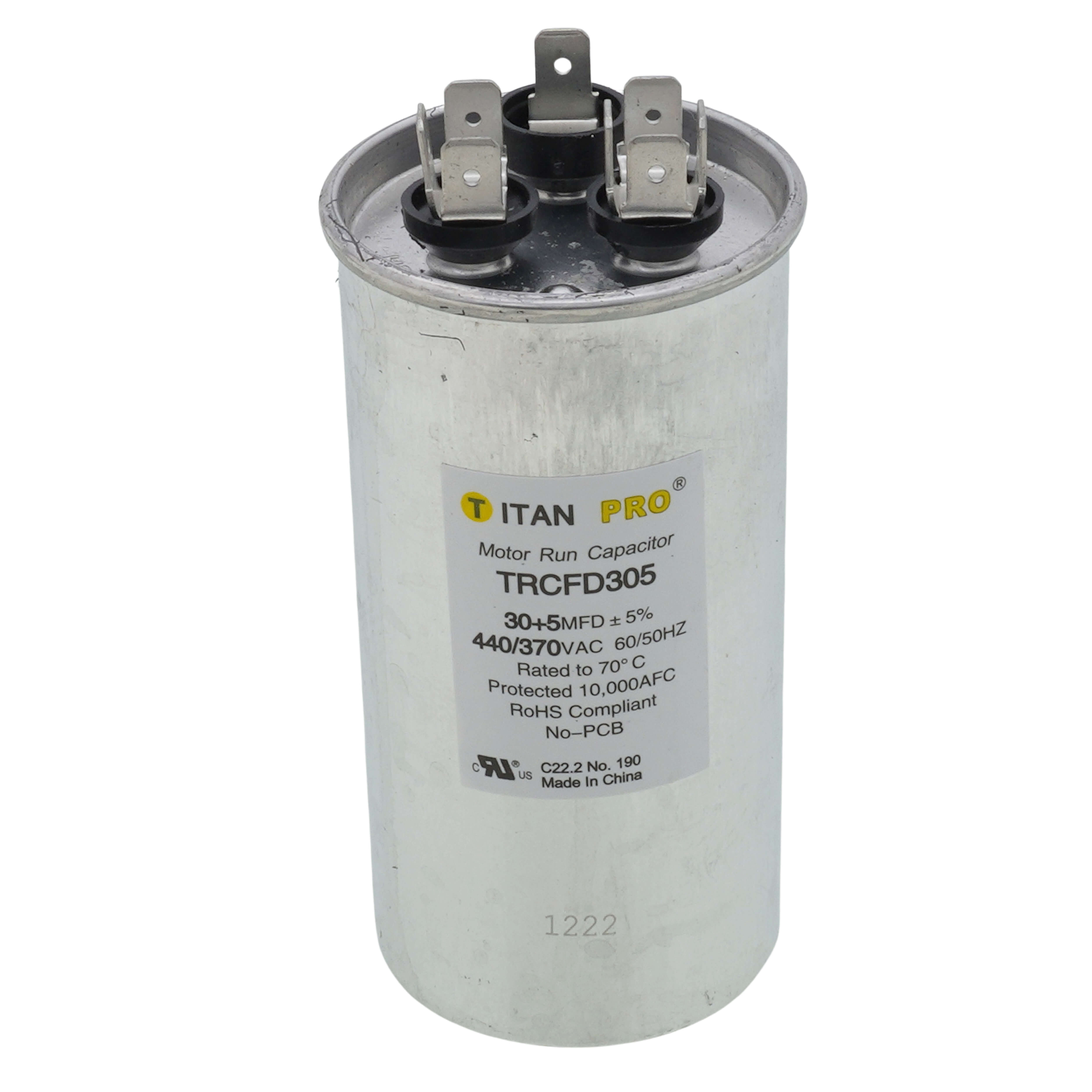

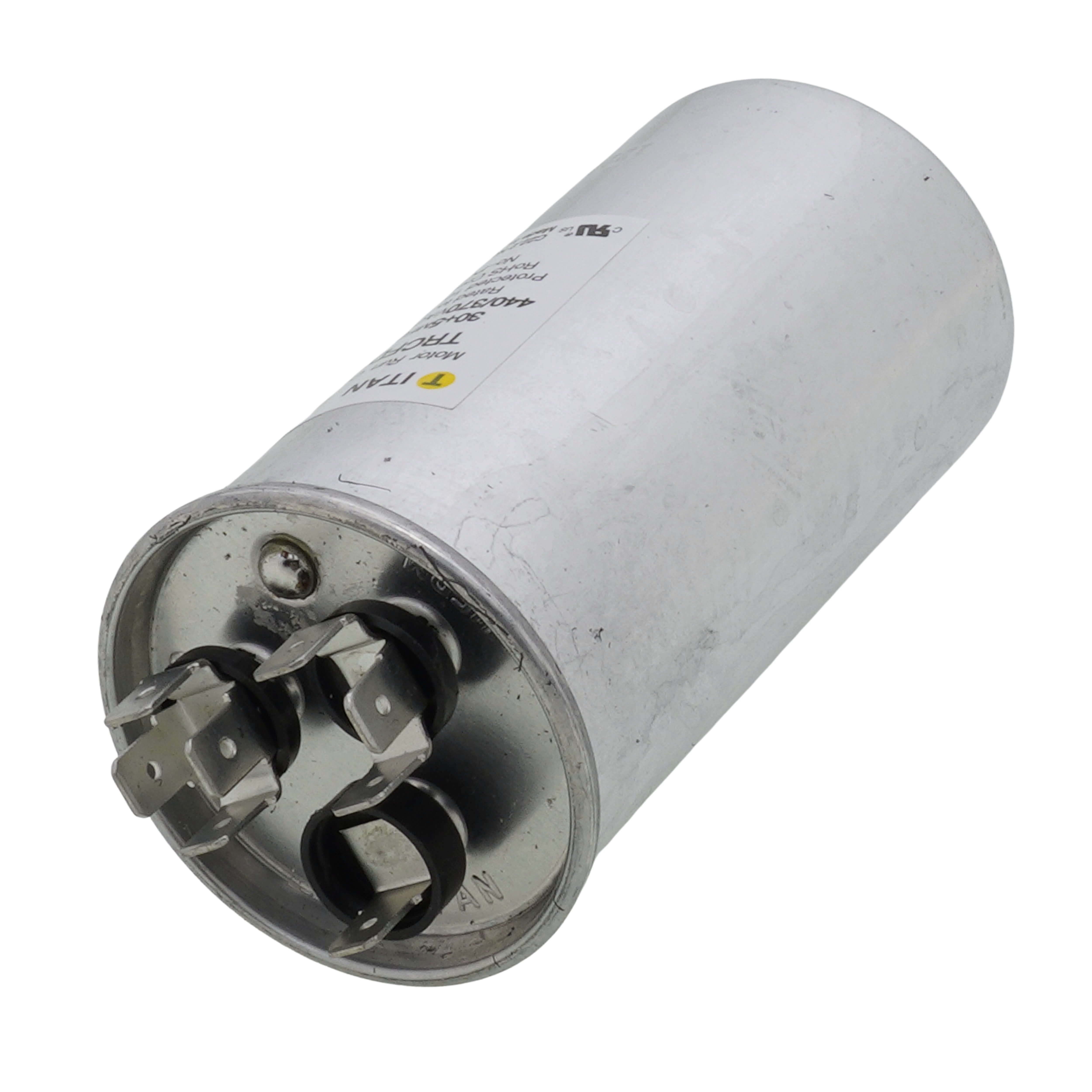

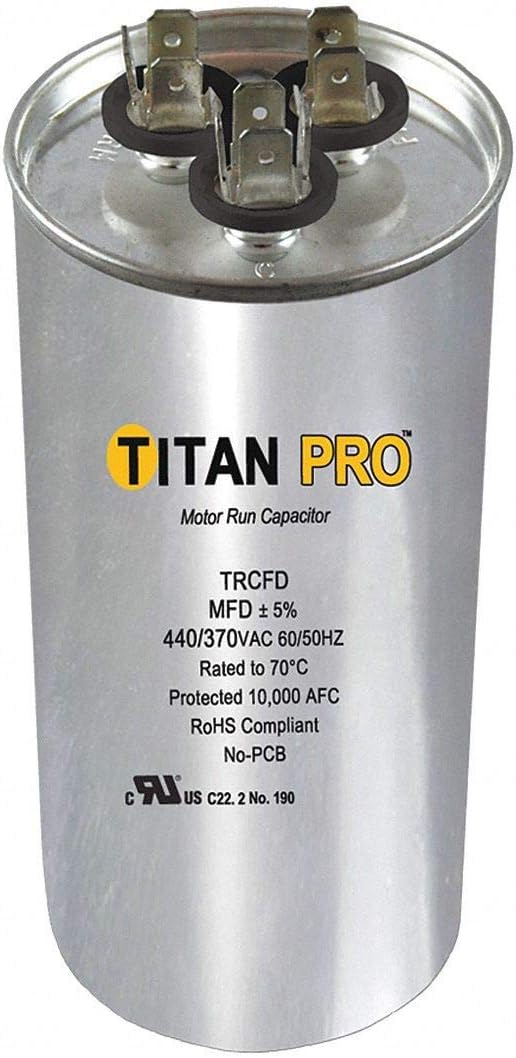

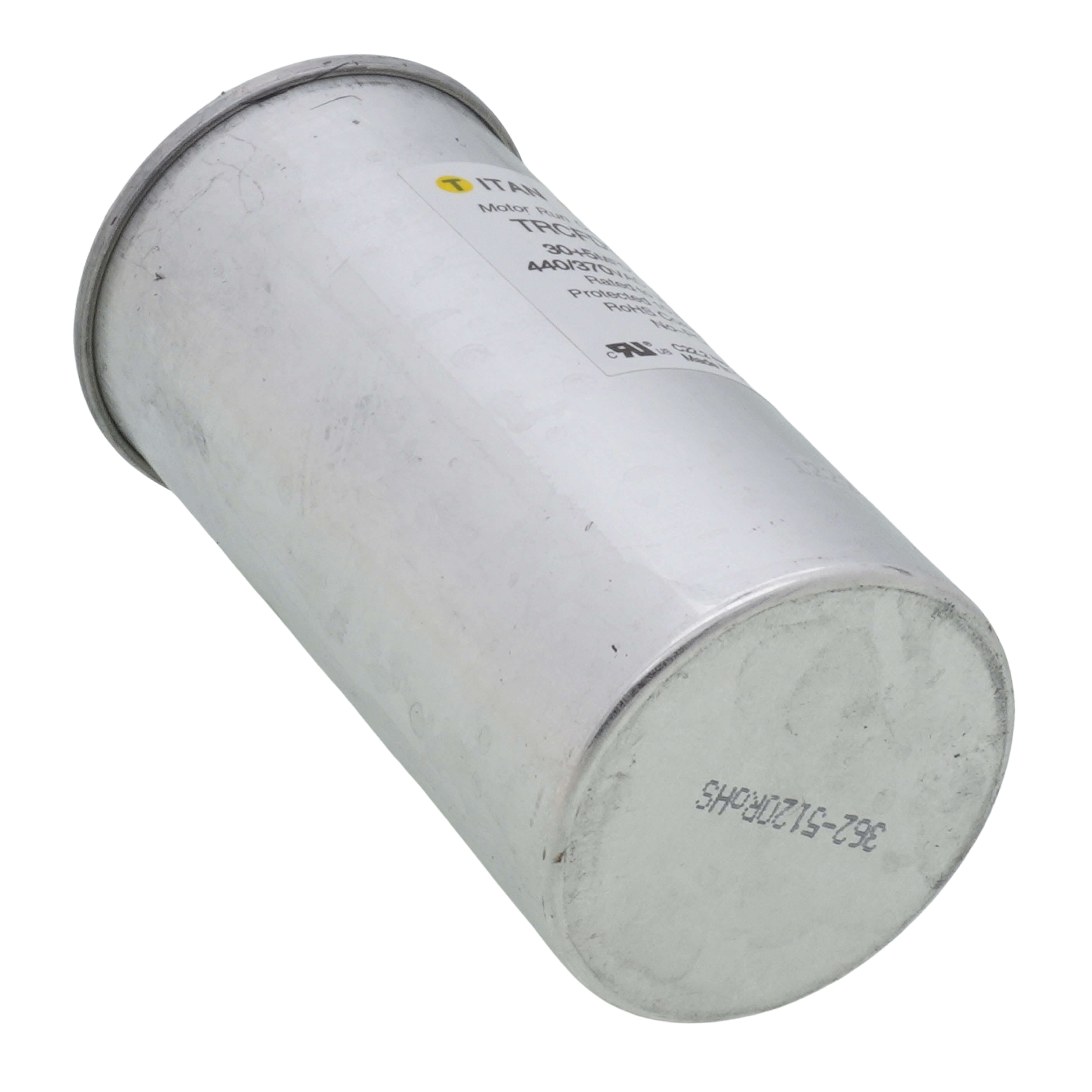

Titan Pro TRCFD305 Round Motor Dual Run Capacitor 30/5 Microfarad Rating 370-440VAC Voltage

Product Description

The TITAN PRO TRCFD305 is a round motor dual run capacitor with a 30/5 Microfarad rating and 370-440VAC voltage. Designed for continuous motor operation, it supports both compressors and fan motors in HVAC systems. It features a round shape and aluminum case material.

• Round Motor Dual Run Capacitor
• 30/5 Microfarad Rating
• 370-440VAC Voltage

Product Highlights

This capacitor is ideal for HVAC systems, air conditioners, heat pumps, and other AC motor applications requiring dual capacitance.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD305
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Aluminum
• Capacitance: 30/5 Microfarad
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• Voltage: 440/370V
• Hz: 60/50
• Capacitor Voltage: 370-440VAC
• Case Material: Aluminum
• Cover Material: Steel
• Terminal Type: Standard Blade
• Temp. Range: -40 Degrees to 70 Degrees C
• Motor Capacitor Type: Motor Dual Run Capacitor
• Case Height: 3-9/16"
• Diameter: 2"
• Overall Width: 2"
• Overall Height: 4-1/16"
• Overall Depth: 2"
• MFD: 30/5
• Product Type: Dual Run Capacitor
• Rated: 30+5 MFD
• Application: Supports both compressors and fan motors in HVAC systems
• Case: Round metal case
• Protection: 10,000AFC protection
• Compliance: RoHS compliance
• Construction: No-PCB construction
• Frequency Rating: 50 to 60 Hz
• Voltage Rating: 370 to 440 V
• Standards: IEC 60252-1:2001
• Terminal Gender: Male
• Terminal Tab Width: 1/4 in
• Number of Pieces: 1
• Terminal Connection Type: Quick Connect
• Number of Terminals: 3
• EIA Tolerance Code: A
• Overall Diameter: 1-31/32 in
• Housing Material: Aluminum
• Housing Height: 3-15/16 in
• Operating Temperature - Minimum: -40 °C
• Operating Temperature - Maximum: 70 °C
• Frequency: 60/50 Hz
• Model: TRCFD305
• Volts: 440|370
• Capacitor type: Film Capacitors
