Product Description

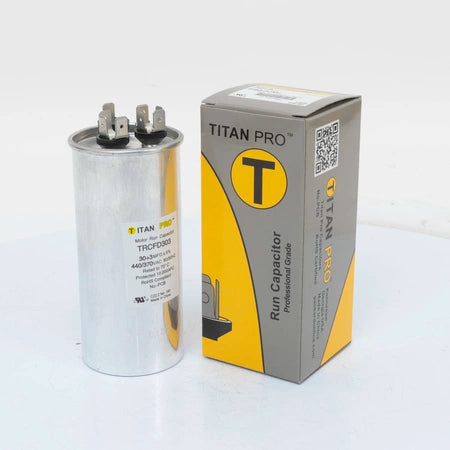

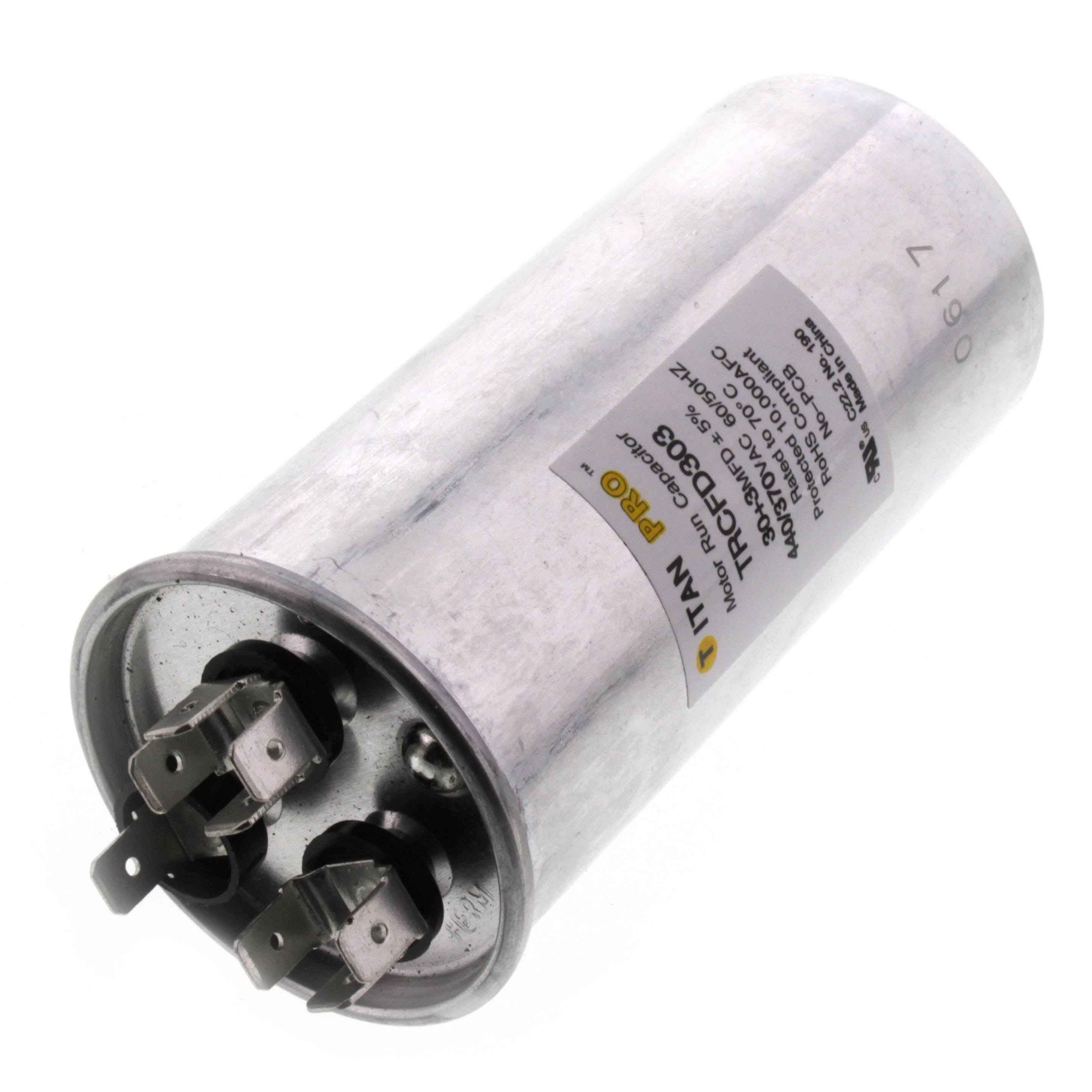

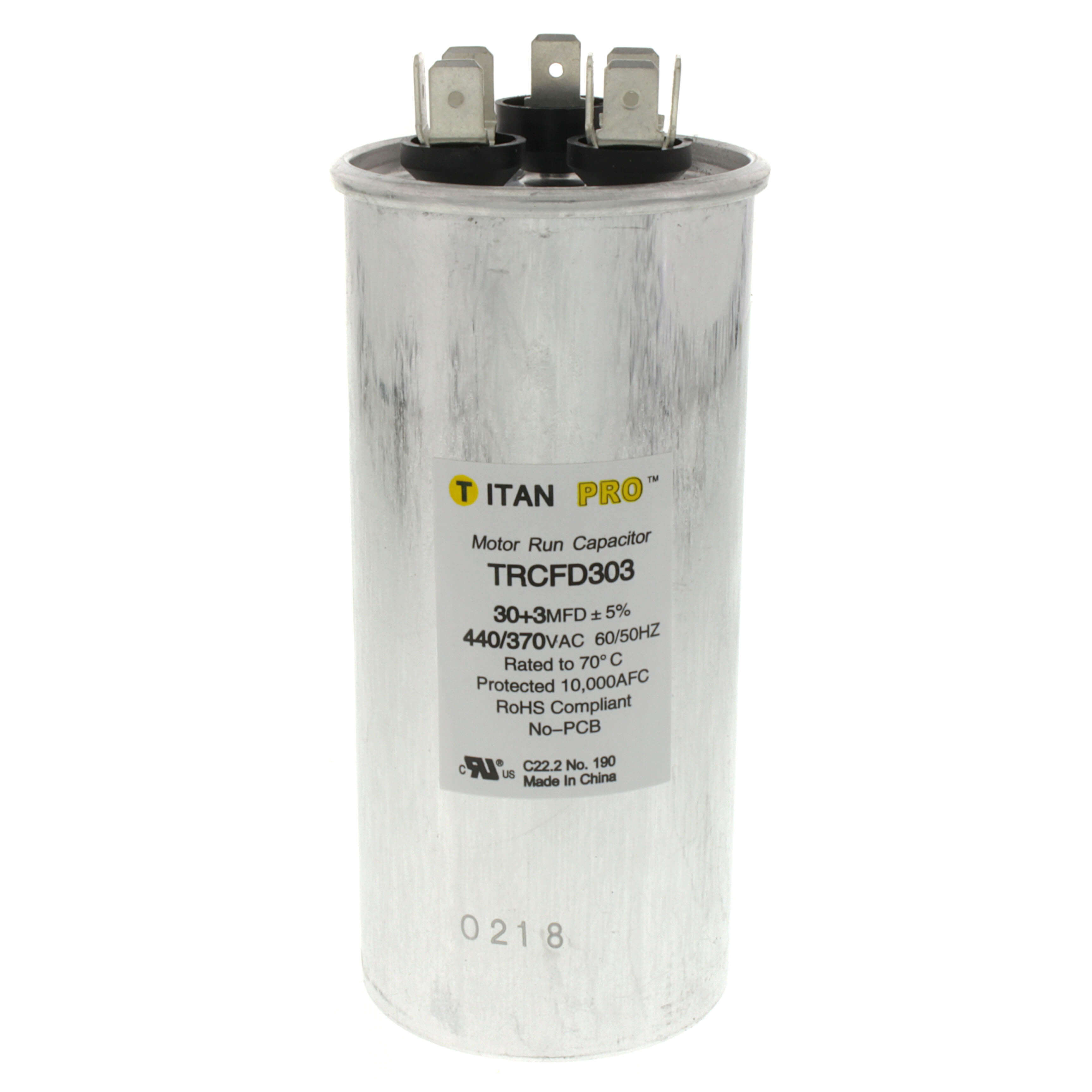

The TITAN PRO TRCFD303 is a professional-grade motor run capacitor with an operational life of 60,000 hours, outperforming standard capacitors by 83%. It is designed to meet international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001. Features heavy-edged metalized polypropylene film and a second-generation anti-explosion safety switch.
- Reliable: 60,000 hours operational life
- Flexible: Titan PRO 440/370 volt design reduces inventory and Titan PRO 370 volt offers best in class value
- Compliant: Built to the toughest international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001
Product Highlights
This capacitor has been 100% electrical tested and contains proprietary bio-degradable oil.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCFD303
-
Country of Origin: United States
Technical Specifications
-
MFD: 30/3
-
Shape: Round
-
Voltage: 440/370V
-
Product Type: Capacitor
-
Item [Specifications]: Motor Dual Run Capacitor
-
Diameter [Specifications]: 1 31/32 in
-
Frequency [Specifications]: 50/60 Hz
-
Standards [Specifications]: EIA-456-A, IEC 60252-1:2001
-
Case Height [Specifications]: 4 11/32 in
-
EIA UL Base [Specifications]: A
-
For Use With [Specifications]: Motor
-
Case Material: Aluminum
-
Overall Depth [Specifications]: 1 31/32 in
-
Overall Width [Specifications]: 1 31/32 in
-
Overall Height [Specifications]: 4 27/32 in
-
Capacitor Shape [Specifications]: Round
-
Max. Temperature [Specifications]: 70 Degrees C
-
Min. Temperature [Specifications]: -40 Degrees C
-
Number of Pieces [Specifications]: 1
-
Capacitor Voltage [Specifications]: 440/370V AC
-
Microfarad Rating [Specifications]: 30/3
-
Terminal Designations [Specifications]: Standard
-
Capacitor Voltage Group [Specifications]: 440V AC
-
Capacitance: 30+3 uF
-
Dielectric: Metalized Polypropylene
-
Frequency Rating: 50 to 60 Hz
-
Terminal Type: Standard Blade
-
Voltage Rating: 370 to 440 V
-
Brand: Packard
