Titan Pro TRCFD255 Round Motor Dual Run Capacitor 25/5 Microfarad Rating 370-440VAC Voltage

Product Description

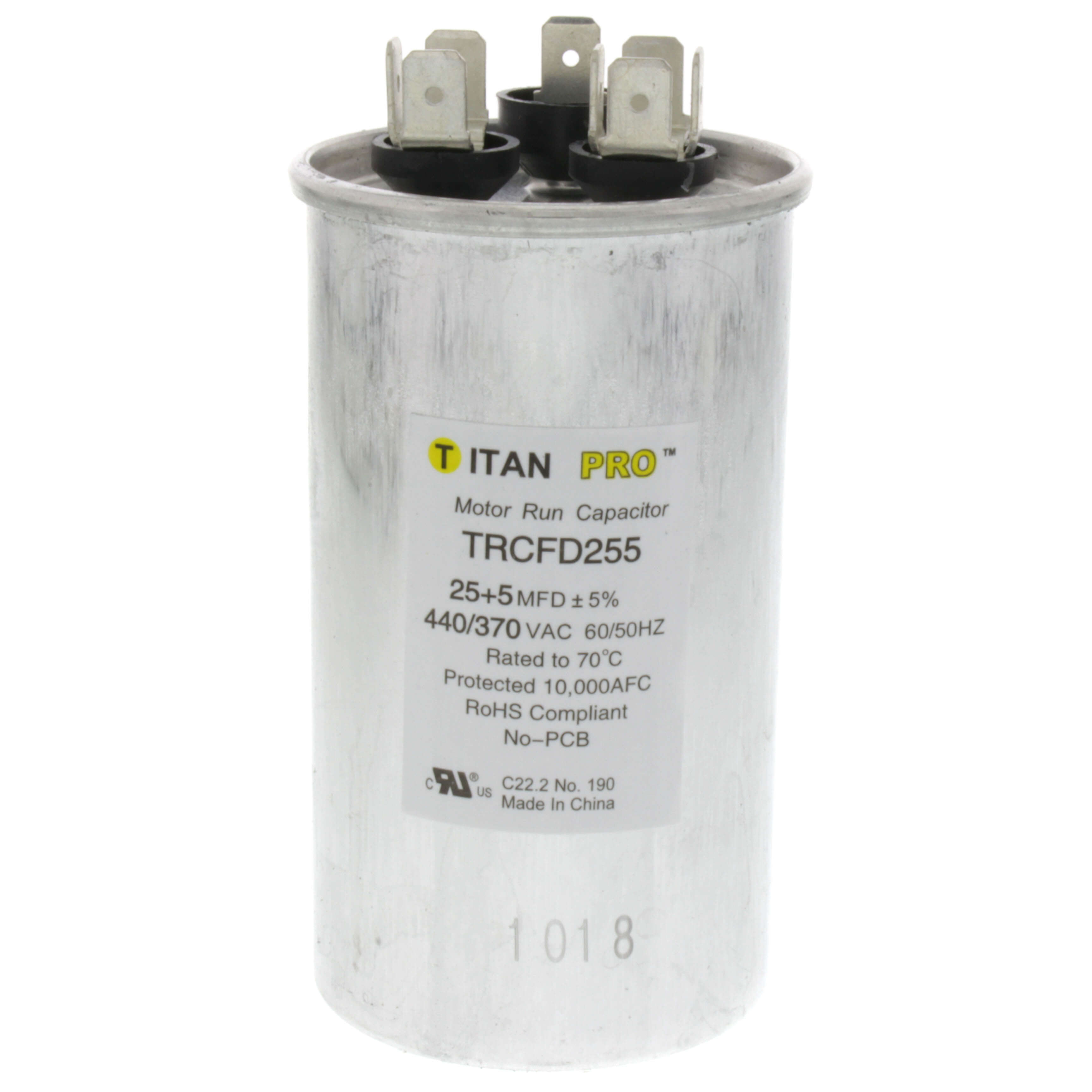

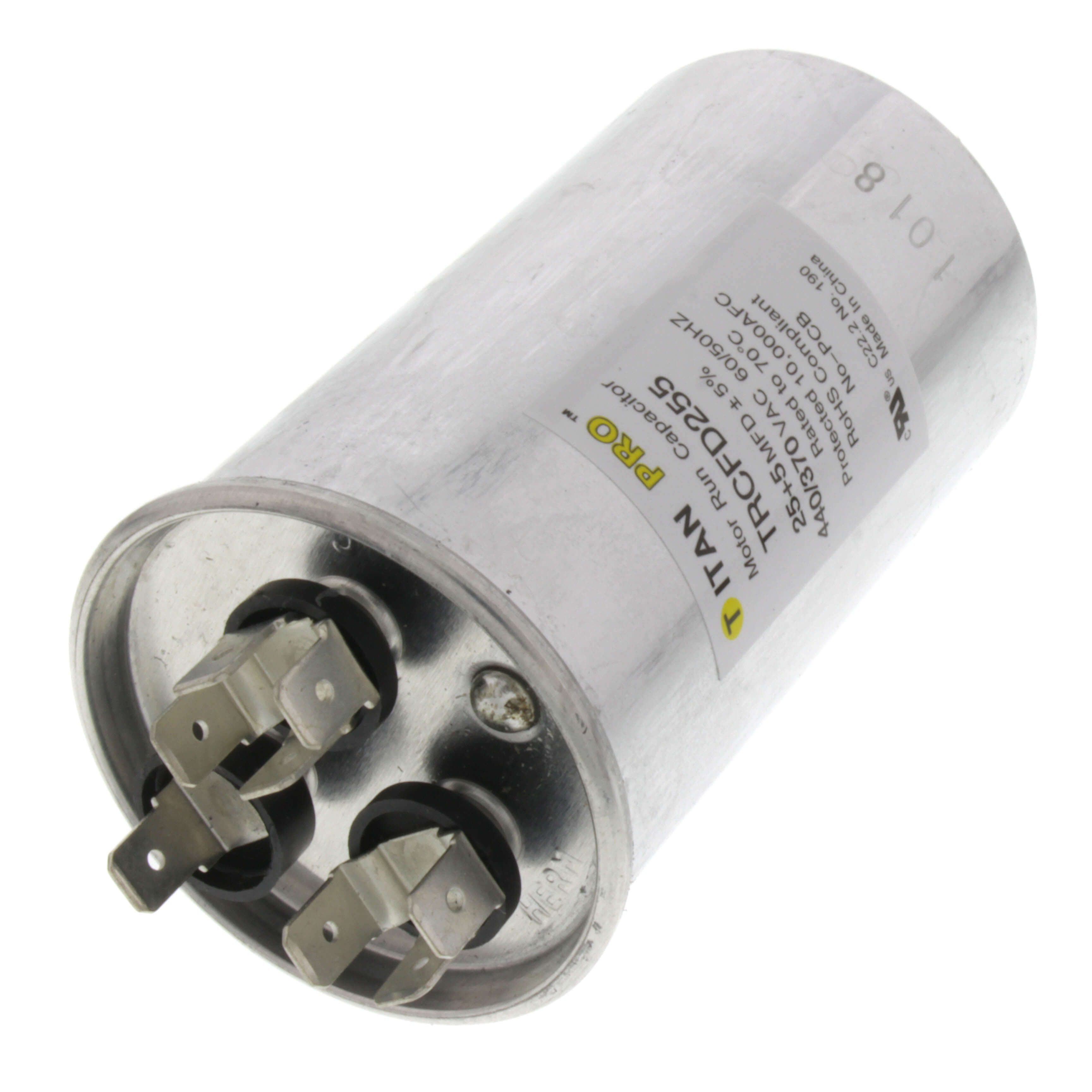

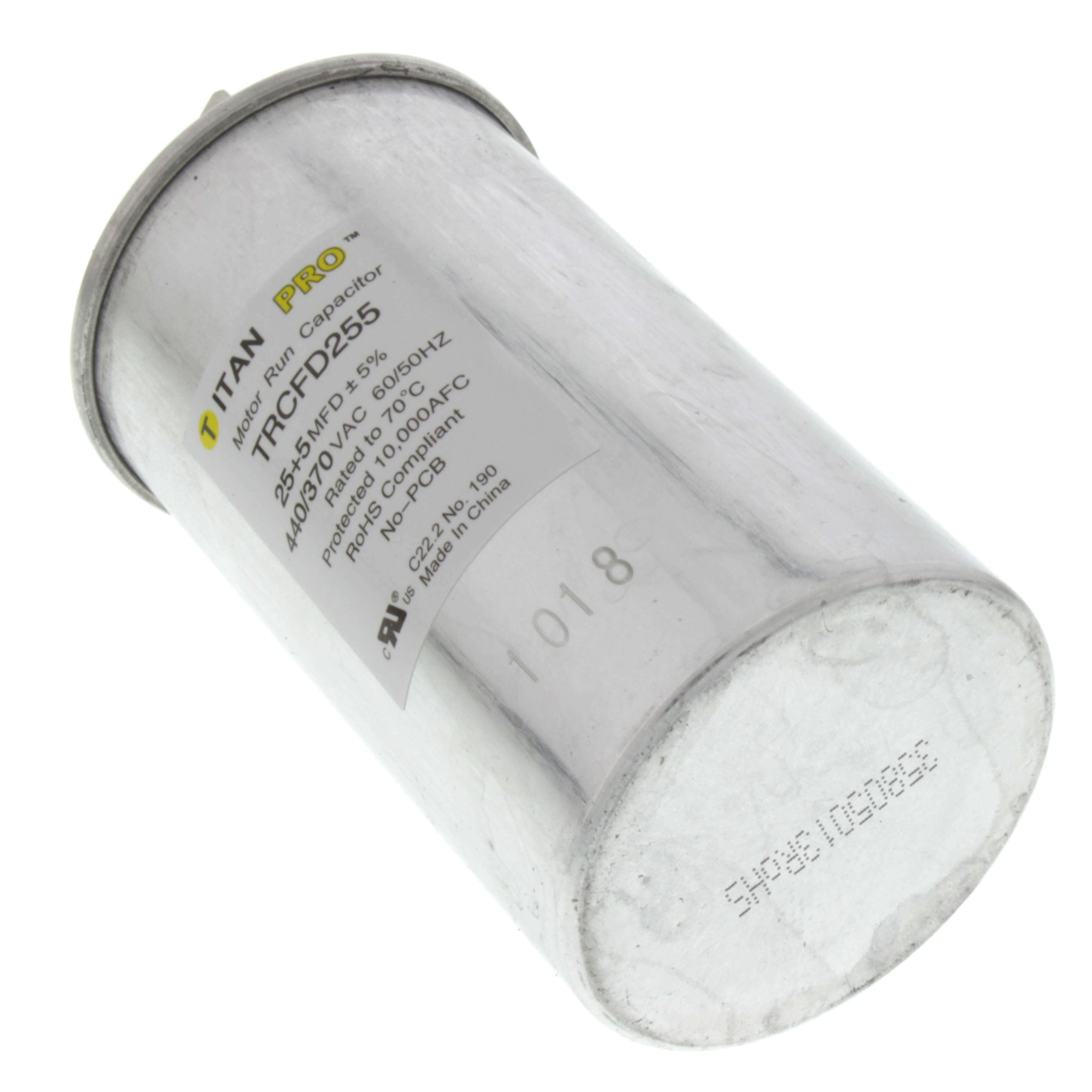

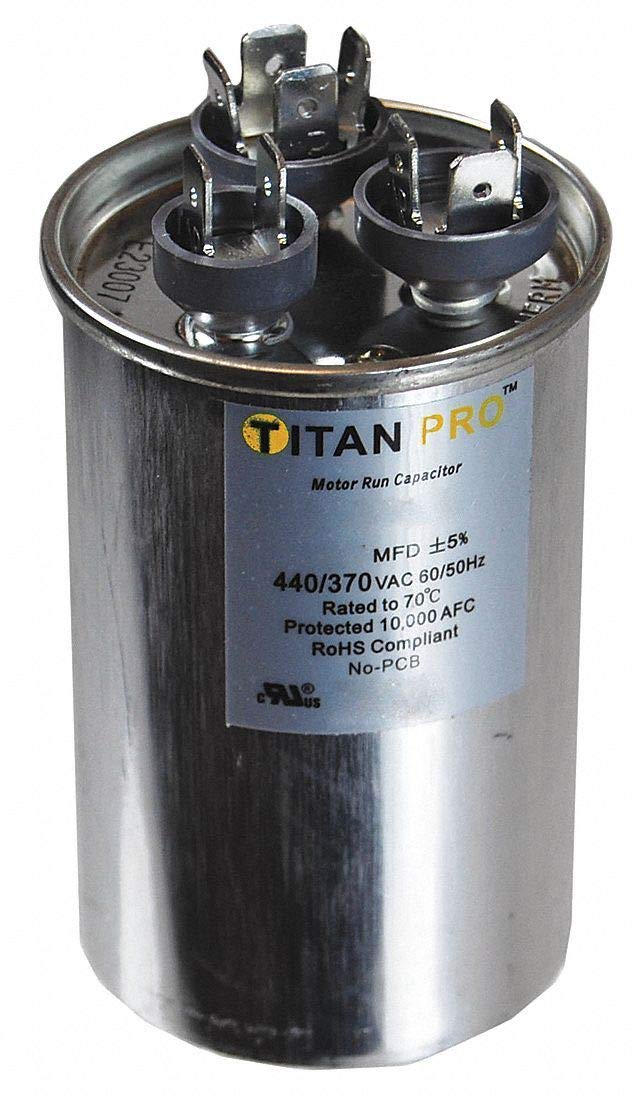

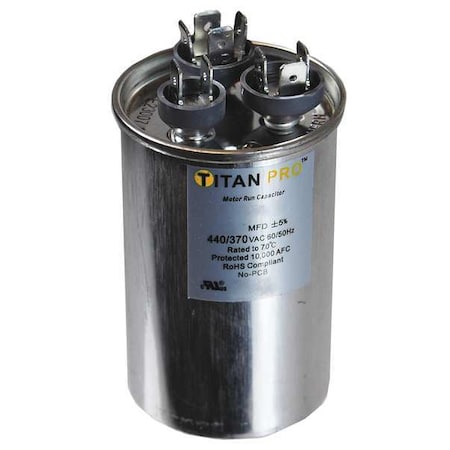

The TITAN PRO TRCFD255 is a round motor dual run capacitor with a 25/5 microfarad rating and 370-440VAC voltage. This capacitor is constructed with an aluminum case and a steel cover. It is designed for use with AC motors and features a 1/4" male quick-connect terminal type. UL Recognized (E185318).

• Microfarad Rating: 25/5
• Voltage: 370-440VAC
• Terminal Type: 1/4" Male Quick-Connect

Product Highlights

This motor dual run capacitor is designed for reliable performance in a variety of motor applications. It meets UL Recognized (E185318) standards.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD255
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Aluminum
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• Batteries Required?: No
• Standards: UL Recognized (E185318)
• Hz: 60/50
• Capacitor Voltage: 440/370V AC
• Case Material: Aluminum
• Cover Material: Steel
• Terminal Type: 1/4" Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• Motor Capacitor Type: Motor Dual Run Capacitor
• Microfarad Rating: 25/5
• Case Height: 3.375"
• Diameter: 2"
• Overall Width: 2"
• Overall Height: 3.875"
• EIA UL Base: S
• Overall Depth: 2"
• Item: Motor Dual Run Capacitor
• Voltage: 440/370V
• Frequency: 60/50 Hz
• EIA Tolerance Code: A
• For Use With: Electric Motors
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1
• Terminal Tab Width: 0.25 in
• Number of Terminals: 3
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• Run MFD: 25+5
• Height (In.): 3.54
• Oil Type: Soy Bean Based
• Operating Temperature Range: -40 to 70
• Terminals: Standard blade terminals
• Tolerance: +/- 5%
• Type: Run Capacitor, Dual Section, Round
• Used On: AC Motor
