Product Description

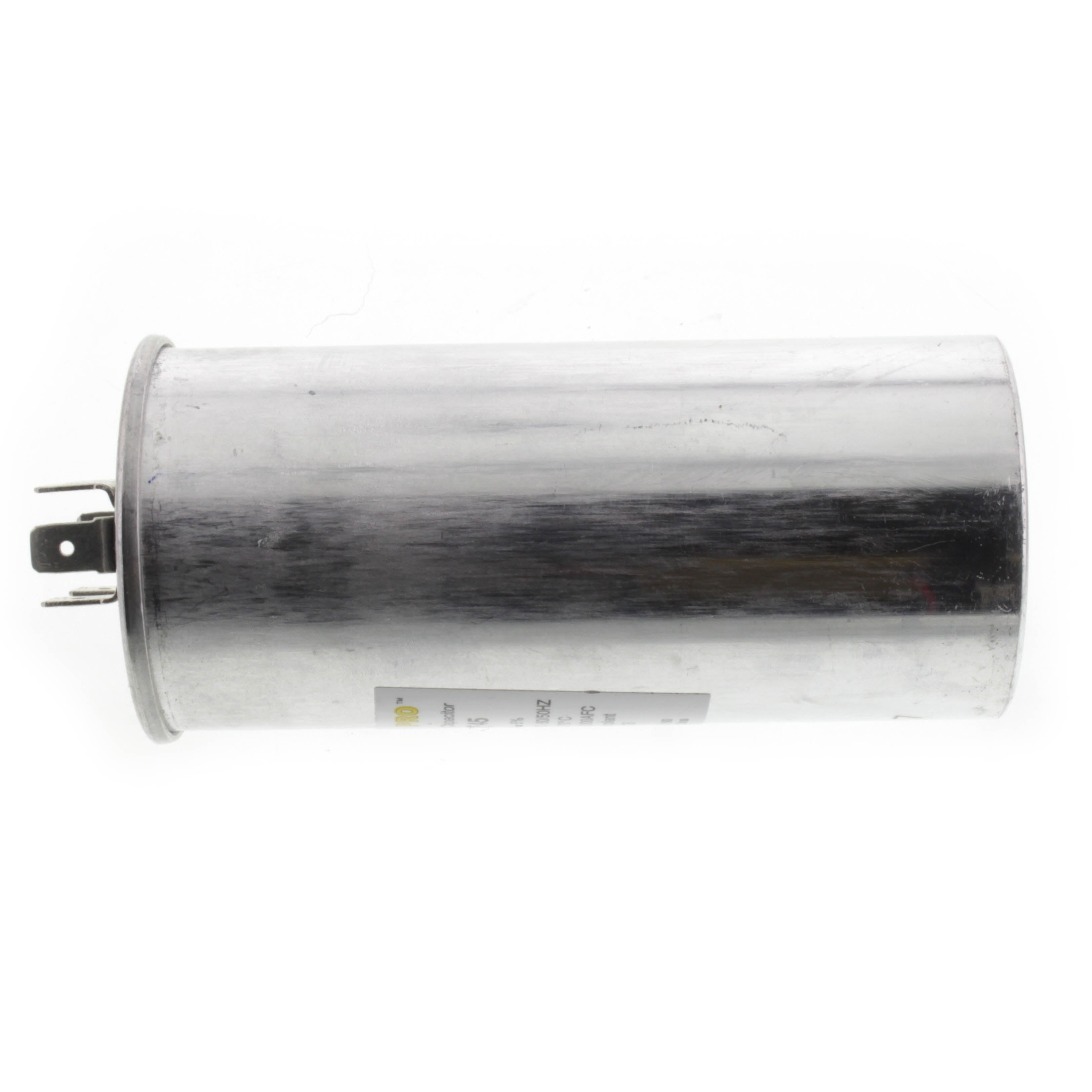

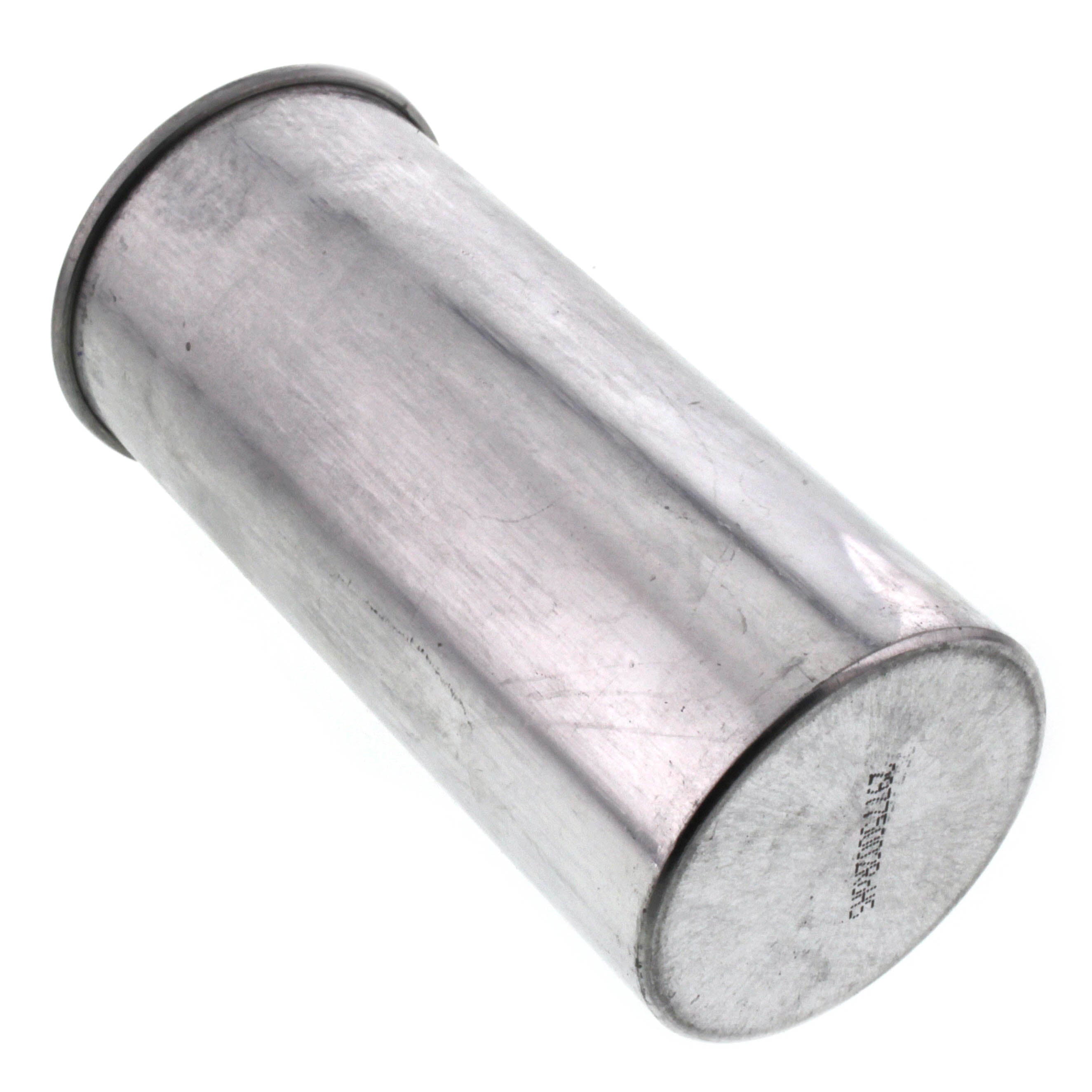

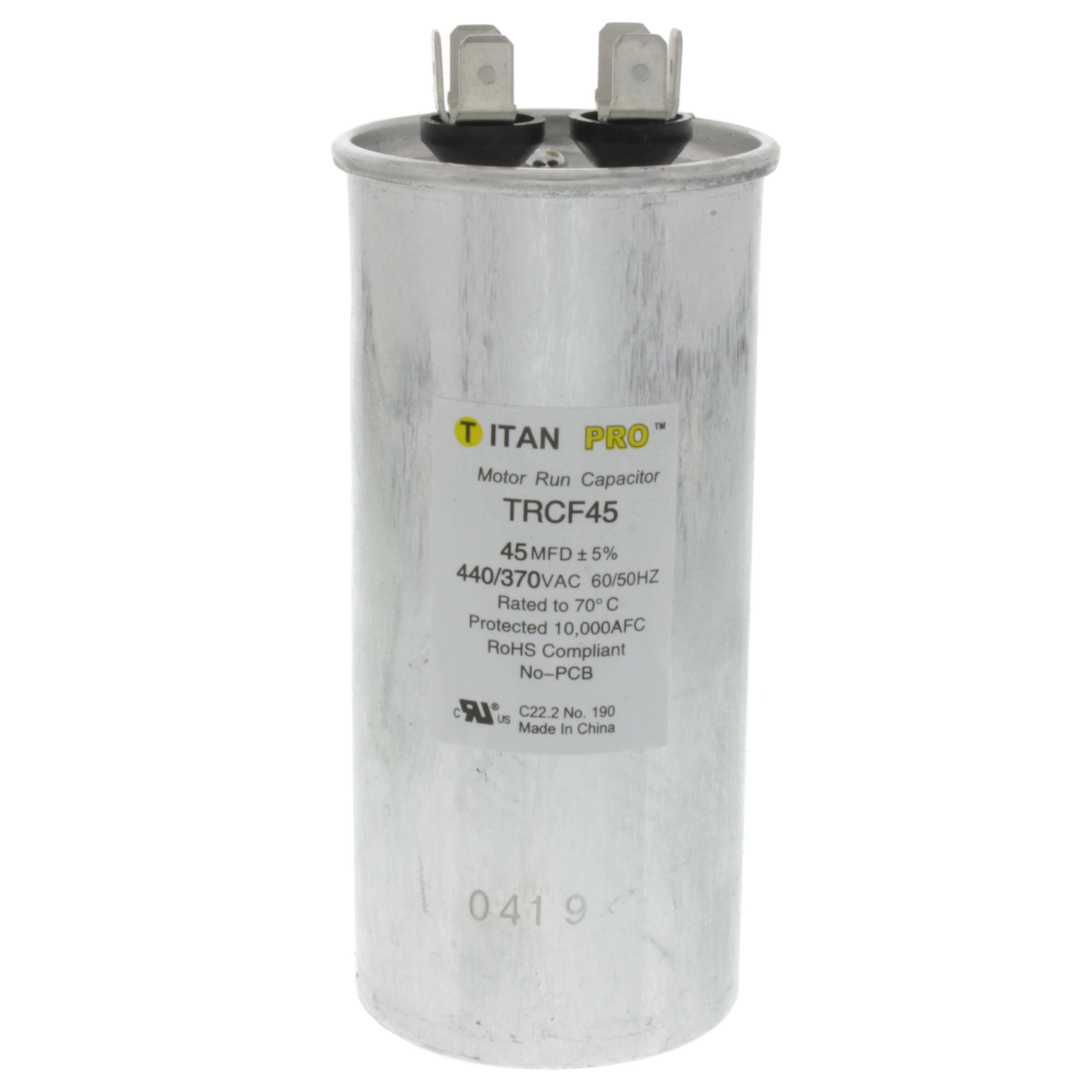

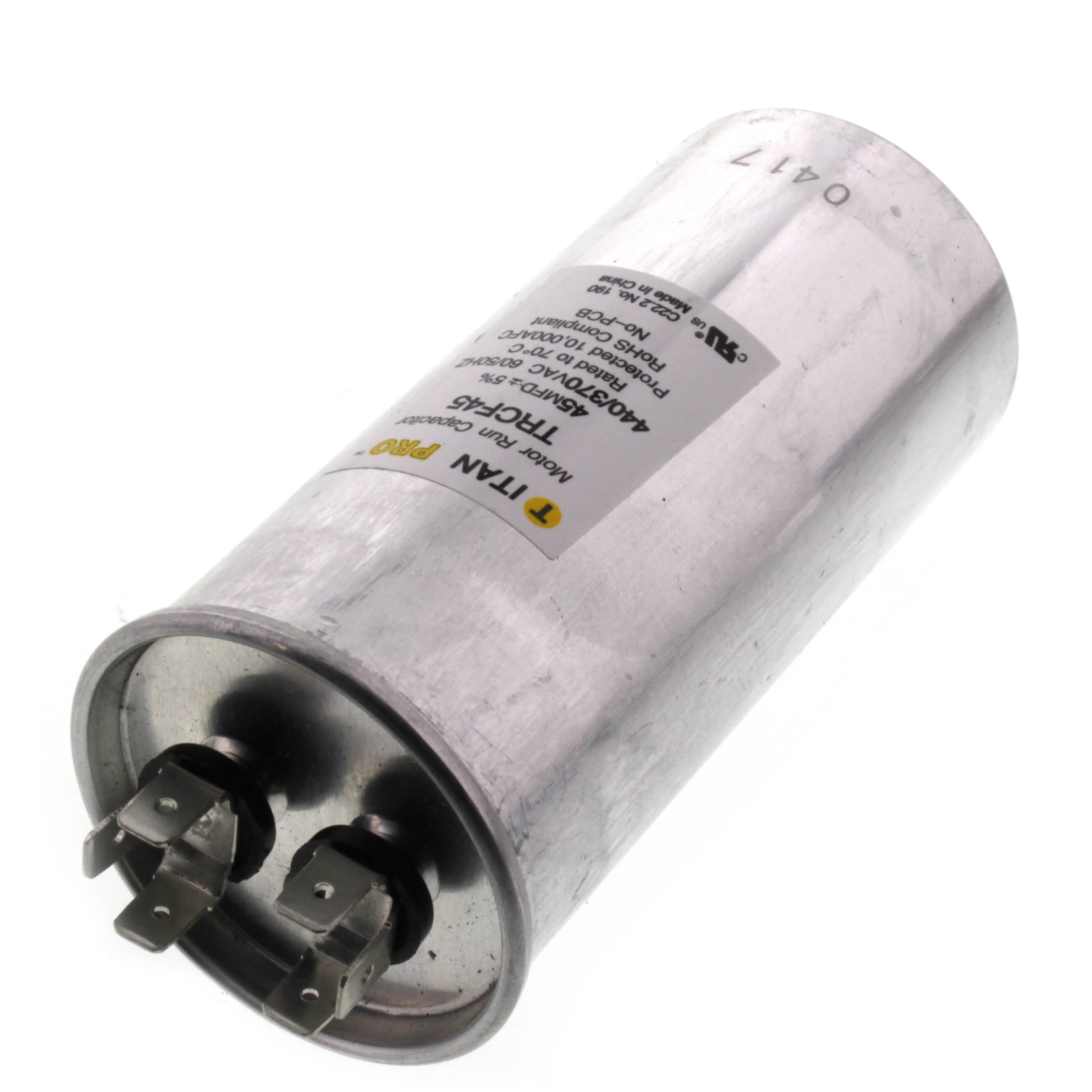

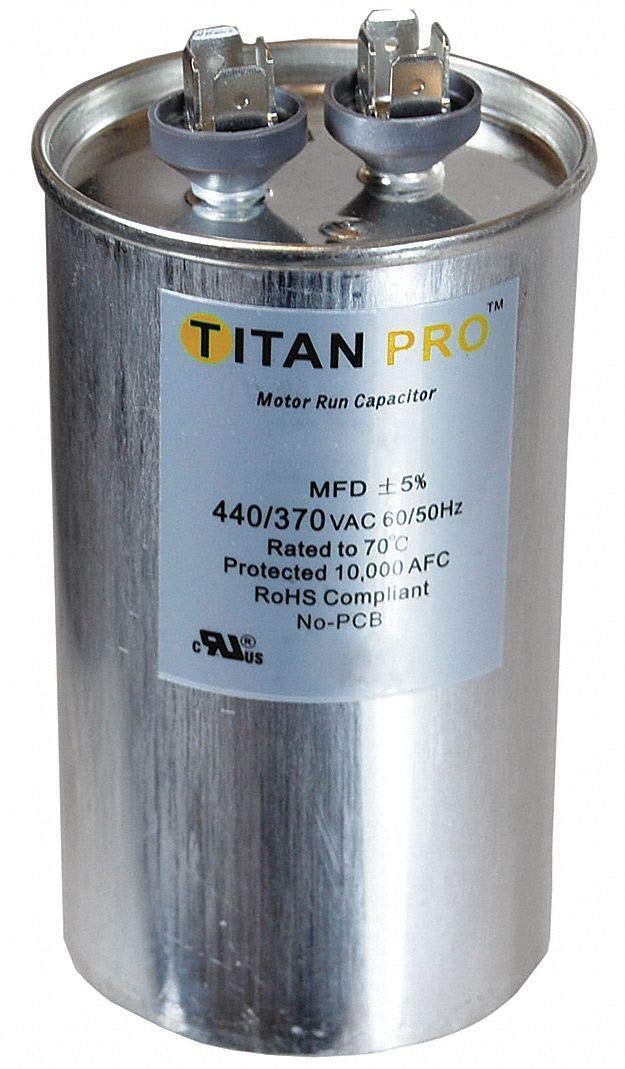

The TITAN PRO TRCF45 round motor run capacitor features a 45 microfarad rating and is designed for 370-440VAC voltage applications. Constructed with an aluminum case and steel cover, this capacitor is suitable for motor run applications. It operates within a temperature range of -40 to 70 degrees C.
- Capacitance of 45 Microfarad
- Operating voltage of 370-440VAC
- Operating temperature range of -40 to 70 degrees C
Product Highlights
Durable motor run capacitor with wide voltage and temperature range, suitable for various motor applications.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCF45
-
Country of Origin: China
Technical Specifications
-
Shape: Round
-
Material: Aluminum
-
Capacitance: 45 Microfarad
-
Maximum Voltage: 440 Volts
-
Operating Voltage: 440 Volts
-
Brand: TITAN PRO
-
MPN: TRCF45
-
Item Model Number: TRCF45
-
Standards: UL Recognized (E185318)
-
Frequency: 60/50 Hz
-
Capacitor Voltage: 370-440VAC
-
Case Material: Aluminum
-
Cover Material: Steel
-
Terminal Type: 1/4" Male Quick-Connect
-
Temperature Range: -40 Degrees to 70 Degrees C
-
Motor Capacitor Type: Motor Run Capacitor
-
Microfarad Rating: 45
-
EIA UL Base: S
-
Item: Motor Run Capacitor
-
Voltage Rating: 370/440 V
-
Mfd: 45
-
Volts: 440/370
-
Voltage: 440/370V AC
-
EIA Tolerance Code: A
-
Terminal Tab Width: 1/4 in
-
Number of Terminals: 2
-
Terminal Designations: Standard
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Pieces: 1
-
For Use With: Electric Motors
-
Hz: 60/50
