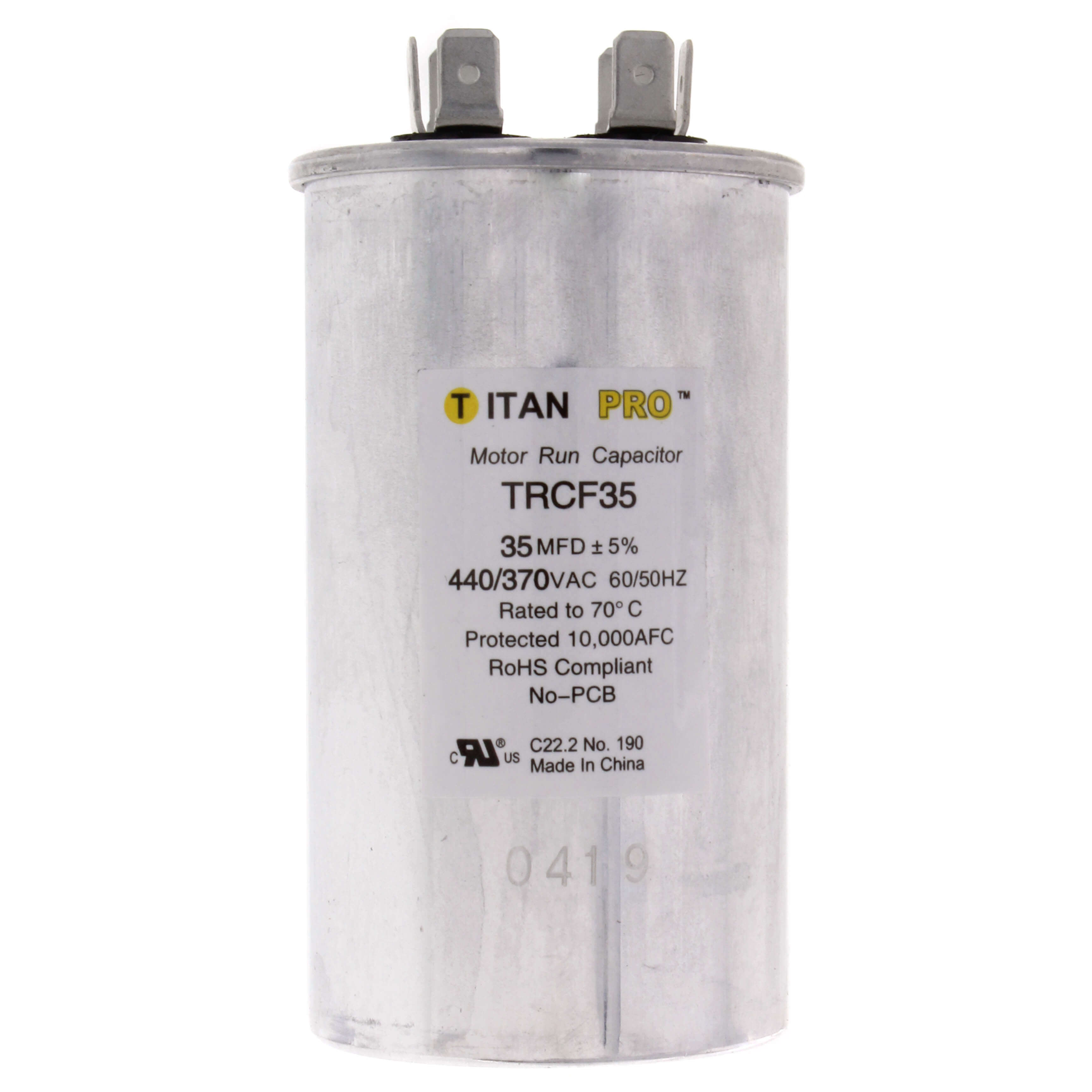

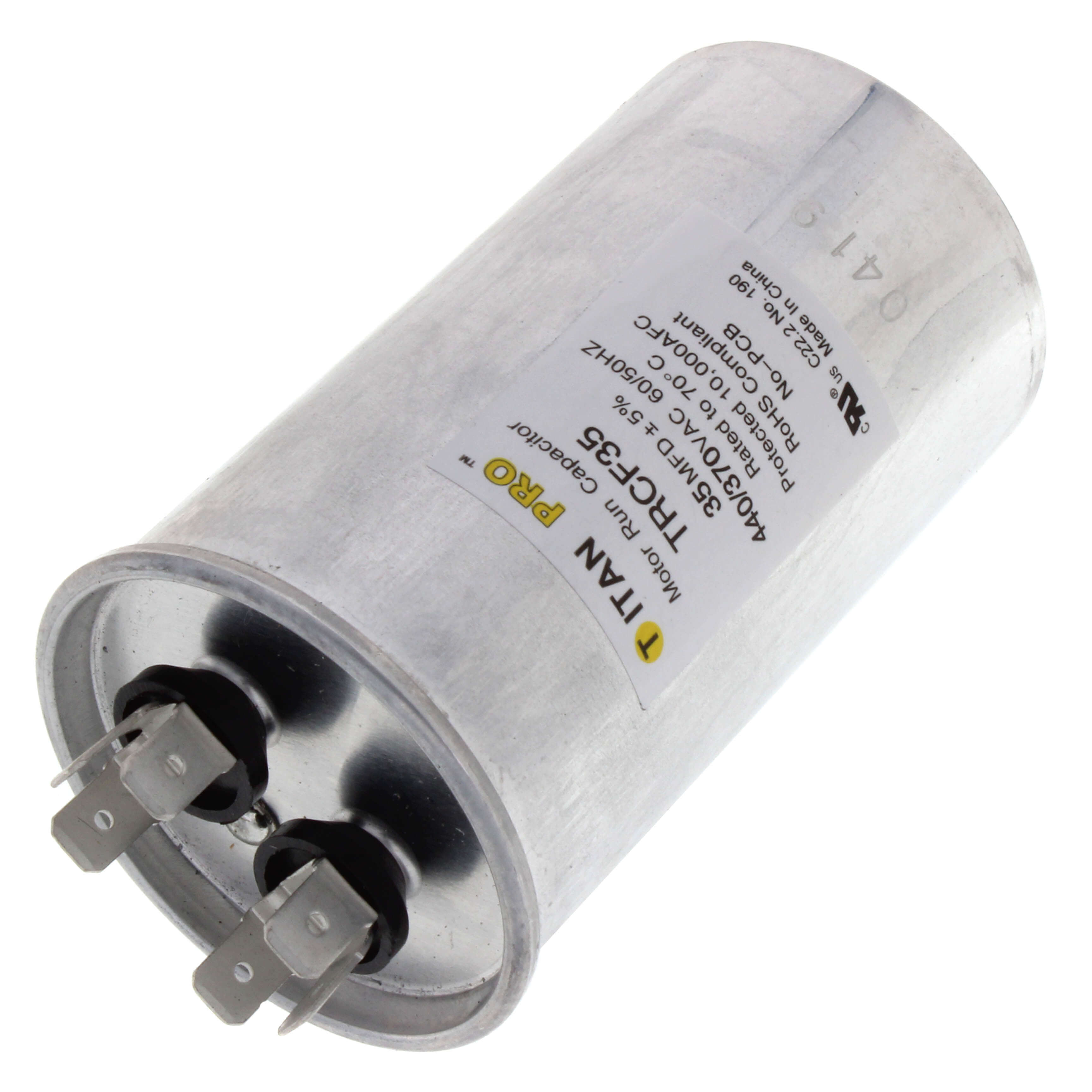

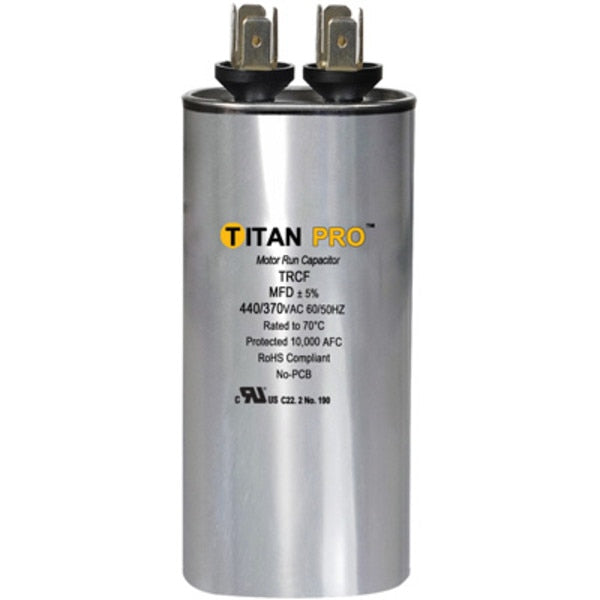

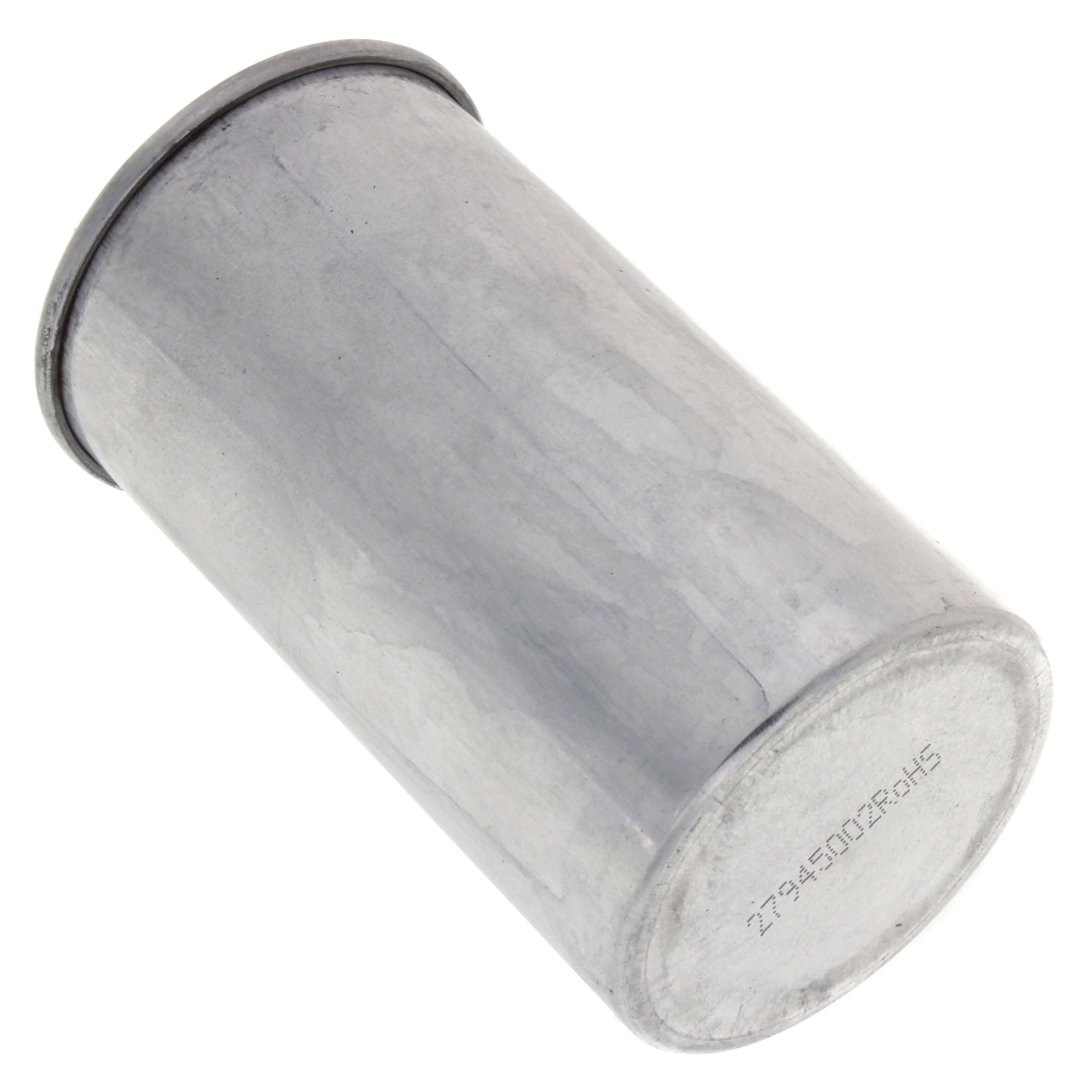

Titan Pro TRCF35 Motor Run Capacitor 35 MFD 3-7/8 in. H

Product Description

The TITAN PRO TRCF35 motor run capacitor features a 35 microfarad rating and is designed for 370-440V voltage applications. This capacitor has a round shape with a 2-inch diameter and an overall height of 3-7/8 inches. It is constructed with an aluminum case and a steel cover, and it meets UL Recognized (E185318) standards.

• Microfarad Rating: 35
• Voltage: 370-440V
• Terminal Type: 1/4 In. Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C

Product Highlights

Durable motor run capacitor with wide voltage and temperature range, suitable for various motor applications.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCF35
• Country of Origin: China

Technical Specifications

• Microfarad Rating: 35
• Voltage: 370-440V
• Frequency: 60/50 Hz
• Shape: Round
• Diameter: 2 In.
• Case Height: 3-3/8 In.
• Overall Height: 4 in
• Overall Width: 2 In.
• Overall Depth: 2 In.
• Terminal Type: 1/4 In. Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Product Type: Run Capacitor
• Terminal Gender: Male
• Terminal Tab Width: 1/4 in
• Number of Pieces: 1
• Number of Terminals: 2
• EIA Tolerance Code: A
• Housing Material: Aluminum
• Operating Temperature - Minimum: -40 °C
• Operating Temperature - Maximum: 70 °C
• Housing Shape: Round
• Capacitance: 35 MFD
• Overall Diameter: 2 in
• Terminal Connection Type: Quick Connect
• Motor Capacitor Type: Motor Run Capacitor
• Connection Type: Quick Connect
