Product Description

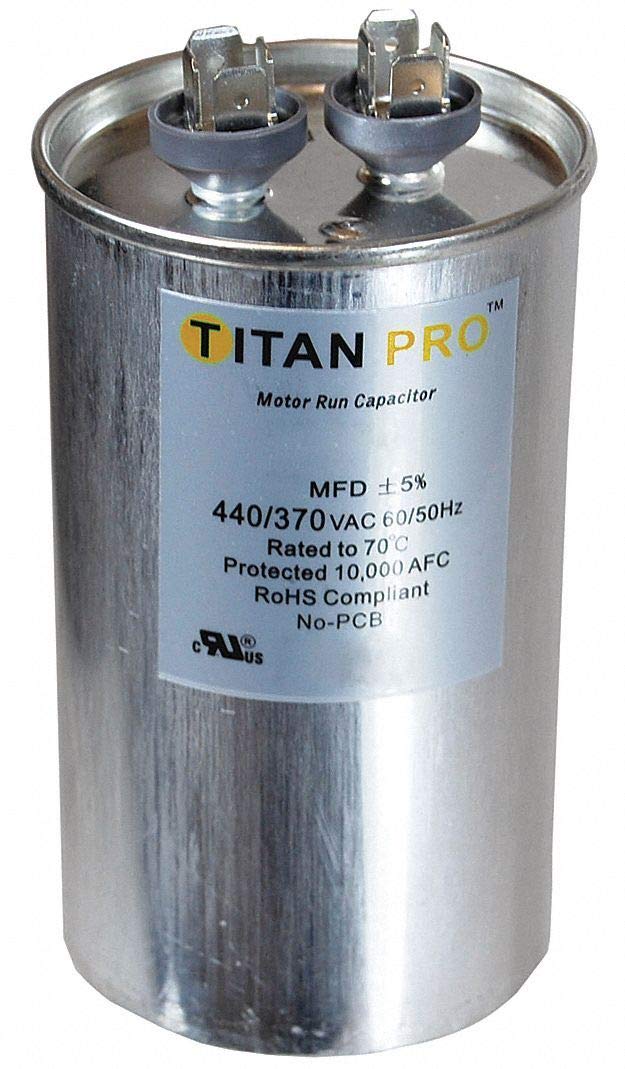

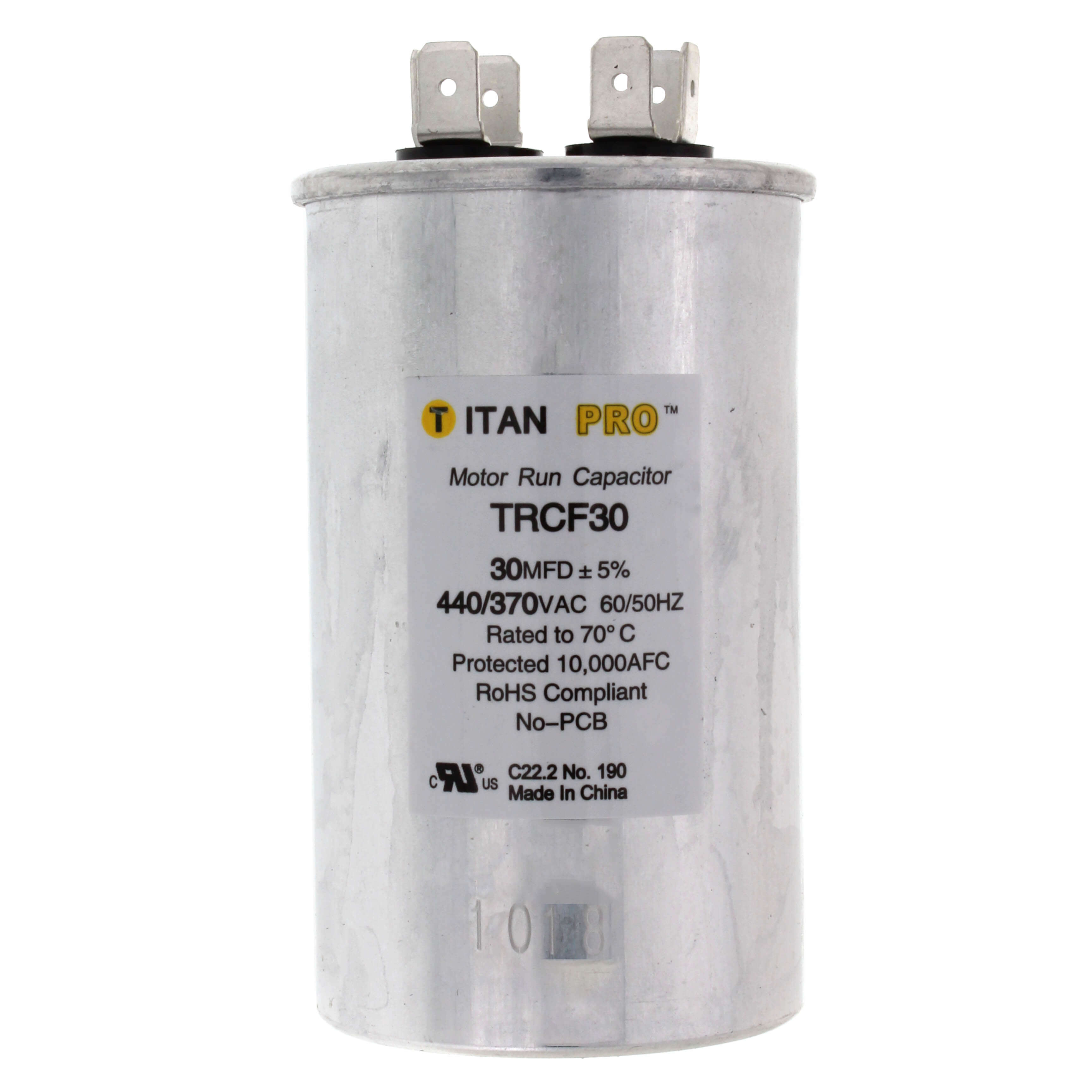

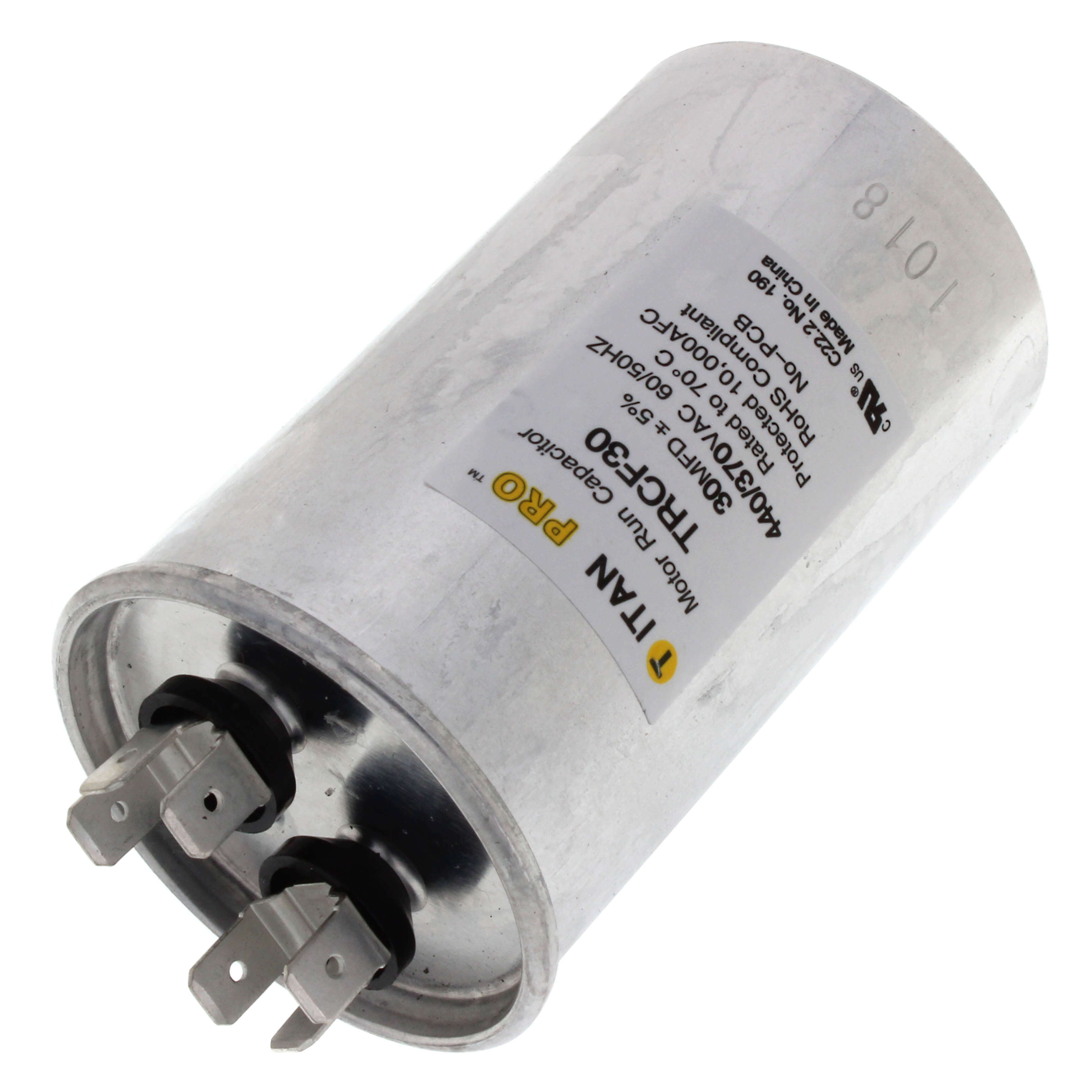

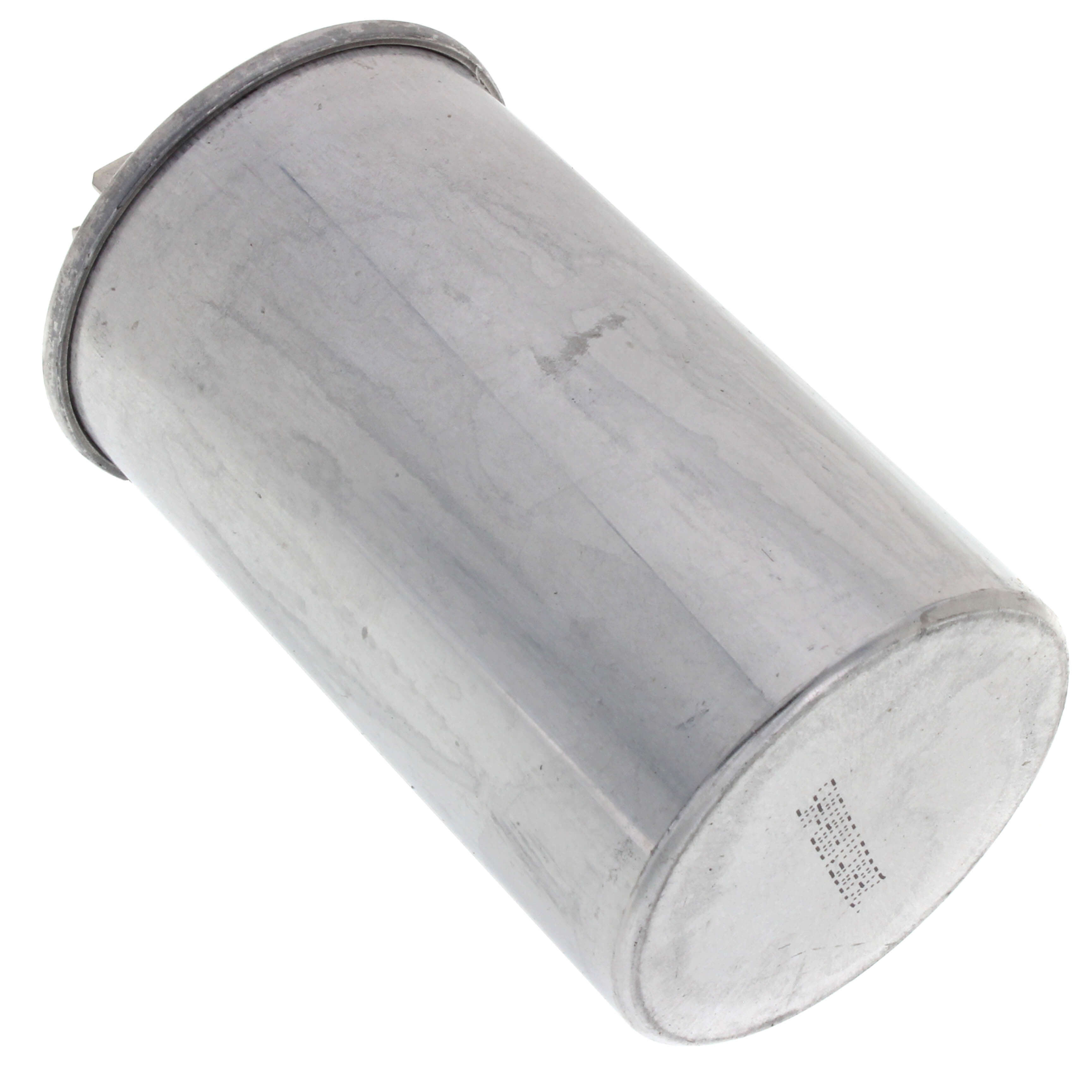

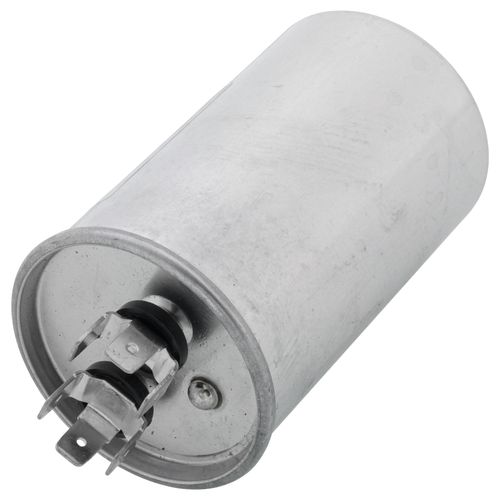

The TITAN PRO TRCF30 is a motor run capacitor with a capacitance of 30 MFD (Microfarad) and a height of 3-5/8 inches. It is designed for motor applications requiring an operating voltage of 440 Volts. The capacitor features a round shape and is constructed with an aluminum case material.
- Capacitance: 30 Microfarad
- Operating Voltage: 440 Volts
- Case Material: Aluminum
Product Highlights
This motor run capacitor is suitable for various motor applications. It features a round shape and is constructed with an aluminum case.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCF30
-
Country of Origin: China
Technical Specifications
-
Shape: Round
-
Material: Aluminum
-
Capacitance: 30 Microfarad
-
Operating Voltage: 440 Volts
-
Item: Motor Run Capacitor
-
Microfarad Rating: 30
-
Voltage: 440/370V
-
Hz: 60/50
-
Diameter: 2"
-
Case Height: 3-1/8"
-
Overall Height: 3-5/8"
-
Overall Width: 2"
-
Overall Depth: 2"
-
EIA UL Base: S
-
Terminal Type: 1/4" Male Quick-Connect
-
Temp. Range: -40 Degrees to 70 Degrees C
-
Cover Material: Steel
-
Standards: UL Recognized (E185318)
-
Capacitor Voltage: 370-440VAC
-
Motor Capacitor Type: Motor Run Capacitor
-
Frequency: 60/50 Hz
-
For Use With: Electric Motors
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Pieces: 1
-
EIA Tolerance Code: A
-
Terminal Tab Width: 1/4 in
-
Number of Terminals: 2
-
Terminal Designations: Standard
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
-
Product Type: Capacitor
-
Diameter (Inches): 1.97"
-
Width (Inches): 1.97"
-
Height (Inches): 3.35"
-
Mfd: 30
-
Volts: 440/370
