Product Description

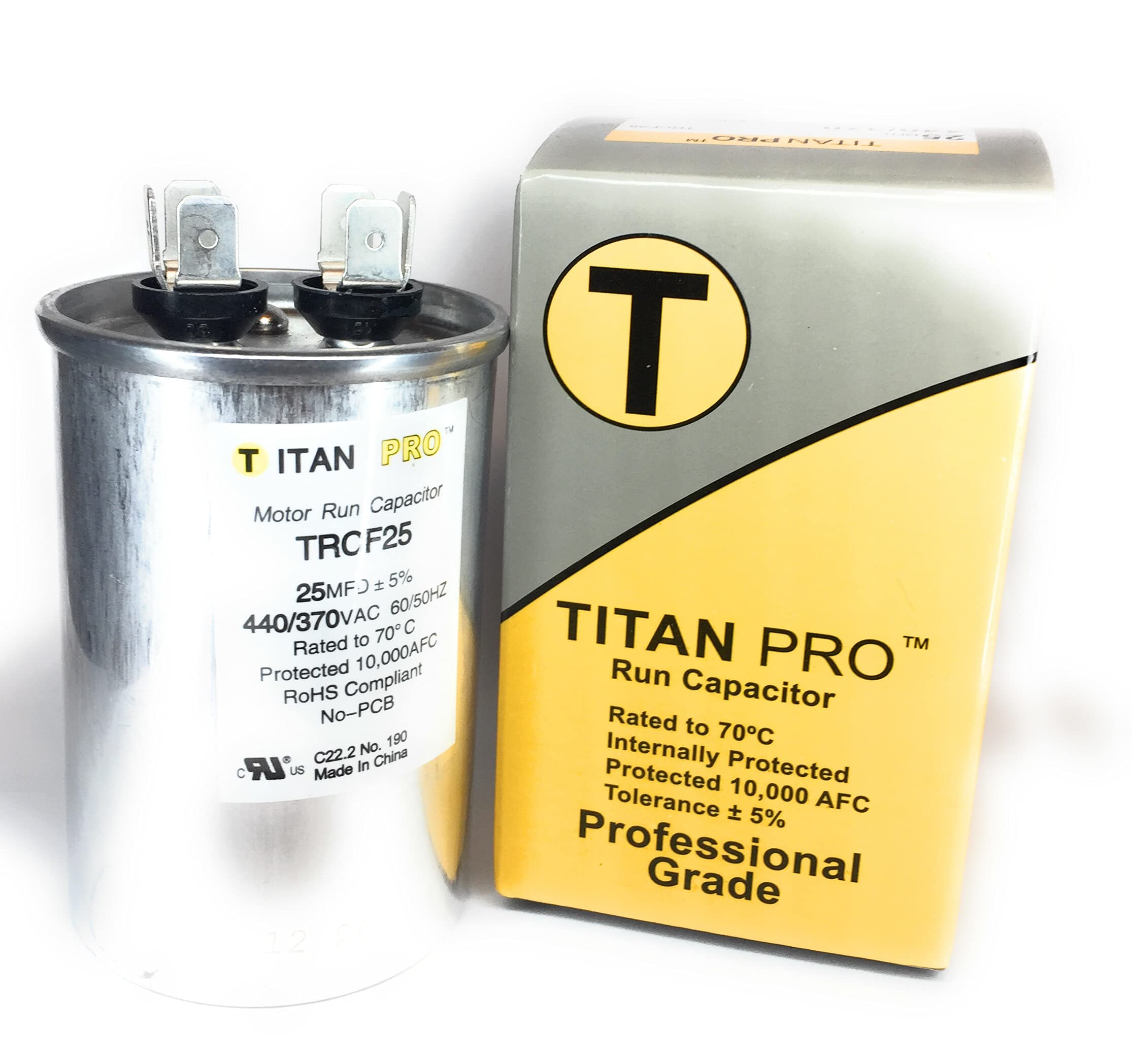

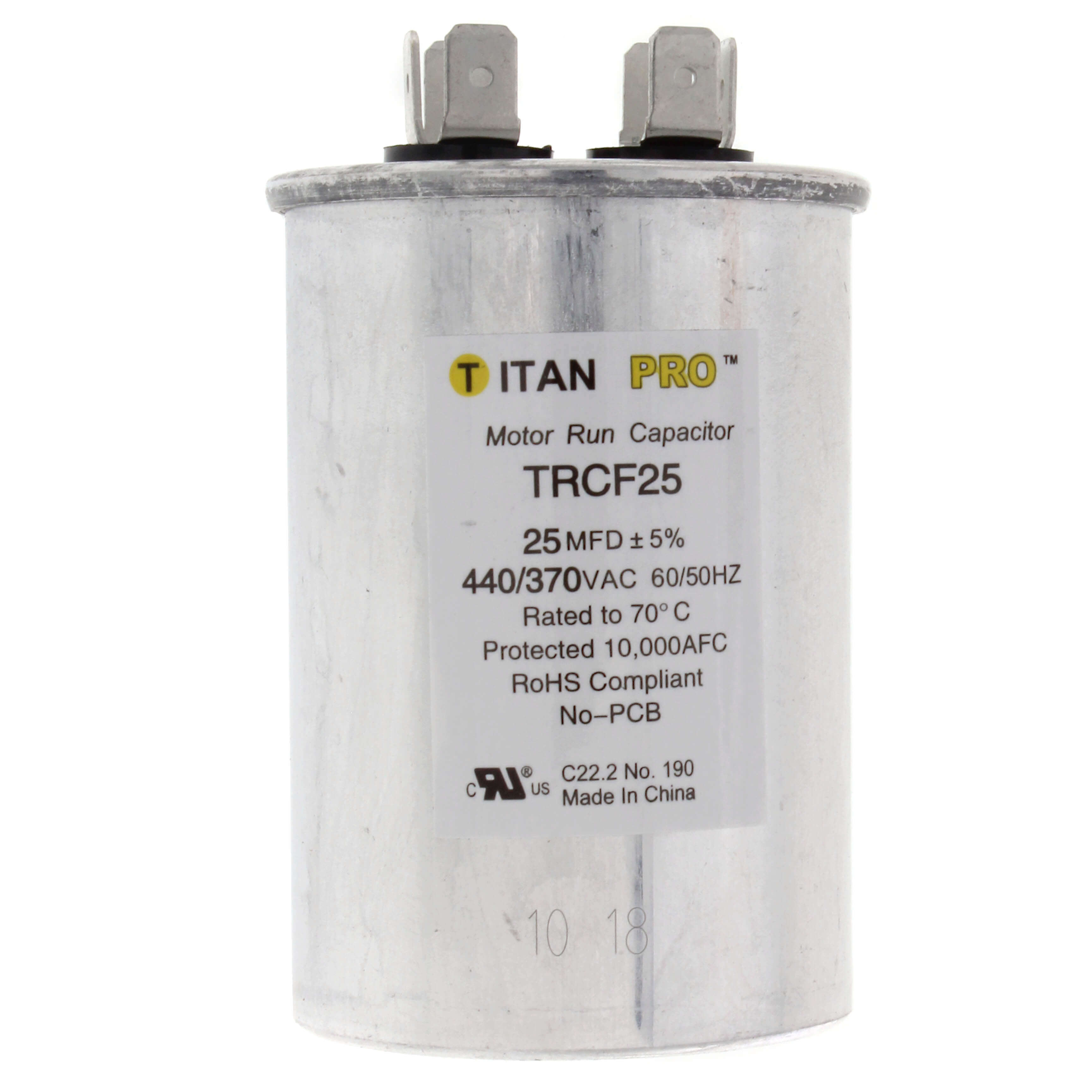

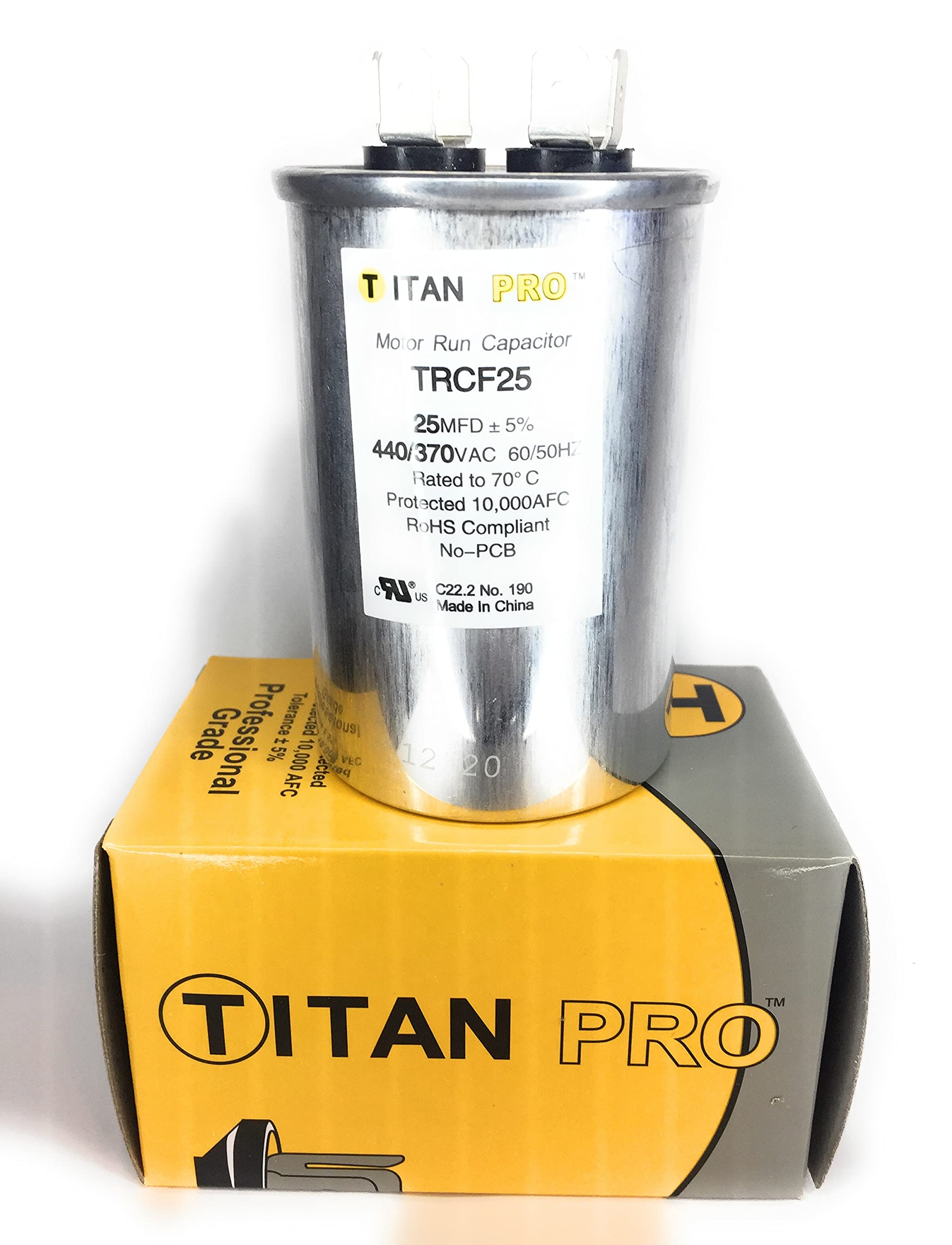

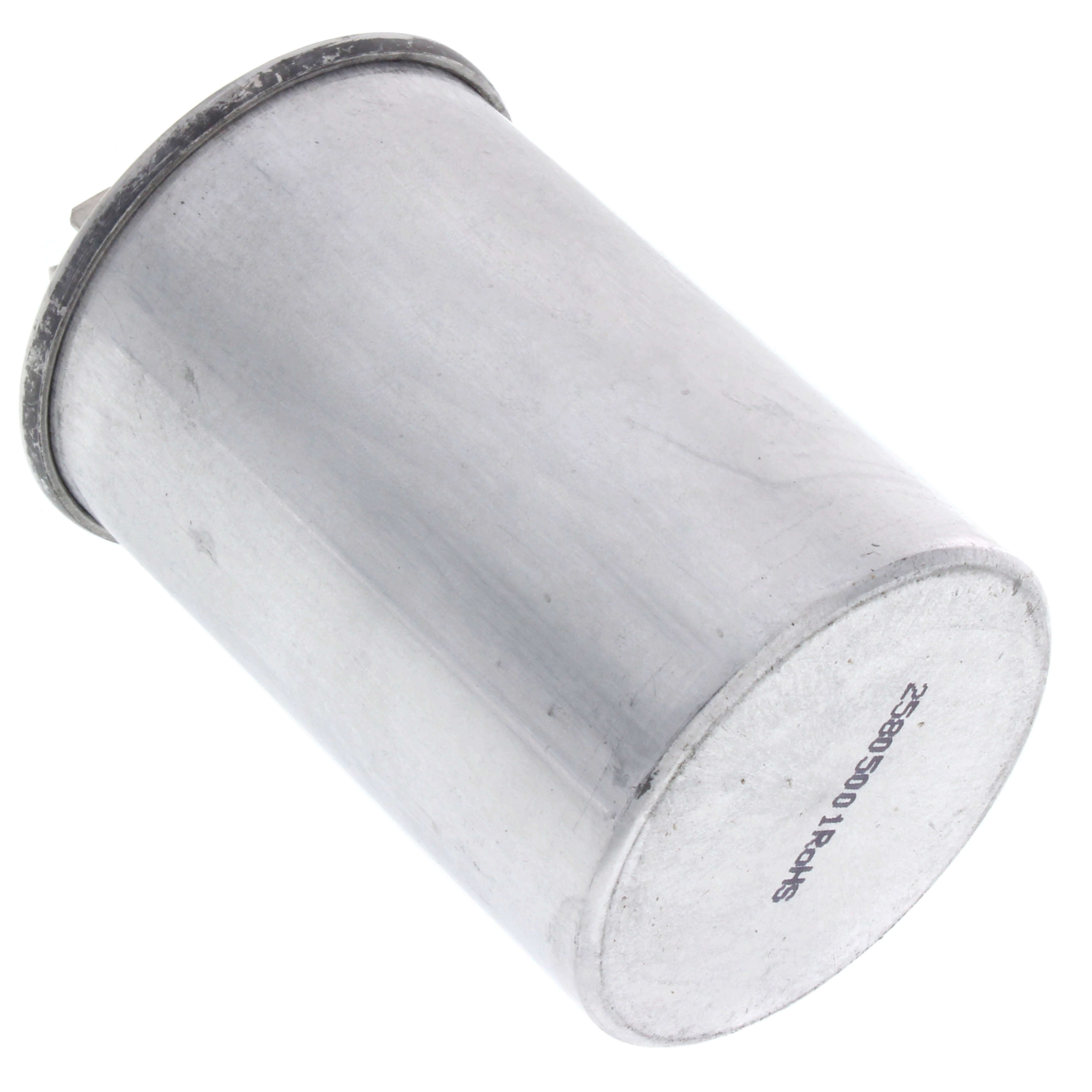

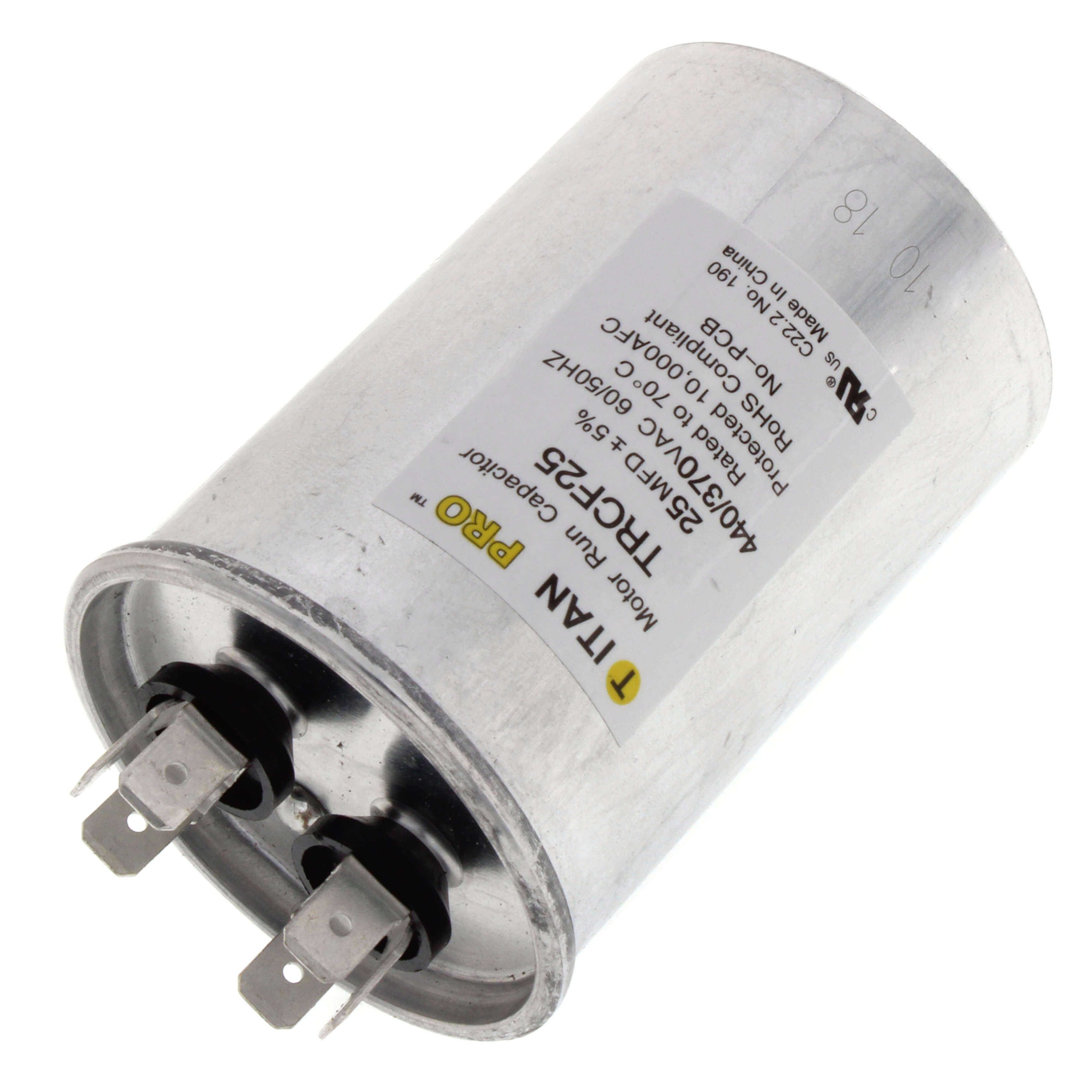

The TITAN PRO TRCF25 is a round motor run capacitor with a capacitance of 25 Microfarad and an operating voltage of 370-440VAC. Constructed with an aluminum case and steel cover, this capacitor is designed for AC motor applications and HVAC/Refrigerant systems. It operates reliably within a temperature range of -40 Degrees to 70 Degrees C.
- Capacitance of 25 Microfarad
- Operating voltage of 370-440VAC
- Operating temperature range of -40 Degrees to 70 Degrees C
Product Highlights
Durable motor run capacitor for AC motors, ensuring reliable performance in demanding conditions.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCF25
-
Country of Origin: China
Technical Specifications
-
Shape: Round
-
Material: Aluminum
-
Capacitance: 25 Microfarad
-
Maximum Voltage: 440 Volts
-
Operating Voltage: 440 Volts
-
Batteries Required?: No
-
Product Type: CAPACITOR
-
Brand: Titan Pro
-
MPN: TRCF25
-
Voltage: 440/370V AC
-
Hz: 60/50
-
Diameter: 1.96875
-
Case Height: 3.375
-
EIA UL Base: A
-
Terminal Type: 1/4" Male Quick-Connect
-
Temp. Range: -40 Degrees to 70 Degrees C
-
Case Material: Aluminum
-
Cover Material: Steel
-
Standards: UL Recognized (E185318)
-
Frequency: 60/50 Hz
-
IEC Standard: IEC 60252-1:2001
-
For Use With: Electric Motors
-
Capacitor Shape: Round
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Pieces: 1
-
Capacitor Voltage: 440/370V AC
-
Microfarad Rating: 25
-
EIA Tolerance Code: A
-
Terminal Tab Width: 0.25 in
-
Number of Terminals: 2
-
Motor Capacitor Type: Motor Run Capacitor
-
Terminal Designations: Standard
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
-
Type: Run Capacitor, 1-Section, Round
-
Used On: AC Motor
-
Mfd: 25
-
Volts: 440/370
