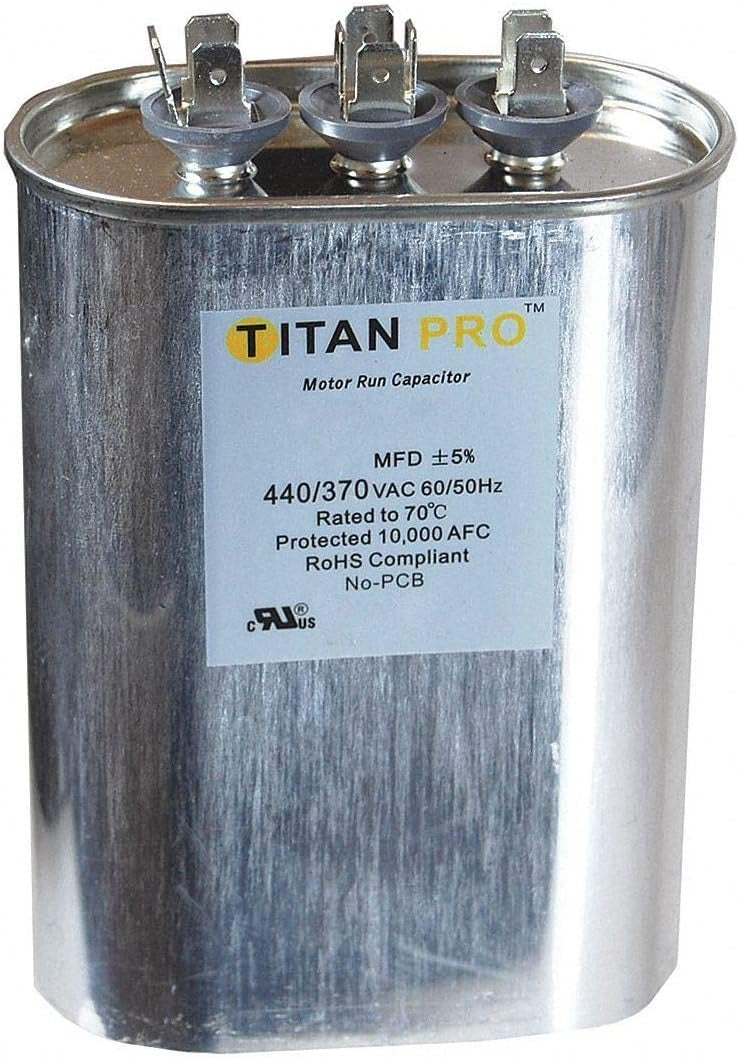

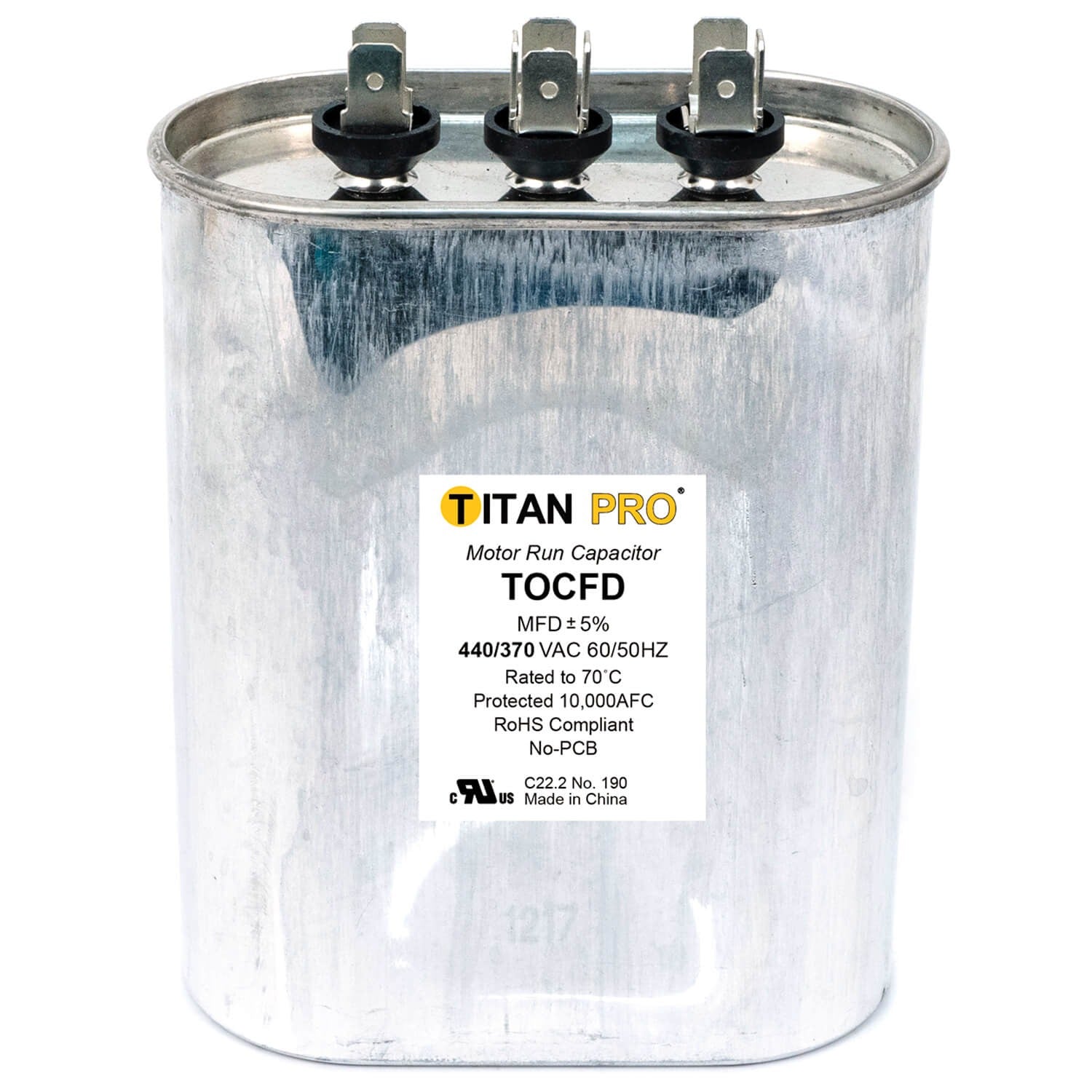

Titan Pro TOCFD353 Oval Motor Dual Run Capacitor 35/3 MFD (370-440 VAC)

Product Description

Titan Pro TOCFD353 is an oval dual motor run capacitor rated 35/3 MFD with an operating voltage range of 370-440 VAC and a maximum of 440 VAC. The aluminum-bodied capacitor is designed for motor and HVAC run applications and functions as a replacement component for compatible systems. It uses heavy-edged metallized polypropylene film dielectric, is 100% electrically tested, and has a specified operational life of 60,000 hours.

• Dual run capacitance: 35/3 MFD for motor and fan circuits
• Voltage rating: 370-440 VAC (maximum 440 VAC) in an oval aluminum enclosure
• Dielectric and testing: heavy-edged metallized polypropylene film; 100% electrical testing; second-generation anti-explosion safety switch; 60,000 hours operational life

Product Highlights

Oval aluminum dual motor run capacitor, 35/3 MFD, 370-440 VAC; metallized polypropylene dielectric; 100% tested and 60,000-hour operational life; compliant with EIA-456-A and IEC 60252-1:2001.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCFD353
