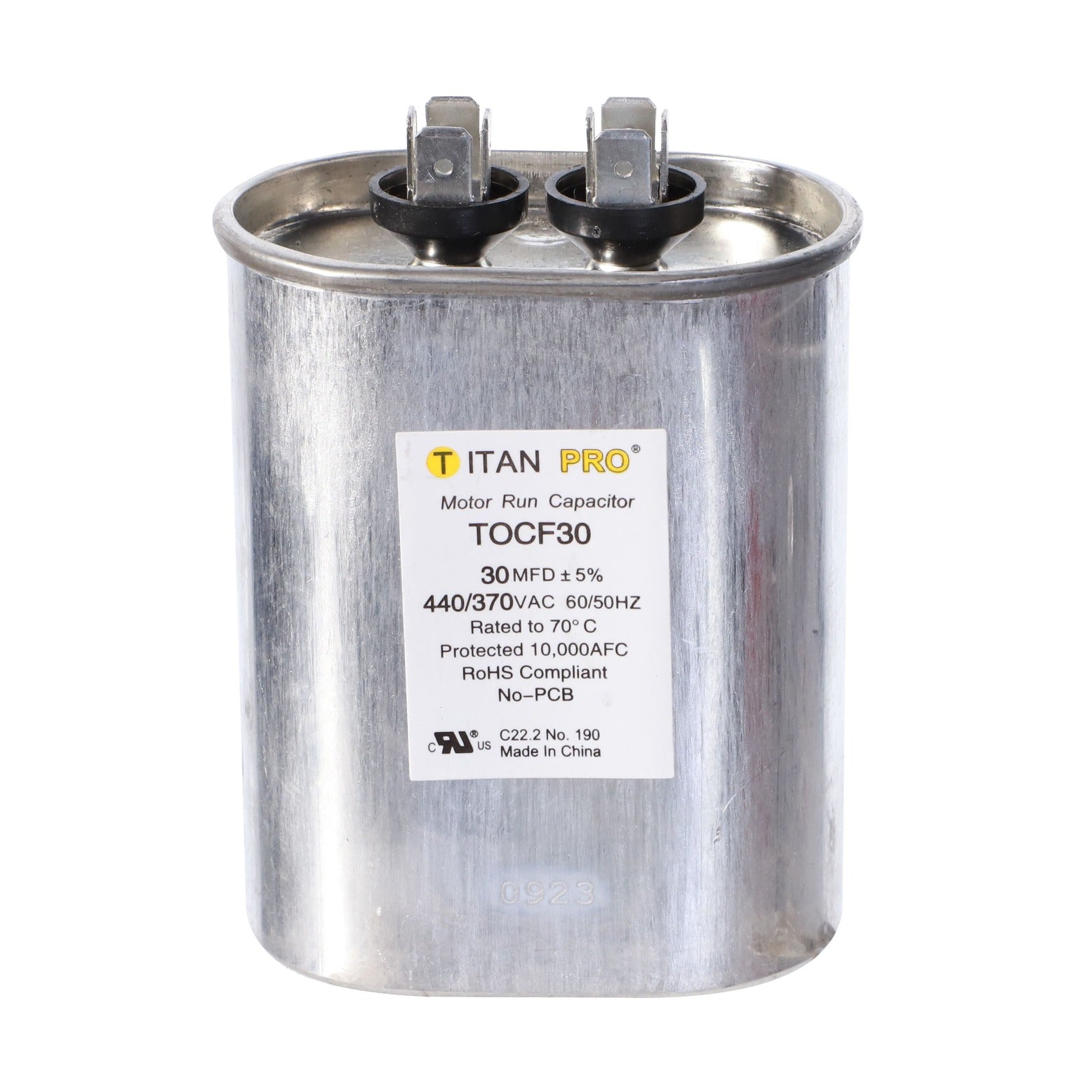

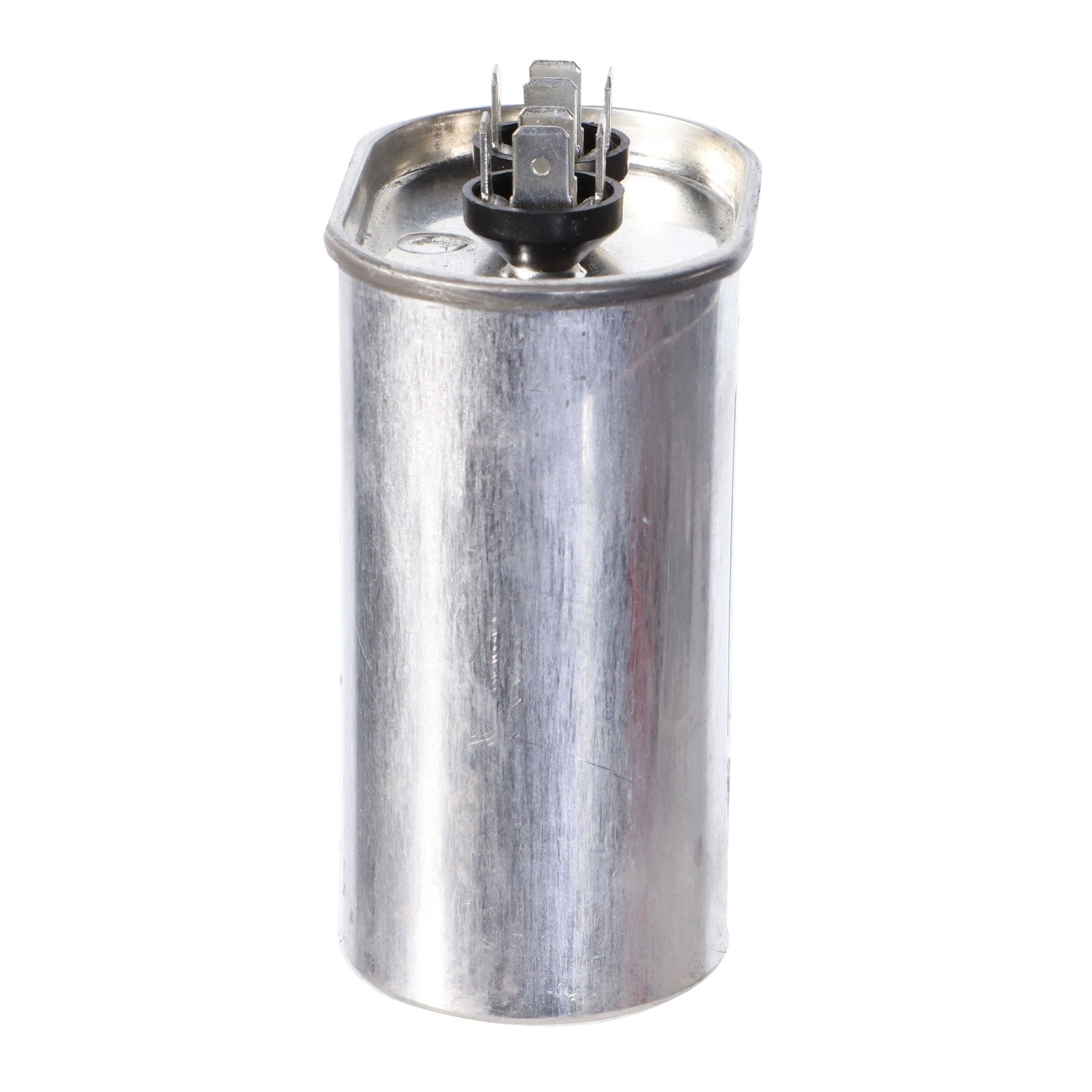

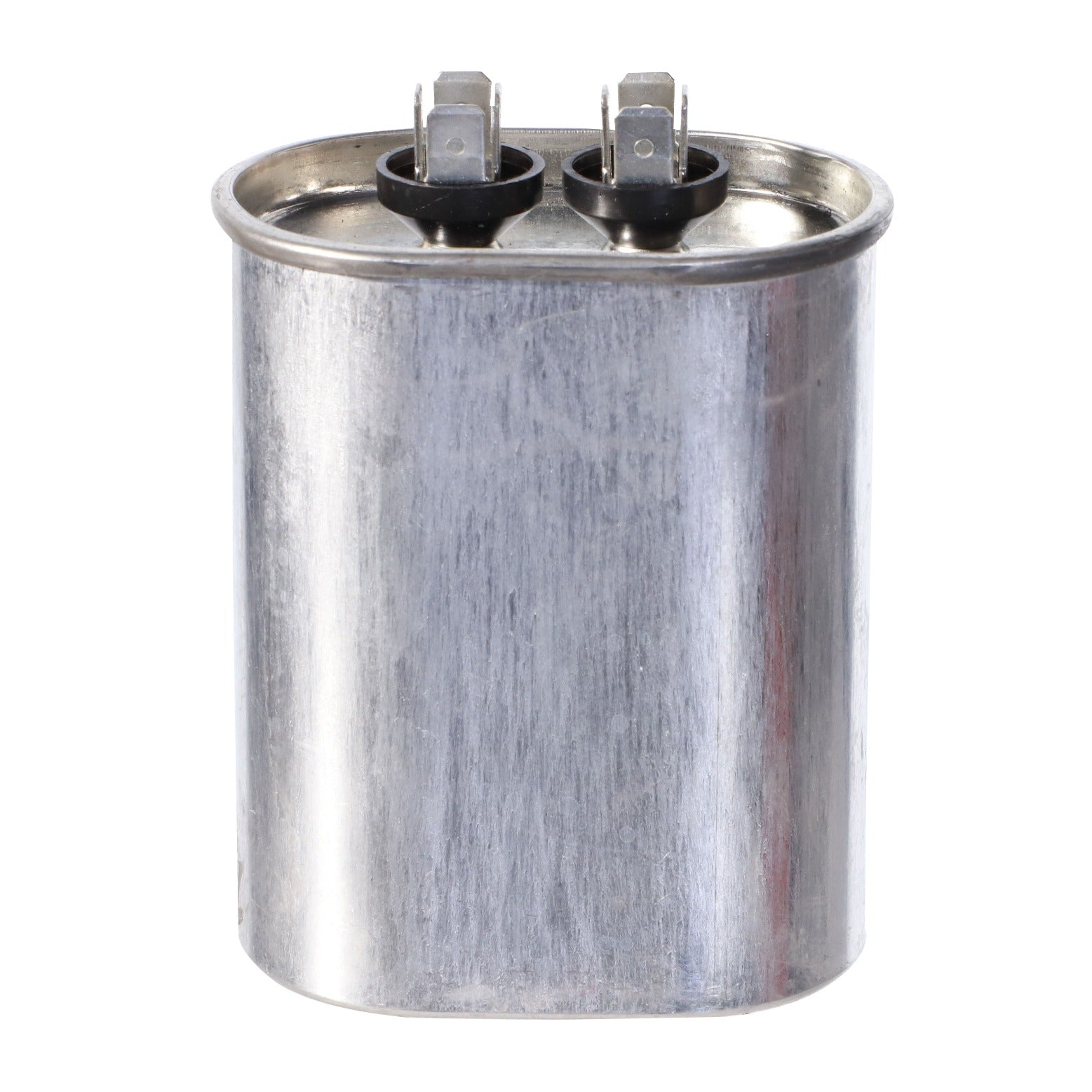

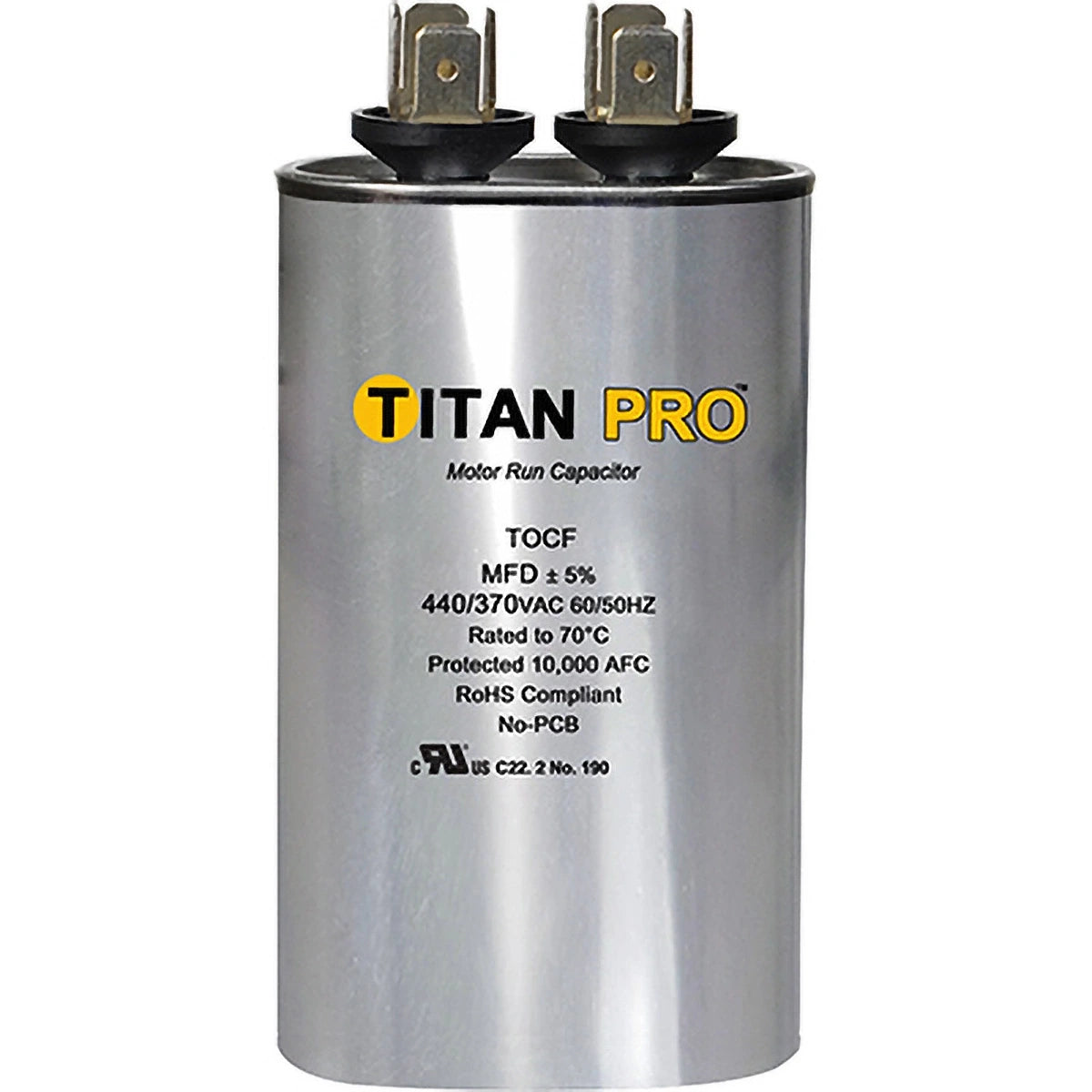

Titan Pro TOCF30 Motor Run Capacitor 30 Microfarad (Oval) POCF30

Product Description

Titan Pro TOCF30 is an oval motor run capacitor rated 30 microfarad for 370-440 VAC operation at 50/60 Hz, intended for motor run and HVAC applications. The aluminum can with steel cover contains a metalized polypropylene film dielectric and proprietary biodegradable oil, and provides two 1/4 in male quick-connect terminals. The unit is UL recognized (E185318), meets IEC and EIA standards, and operates from -40 to 70 C with a long operational life.

• 30 microfarad capacitance; voltage rating 370-440 VAC (max 440 V); frequency 50/60 Hz; tolerance +/-5%
• Oval aluminum case with steel cover; overall height 3-15/16 in, width 2-3/4 in, depth 1-3/4 in; two 1/4 in male quick-connect terminals; EIA/UL base C
• Standards: UL Recognized (E185318), IEC 60252-1:2001, EIA-456-A; operating temperature -40 to 70 C; operational life ~60,000 hours; proprietary biodegradable oil; metalized polypropylene dielectric

Product Highlights

30 microfarad oval motor run capacitor rated 370-440 VAC with 1/4 in quick-connect terminals, -40 to 70 C operating range, and UL/IEC/EIA compliance.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCF30
• Country of Origin: China
