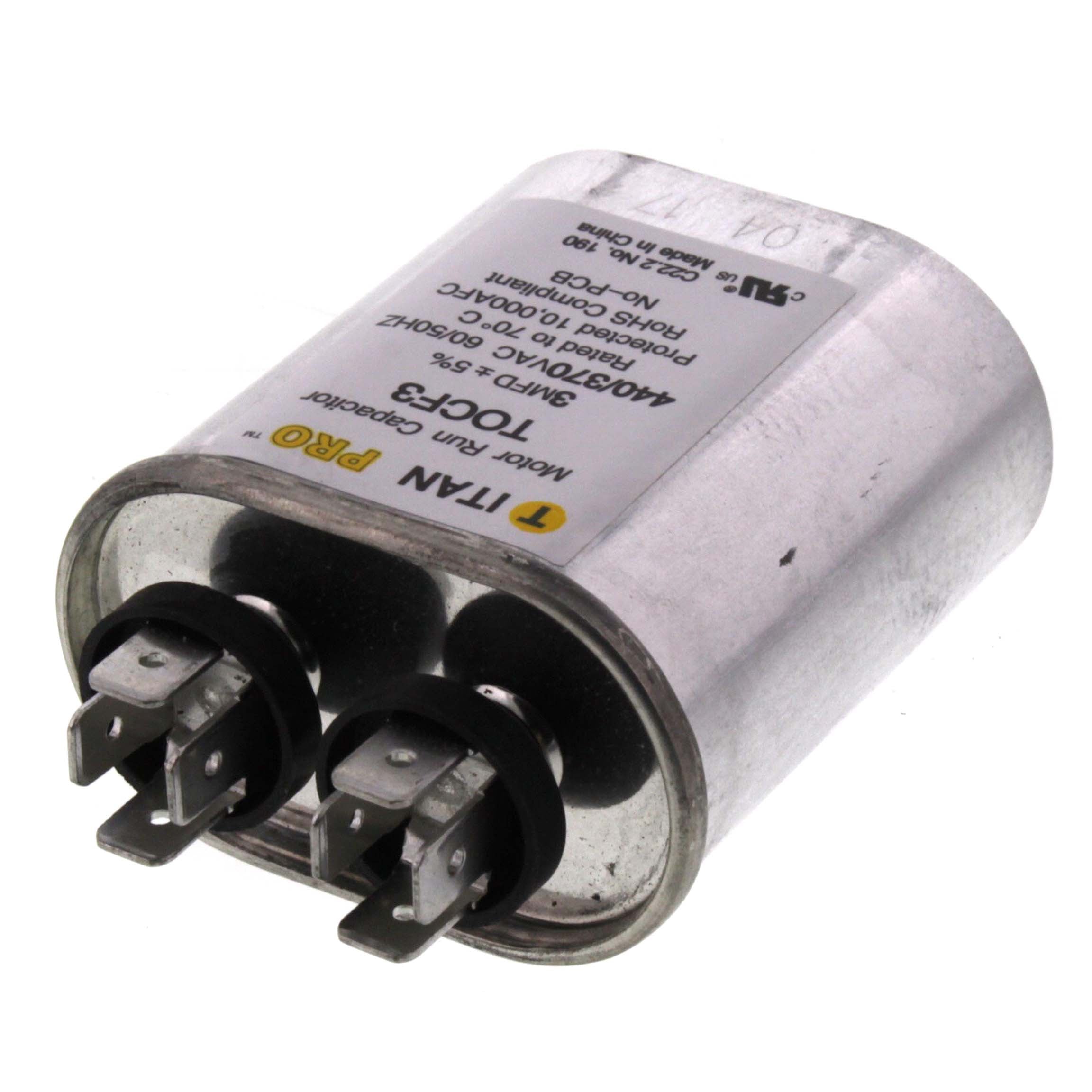

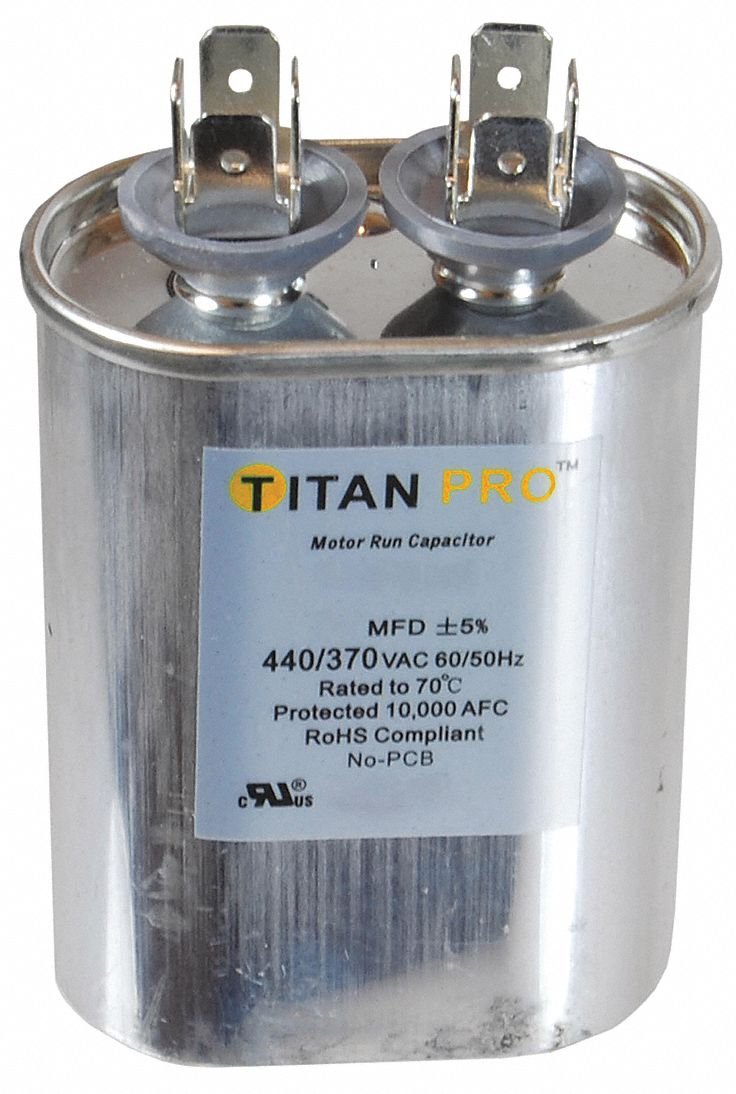

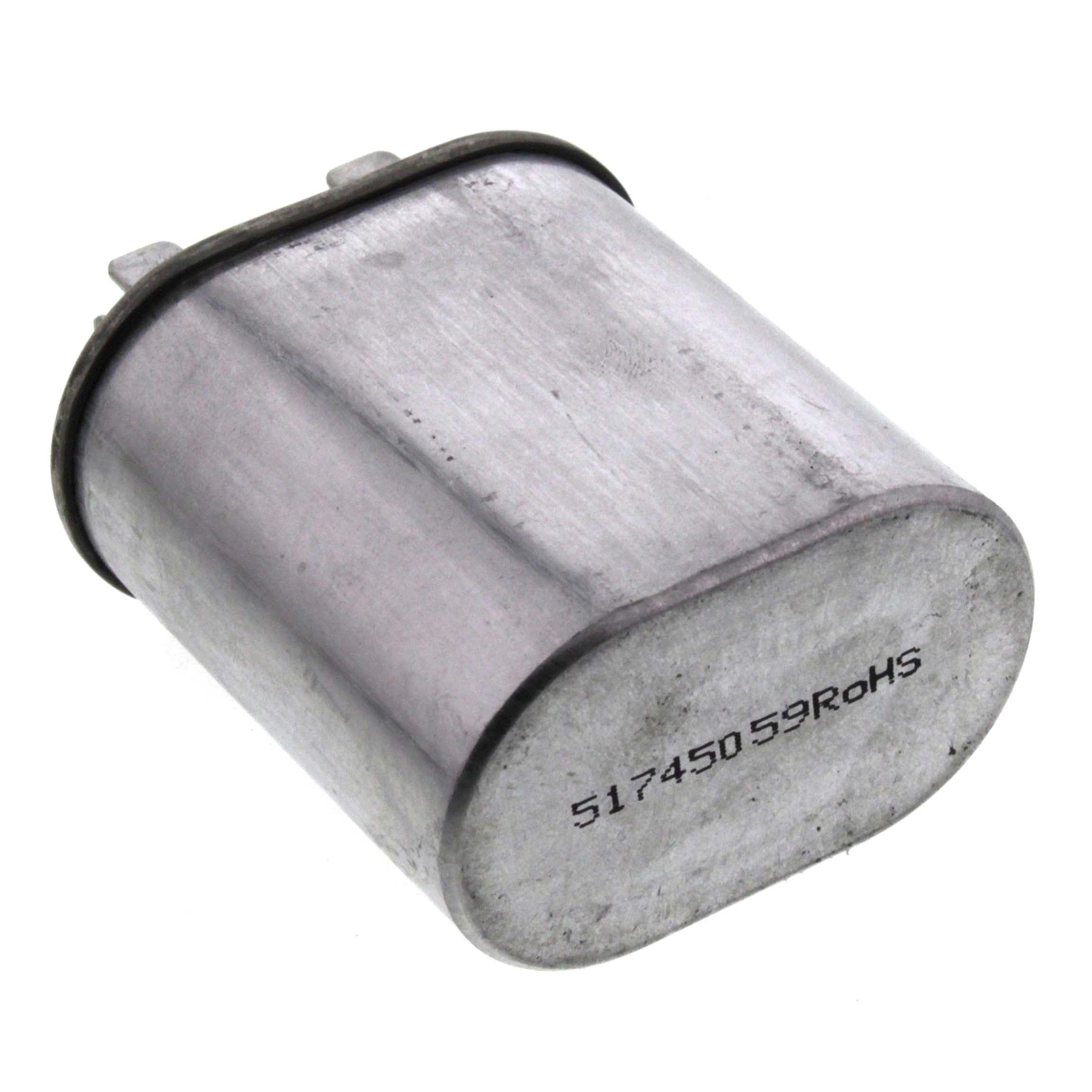

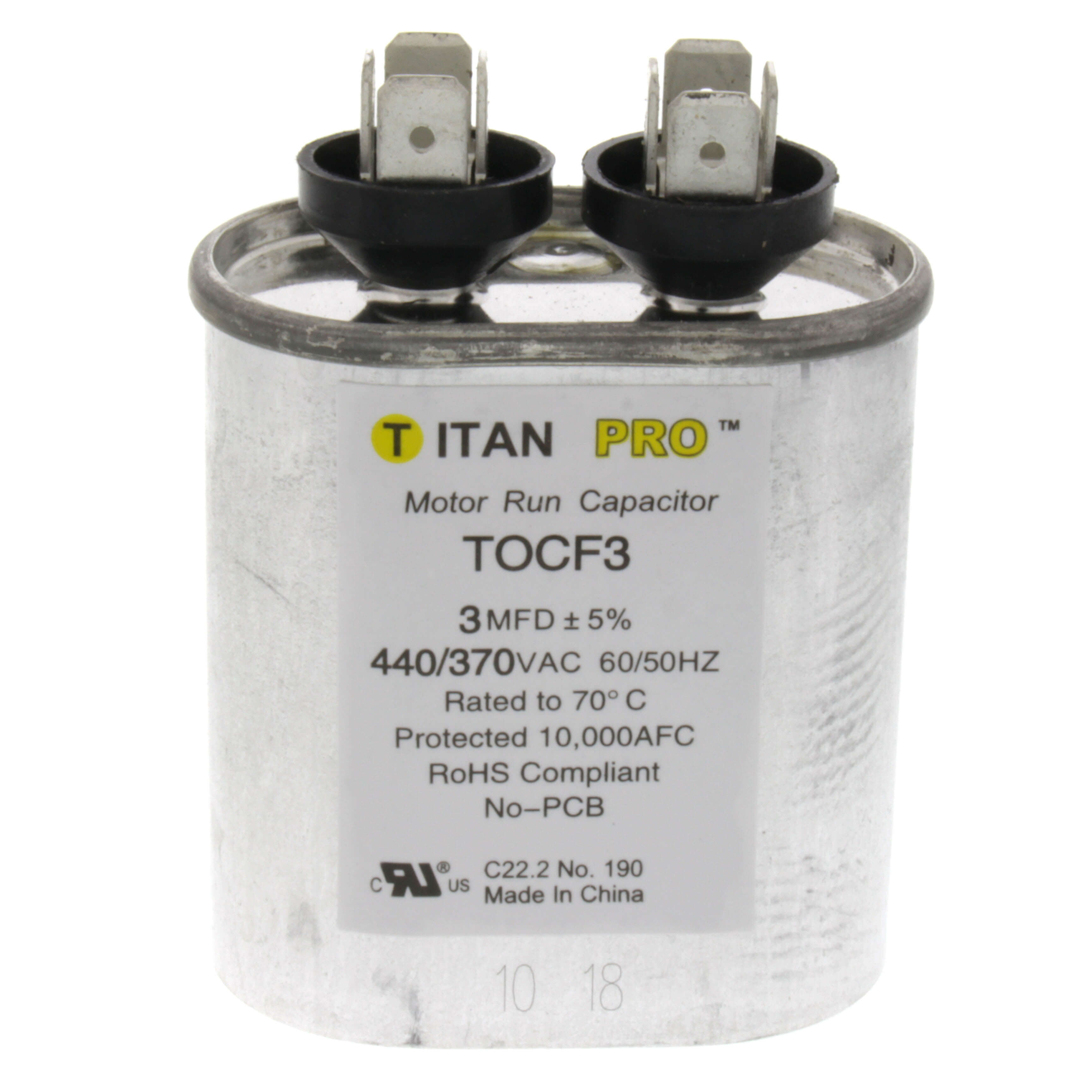

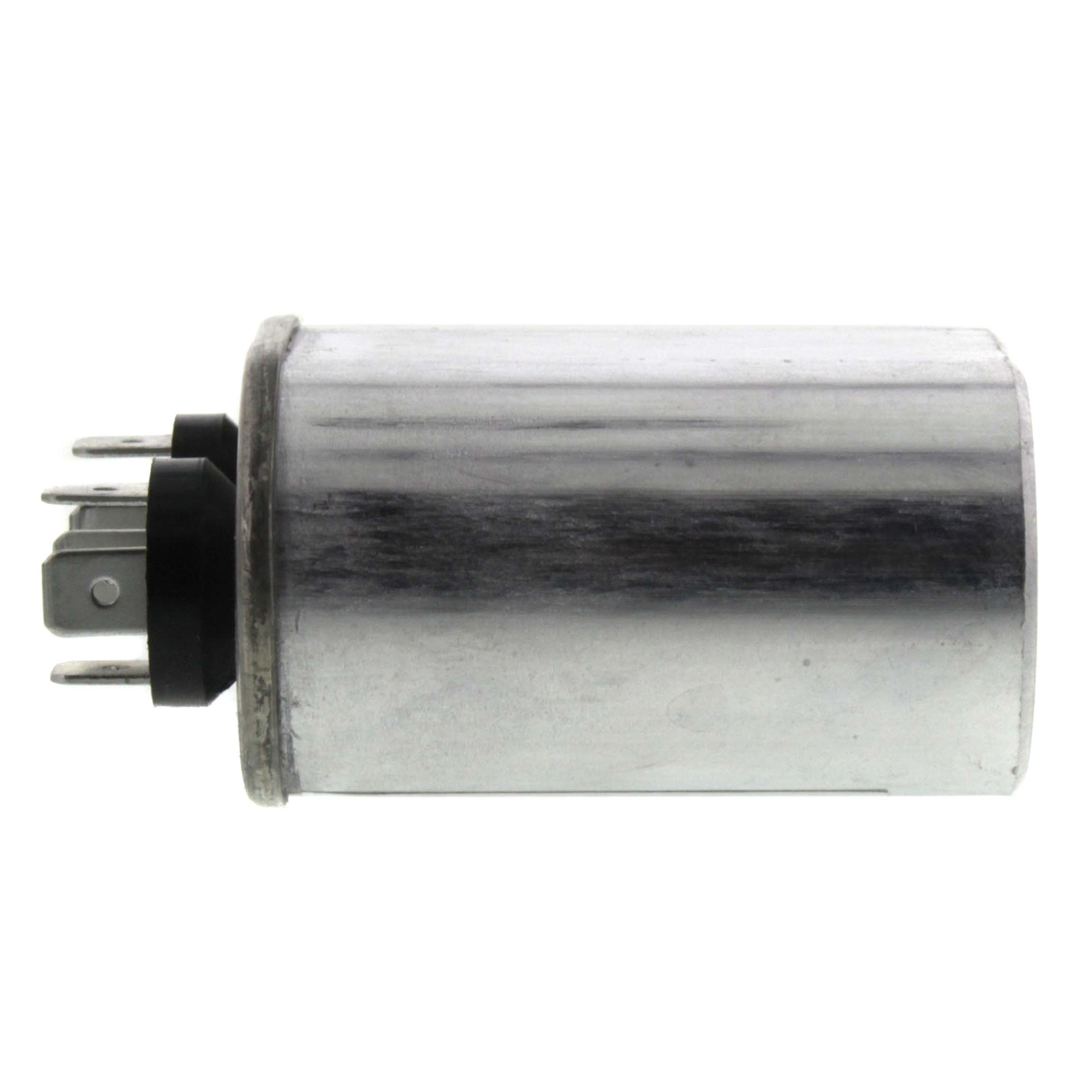

Titan Pro TOCF3 Motor Run Capacitor, 3 MFD, 2-3/4 in. H

Product Description

The TITAN PRO TOCF3 is a motor run capacitor with a 3 MFD rating and a voltage of 370-440VAC. This oval-shaped capacitor is constructed with an aluminum case and steel cover. It is suitable for use with equipment such as air conditioners and refrigeration equipment. It has an operational life of 60,000 hours.

• Voltage: 370-440VAC
• Capacitance: 3 Microfarad
• Temperature Range: -40 Degrees to 70 Degrees C

Product Highlights

The TITAN PRO TOCF3 motor run capacitor is designed for AC motors and HVAC/Refrigeration applications. It features a heavy-edged metalized polypropylene film and a second-generation anti-explosion safety switch.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCF3

Technical Specifications

• Shape: Oval
• Material: Aluminum
• Capacitance: 3 Microfarad
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• Capacitor Voltage: 370-440VAC
• Frequency: 60/50 Hz
• Case Height: 1-9/16 In.
• Overall Height: 2-3/4 In.
• Overall Width: 2 In.
• Overall Depth: 1-1/4 In.
• EIA UL Base: A
• Terminal Type: 1/4 In. Male Quick-Connect
• Temperature Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• MFD: 3
• Voltage: 440/370V
• Product Type: Capacitor
• Type: Run Capacitor, 1-Section, Oval
• Used On: AC Motor
