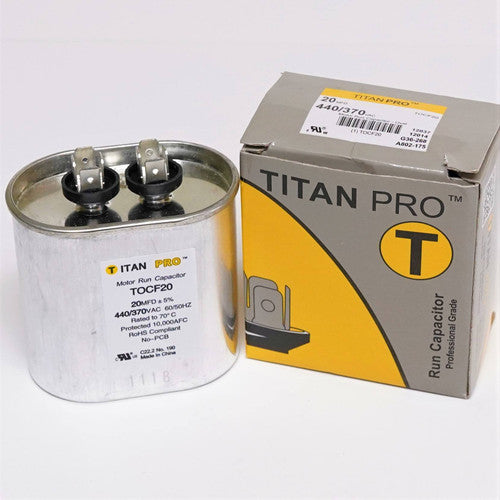

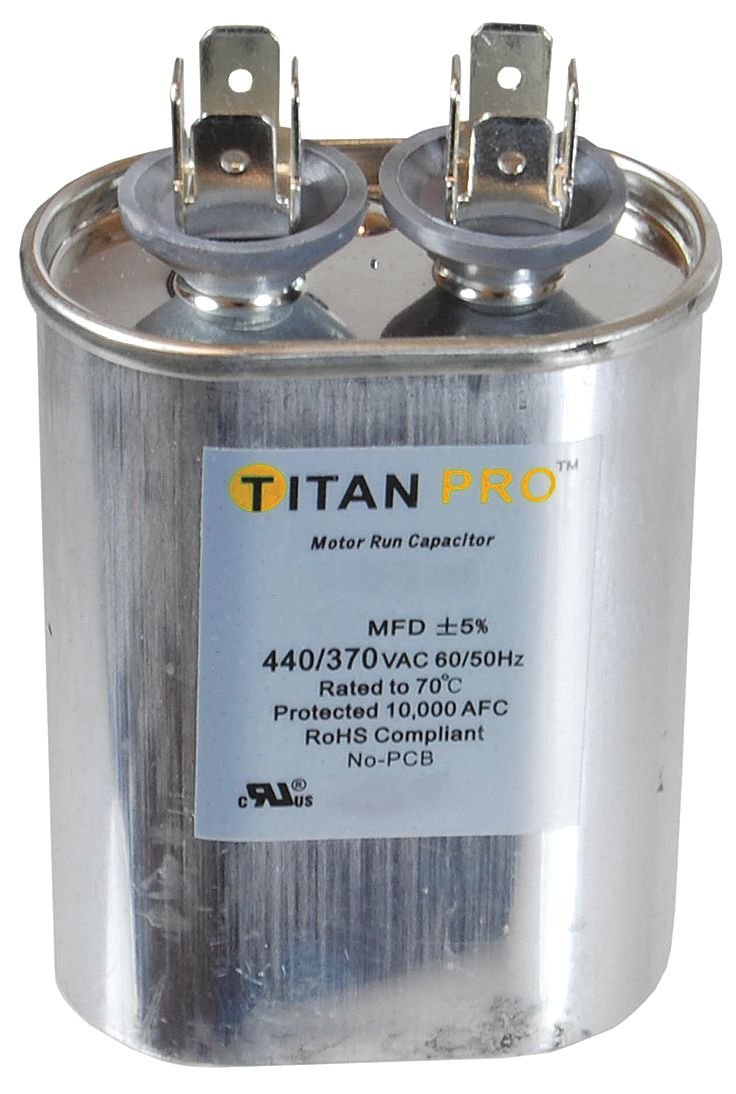

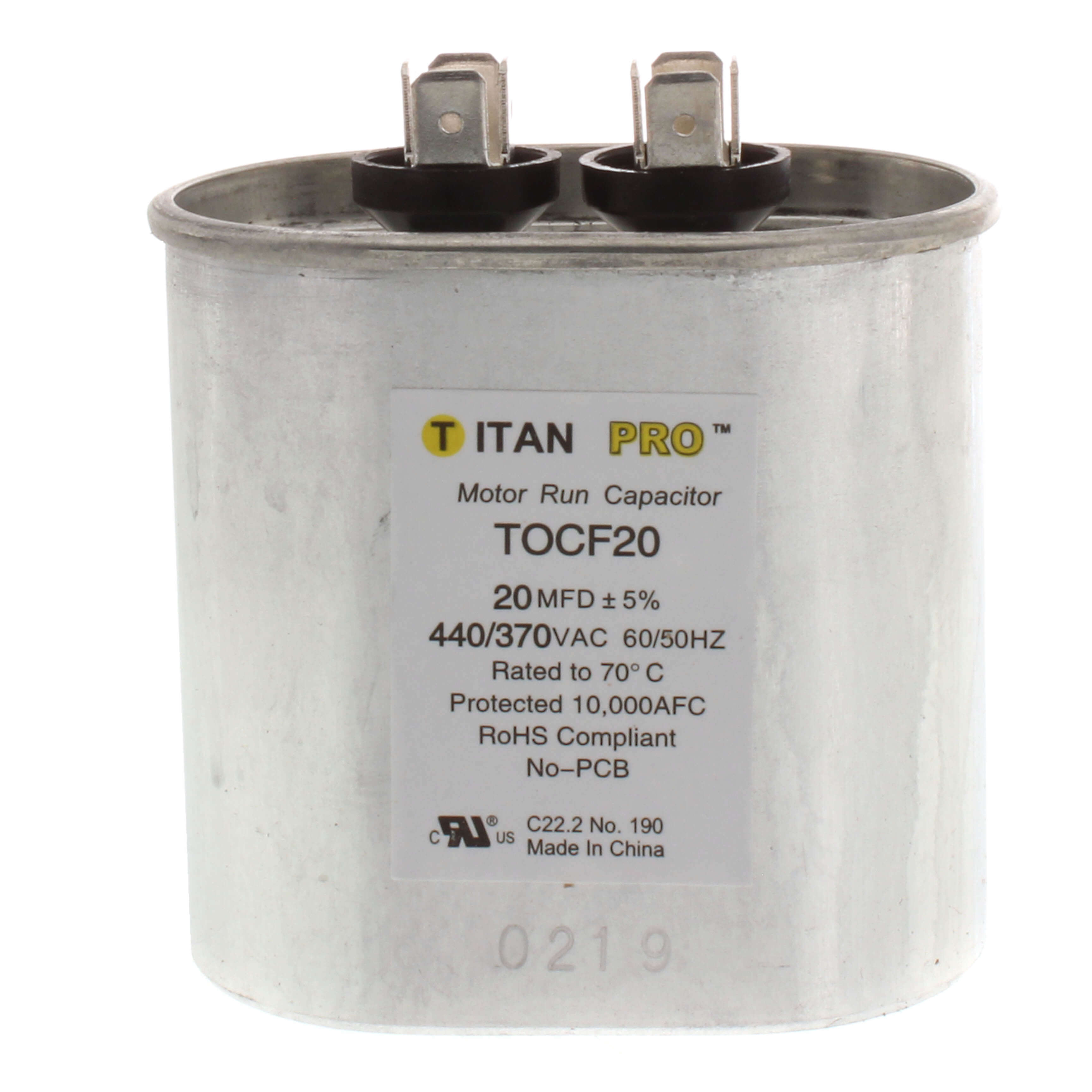

Titan Pro TOCF20 Motor Run Capacitor, 20 MFD, 3-3/16 in. H

Product Description

The TITAN PRO TOCF20 motor run capacitor features a 20 microfarad rating and is designed for 370-440V voltage applications. This capacitor has an oval shape and operates at 60/50 Hz. It is constructed with an aluminum case and steel cover, suitable for temperatures ranging from -40 to 70 degrees C.

• Microfarad Rating: 20 MFD
• Voltage: 370-440VAC
• Operating Temperature: -40 Degrees to 70 Degrees C

Product Highlights

This motor run capacitor is UL Recognized and features a 1/4" male quick-connect terminal type.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCF20
• Country of Origin: China

Technical Specifications

• Microfarad Rating: 20
• Capacitor Voltage: 370-440VAC
• Hz: 60/50
• Capacitor Shape: Oval
• Overall Height: 3-3/16"
• Overall Width: 2-3/4"
• Overall Depth: 1-3/4"
• EIA UL Base: C

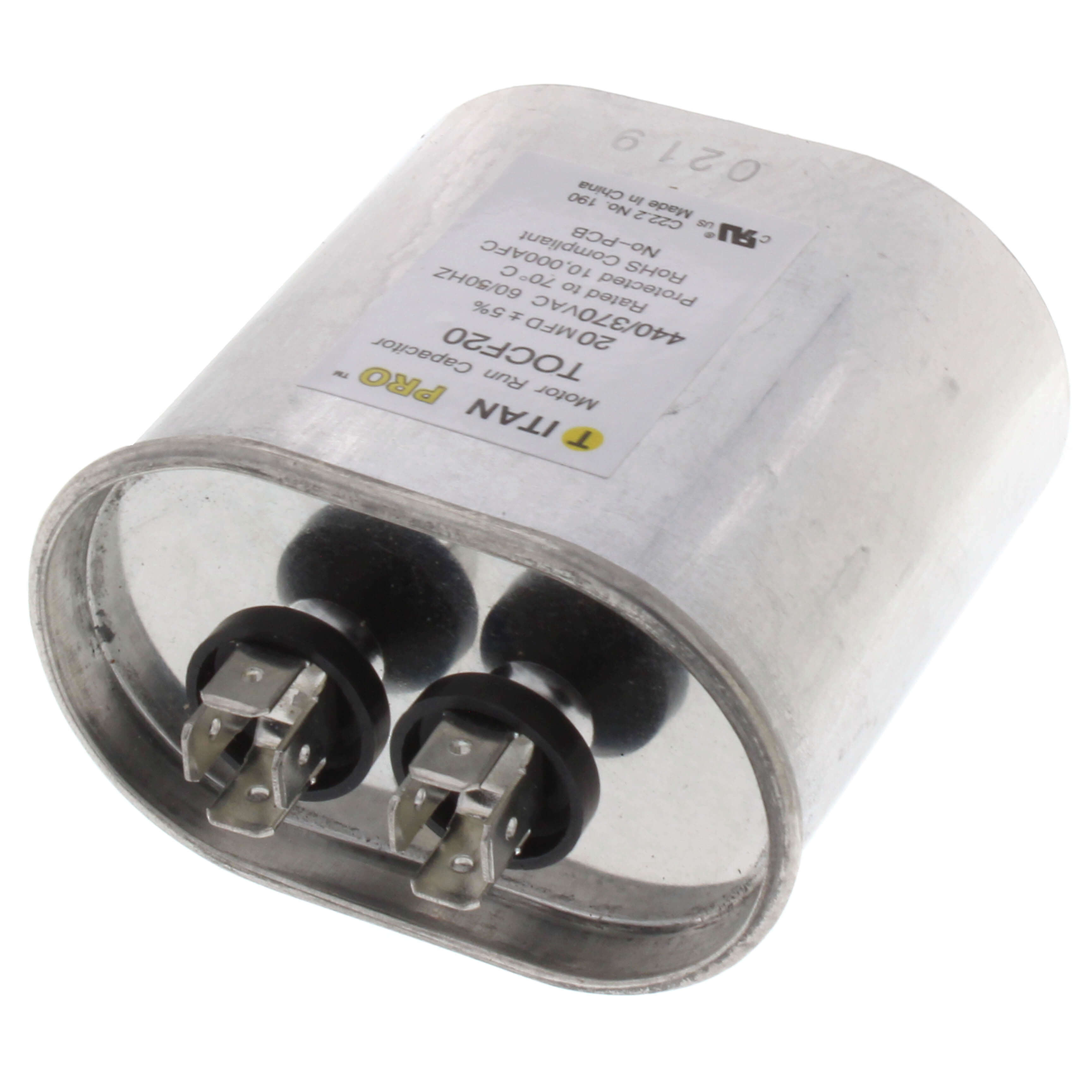

• Terminal Type: 1/4" Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C

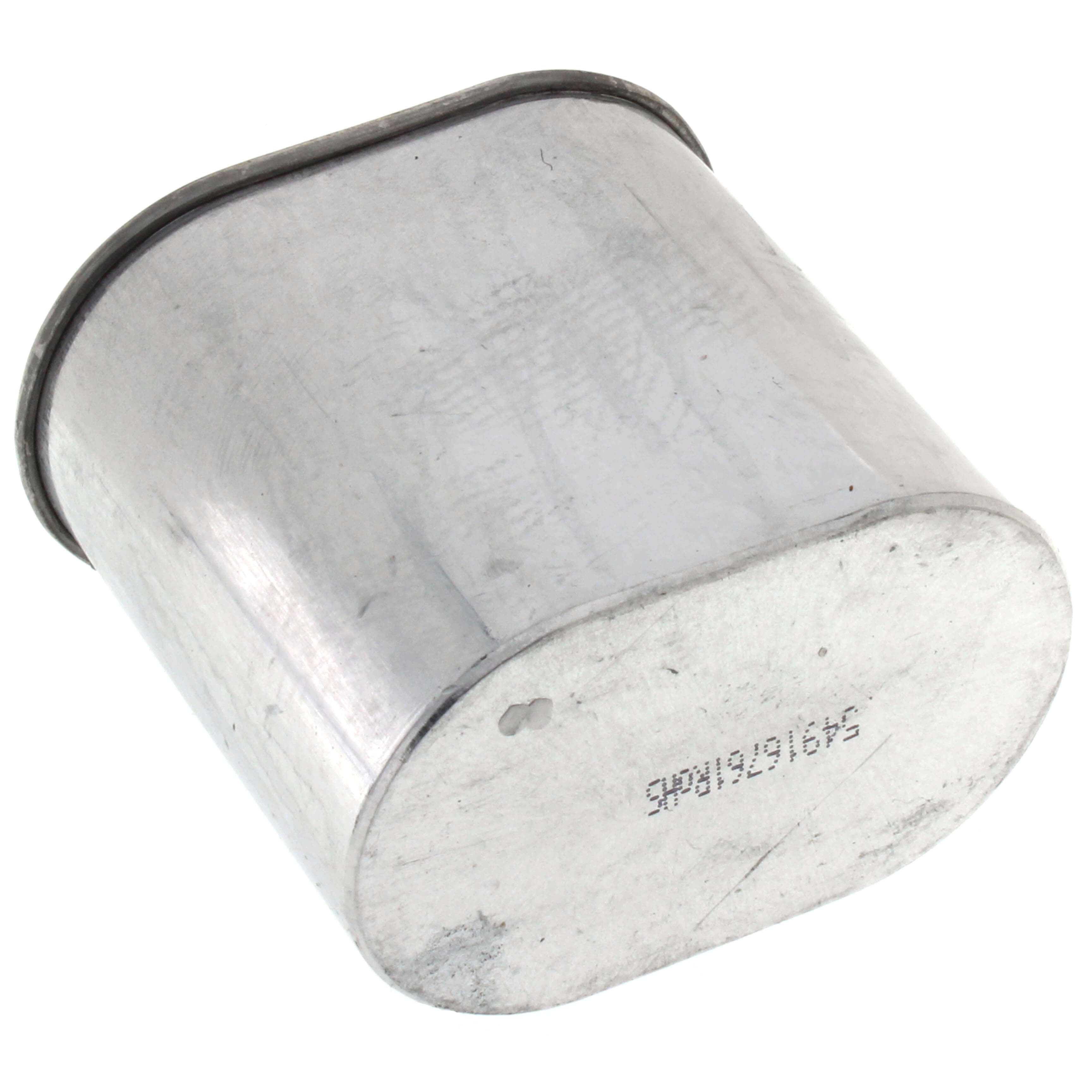

• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Motor Capacitor Type: Motor Run Capacitor
• MFD: 20
• Voltage: 440/370V
• Depth (Inches): 1.77"
• Width (Inches): 2.80"
• Height (Inches): 2.68"
• Diameter (Inches): 2.68"
• Frequency: 60/50 Hz
• For Use With: Electric Motors
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• EIA Tolerance Code: A
• Terminal Tab Width: 1/4 in
• Number of Terminals: 2
• Terminal Designations: Standard
• Capacitance: 20 UF
• Shape: Oval
• Temperature Rating: -40 to 70
