Titan Pro TOCF15 Motor Run Capacitor 15 Microfarad 370-440VAC

Product Description

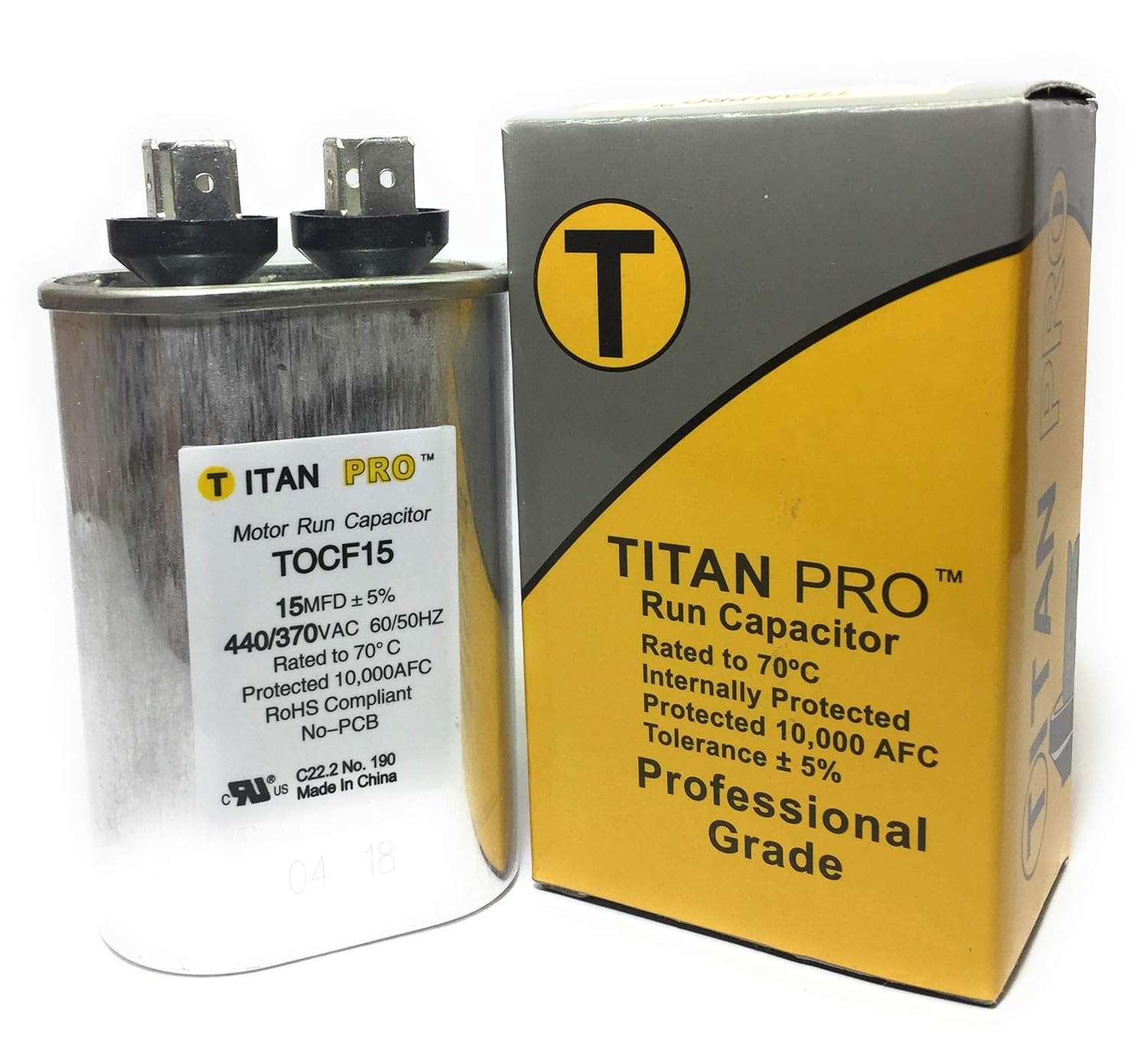

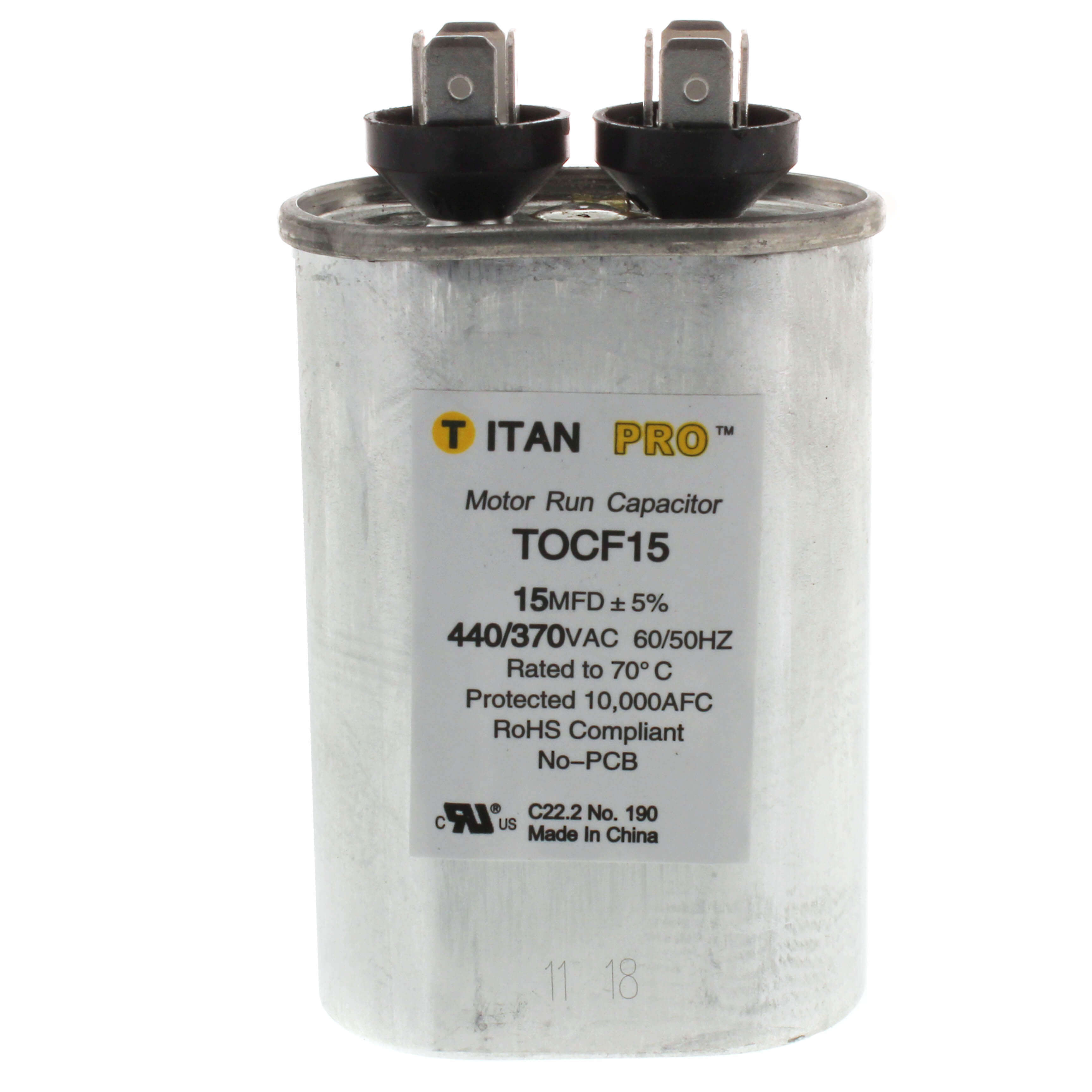

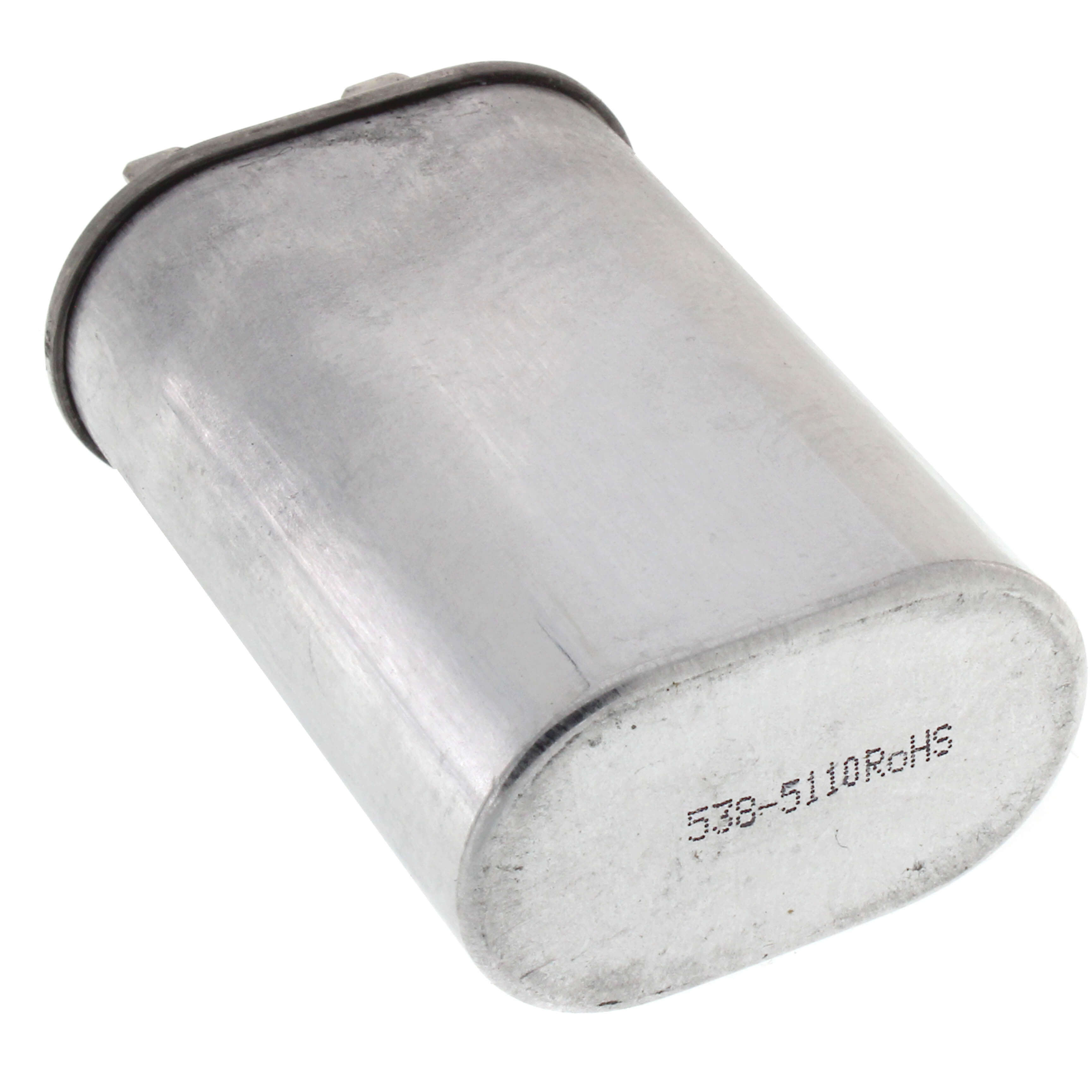

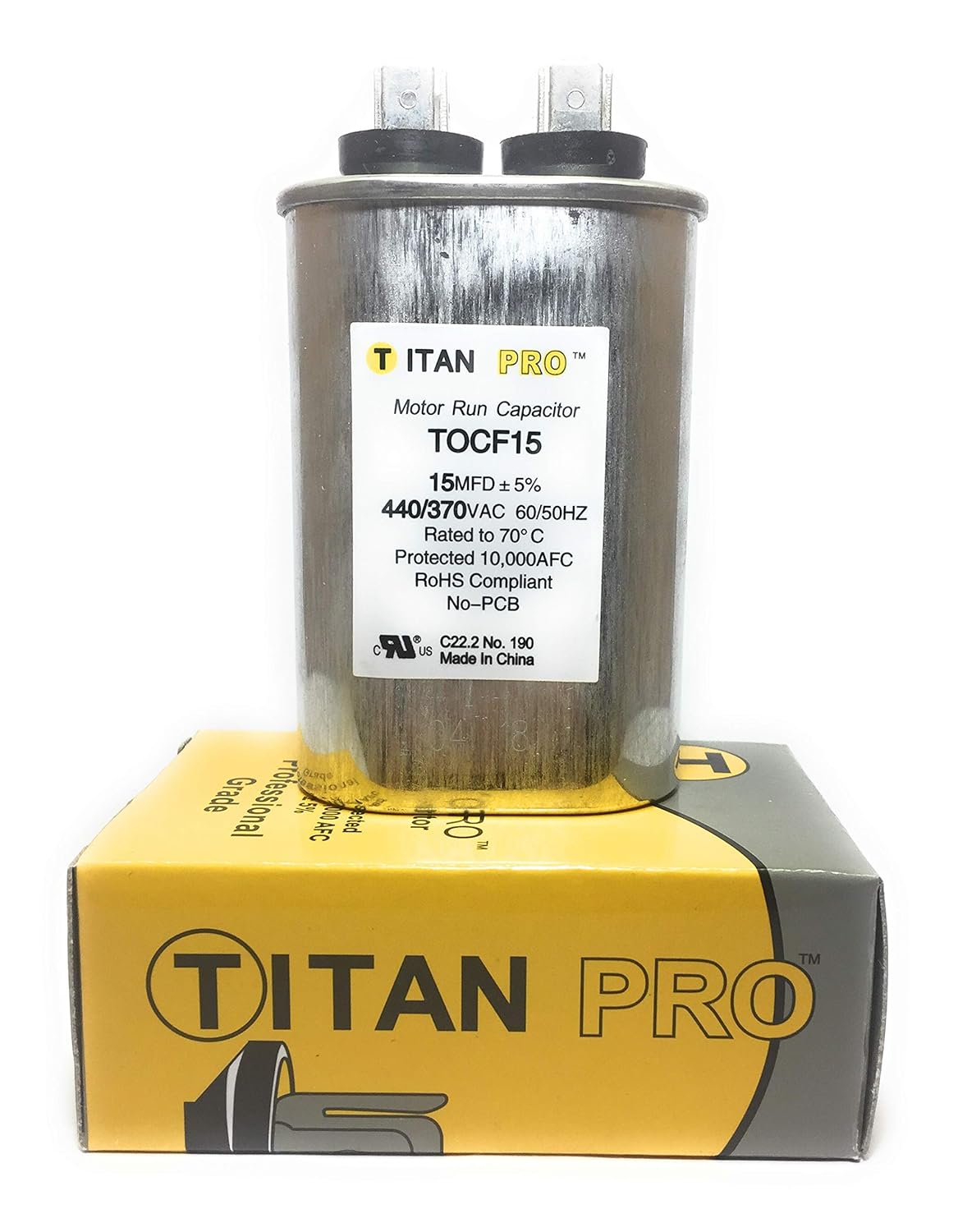

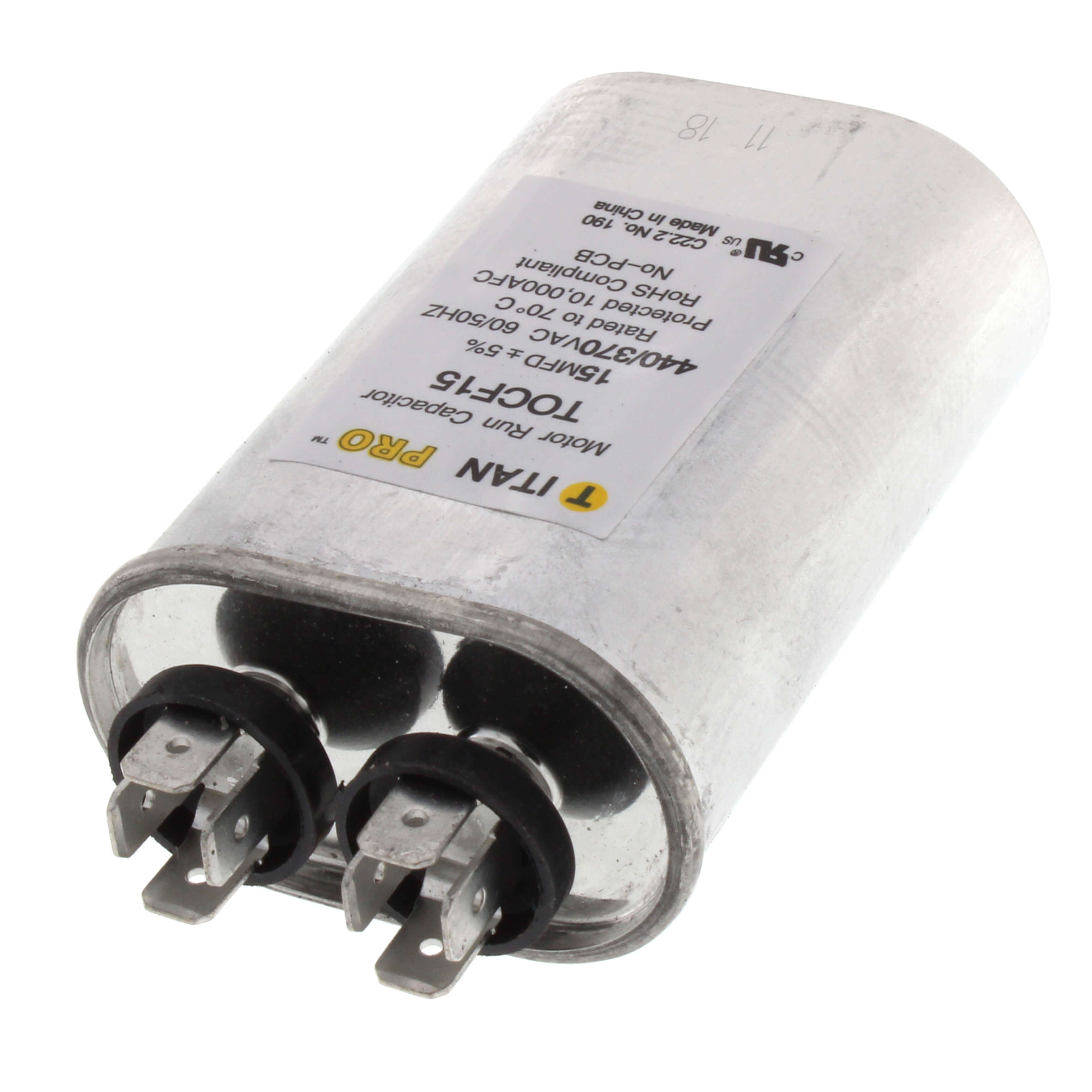

The TITAN PRO TOCF15 is an oval motor run capacitor with a 15 Microfarad rating and a voltage of 370-440VAC. Constructed with an aluminum case and steel cover, this capacitor is suitable for various motor applications. It operates within a temperature range of -40 to 70 degrees C. It meets UL Recognized (E185318) standards.

• Capacitance: 15 Microfarad
• Voltage: 370-440V
• Terminal Type: 1/4 In. Male Quick-Connect
• Operating frequency: 50/60 Hz

Product Highlights

This TITAN PRO capacitor ensures reliable motor operation with its robust design and adherence to industry standards.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCF15
• Country of Origin: China

Technical Specifications

• Shape: Oval
• Material: Aluminum
• Capacitance: 15 Microfarad
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• MPN: TOCF15
• Frequency: 60/50 Hz
• Case Height: 2.5 in
• Overall Height: 3.5625 in
• Overall Width: 2 in
• Overall Depth: 1.25 in
• Terminal Type: 1/4 In. Male Quick-Connect
• Temperature Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Item: Motor Run Capacitor
• Voltage Rating: 370/440 V
• Series: TOCF Series
• Tolerance: +/- 5%
• Brand: Titan Pro
• Type: Running Capacitor
• Country of Origin: China
