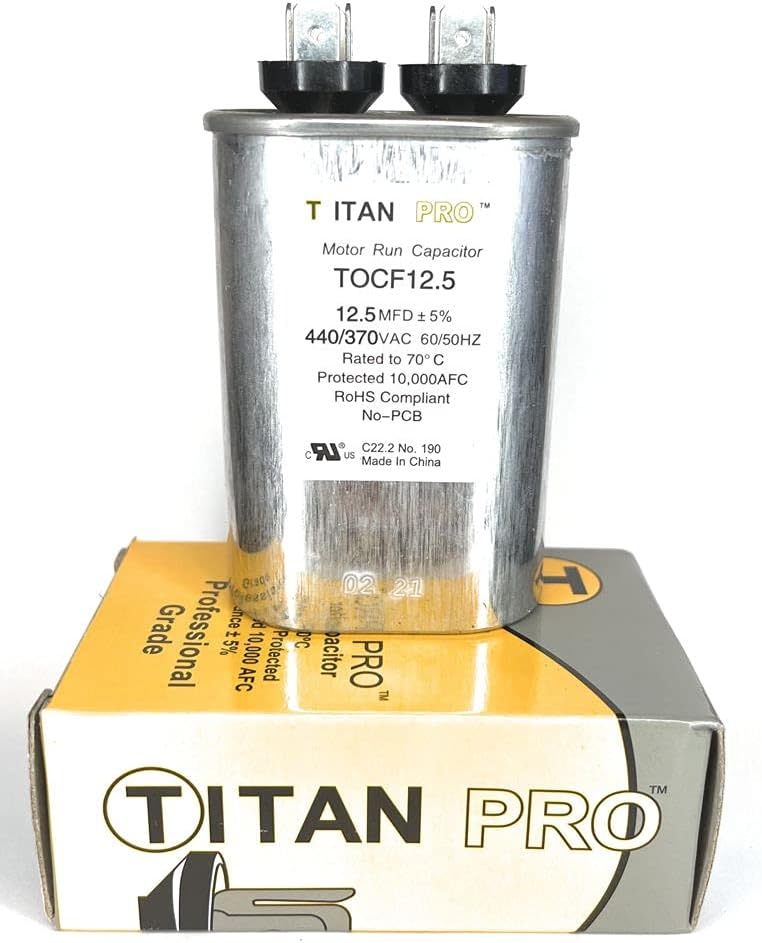

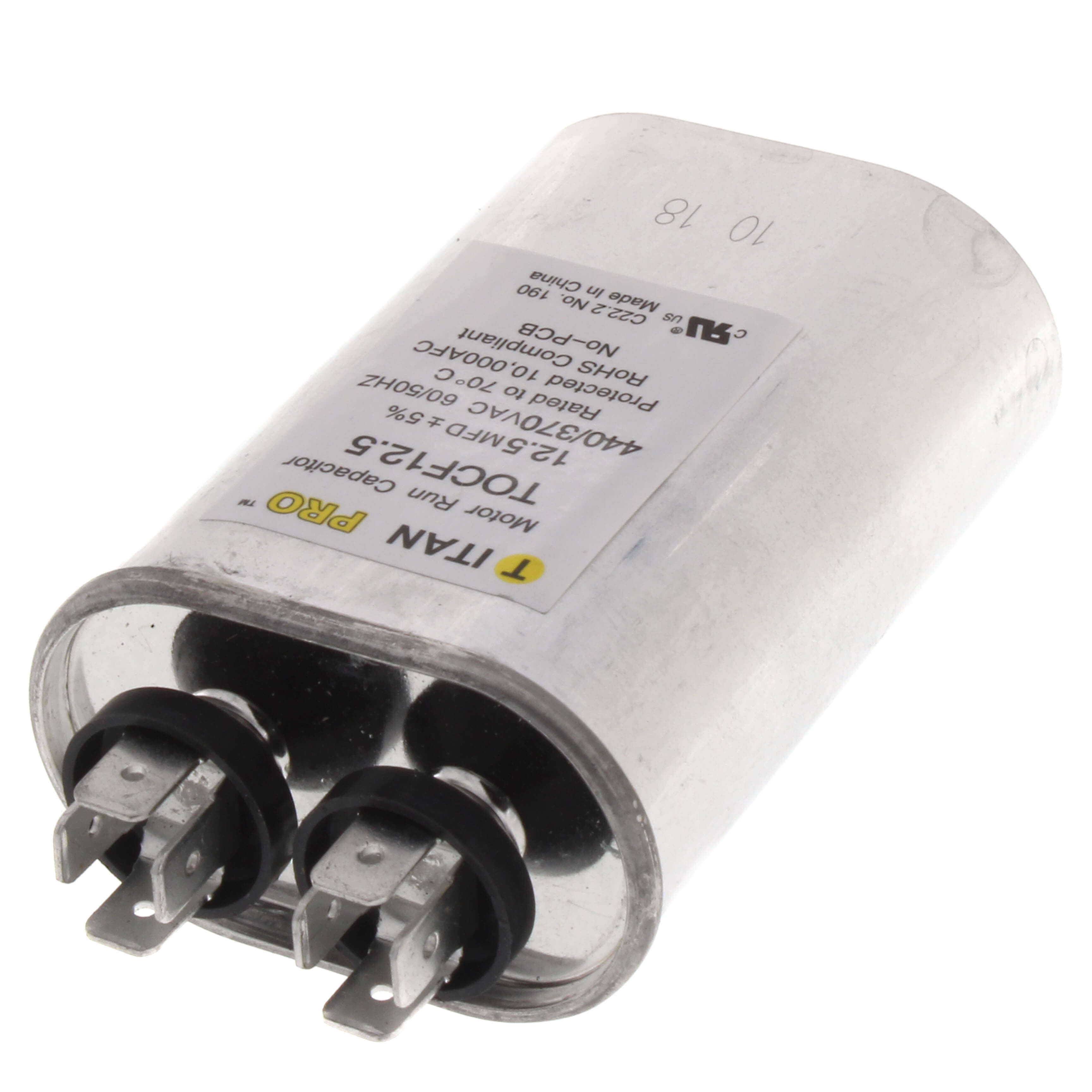

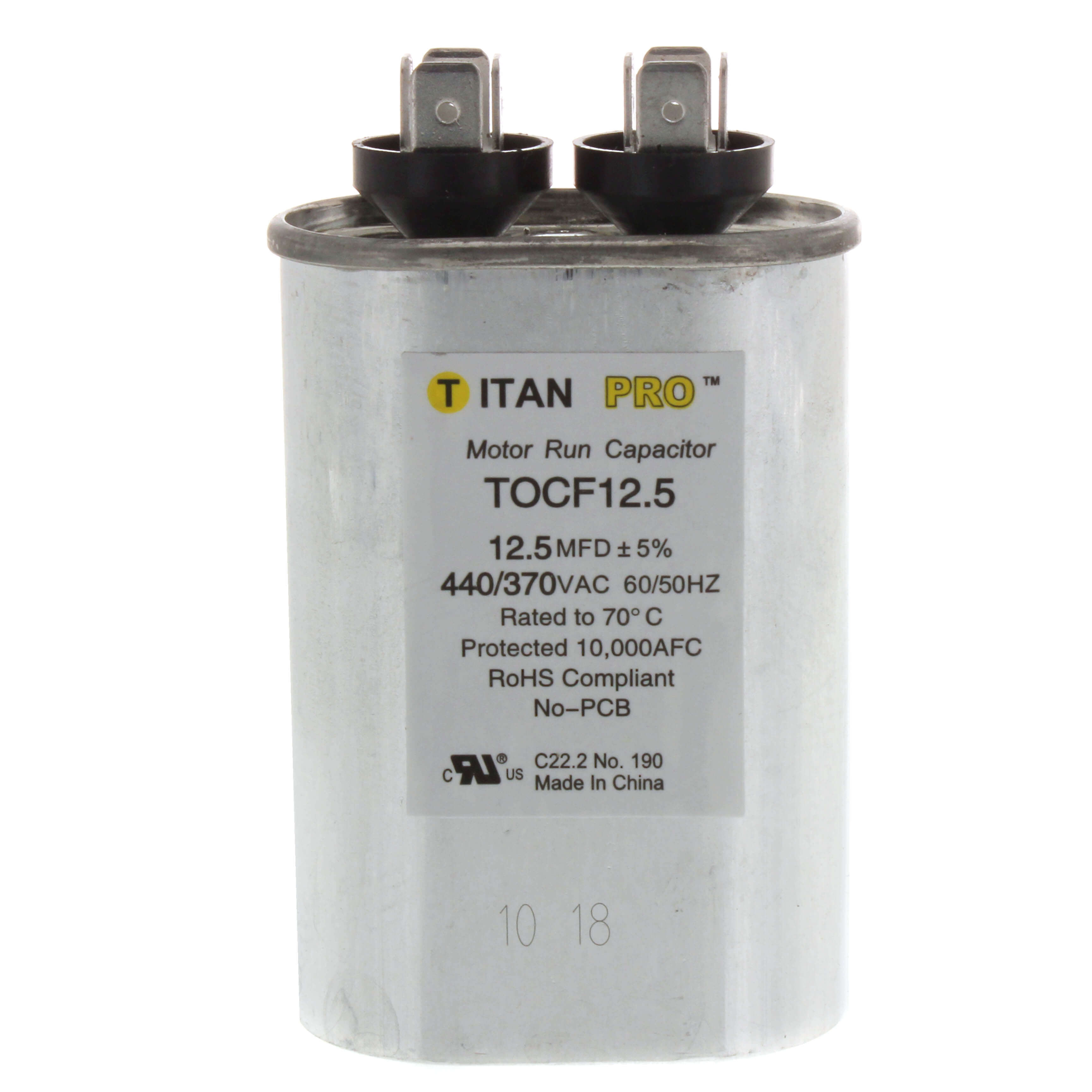

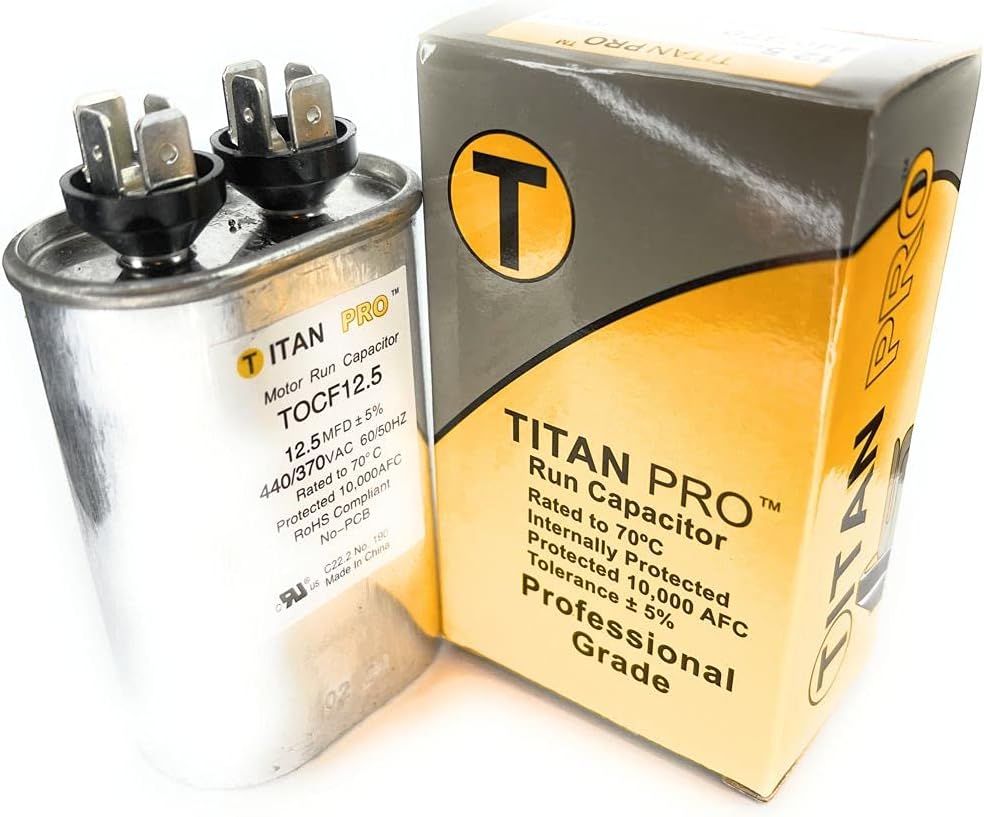

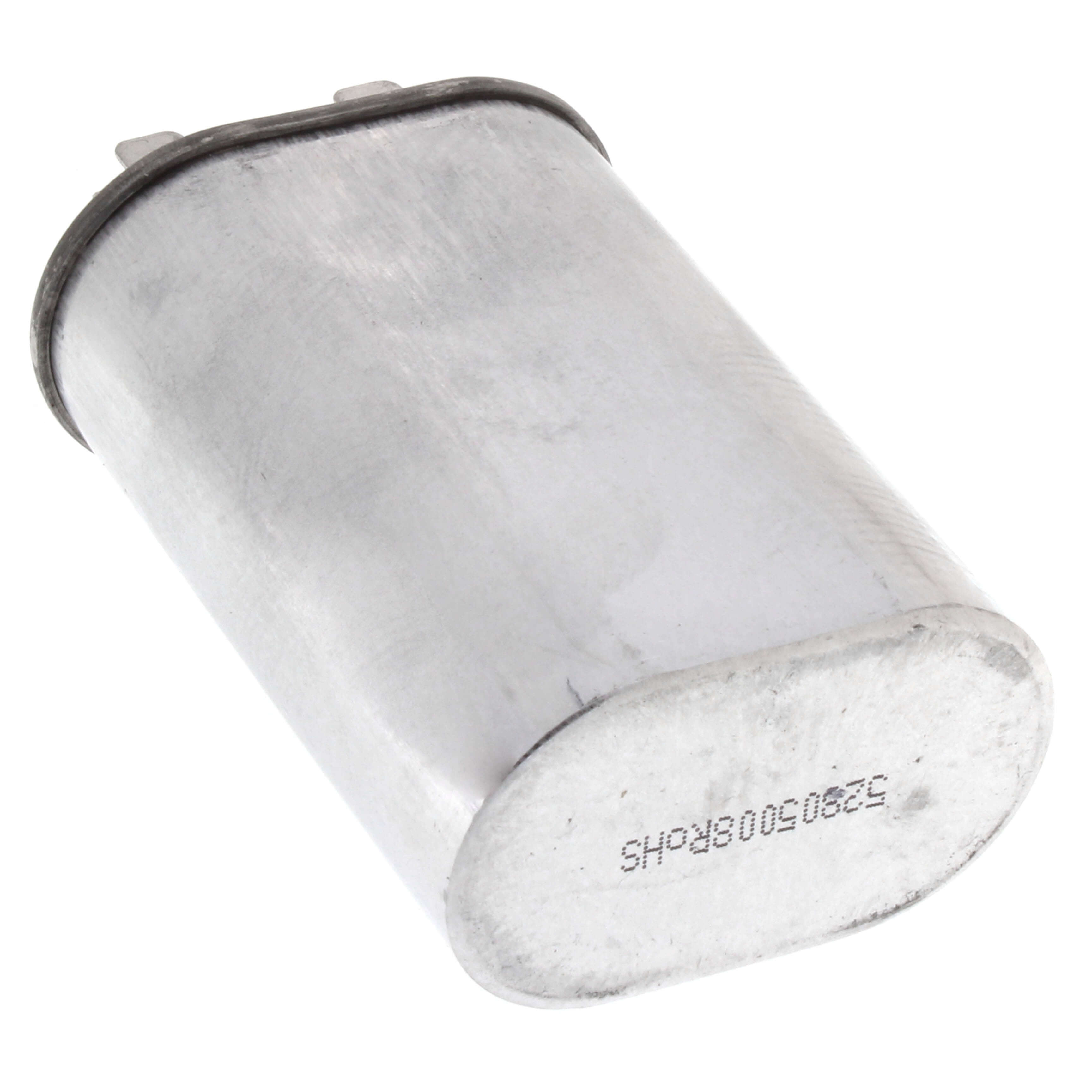

Titan Pro TOCF12.5 Oval Motor Run Capacitor, 12.5 Microfarad Rating, 370-440VAC Voltage

Product Description

The TITAN PRO TOCF12.5 is an oval motor run capacitor with a 12.5 Microfarad Rating and a voltage range of 370-440VAC. This capacitor stores electrical energy for motor operation, providing constant voltage and current adjustments. It is designed for use with American Standard, Trane, Rheem, Carrier and other equipment.

• Features a 12.5 Microfarad rating
• Voltage range of 370-440VAC
• Oval shape for versatile fitting

Product Highlights

The TITAN PRO TOCF12.5 motor run capacitor ensures reliable motor operation with its robust design and adherence to international standards.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCF12.5
• Country of Origin: China

Technical Specifications

• Shape: Oval
• Material: Aluminum
• Capacitance: 12.5 uF
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• Item: Motor Run Capacitor
• Microfarad Rating: 12.5
• Voltage: 370-440V
• Hz: 60/50
• Case Height: 3.875
• Overall Height: 3.5625
• Overall Width: 2
• Overall Depth: 1.25
• EIA UL Base: A
• Terminal Type: 1/4" Male Quick-Connect
• Temperature Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• UNSPSC: 32121501
• Frequency: 60/50 Hz
• Base: EIA UL Base A
• Product Type: Run Capacitor
• Microfad Rating (uF or mFd): 12.5
• Width (in.): 2.03
• Depth (in.): 1.24
• Capacitor Height (in.): 2.95
• Overall Height (incl. terminals - in.): 3.45
• Hertz: 50; 60
• P/N: TOCF12.5
• OEM: Titan Pro
• OEM #: TOCF12.5
• Capacitor Shape: Oval
• Capacitor Voltage: 370-440VAC
• For Use With: American Standard, Trane, Rheem, Carrier, Bryant, Payne, Lennox, Goodman, Ruud, Armstrong, Refrigeration, Business Machines, Fans, Light Ballasts
• Motor Capacitor Type: Motor Run Capacitor
• Rated temperature: 158 degrees Fahrenheit
• Terminals: two 1/4 in male tri-blade terminals
• Can material: metallized polypropylene film with Epoxidized Soybean Oil (ESO)
• Tested run life: up to 60,000 hours
• AFC protection: protected to 10,000 AFC
• Safety: meets UL 810; non PCB
• Frequency Rating: 50/60 Hz
• Voltage Rating: 440/370 VAC
