Product Description

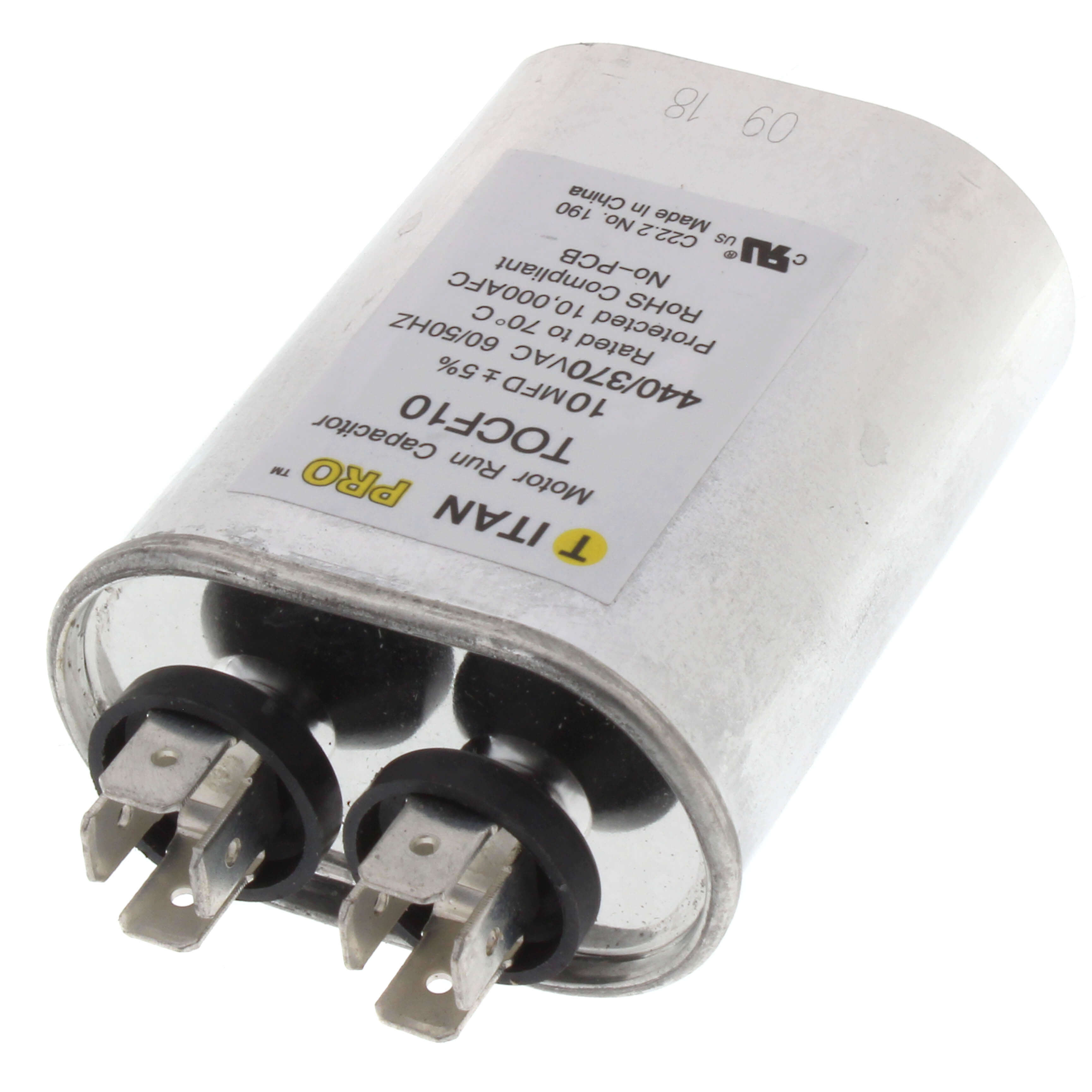

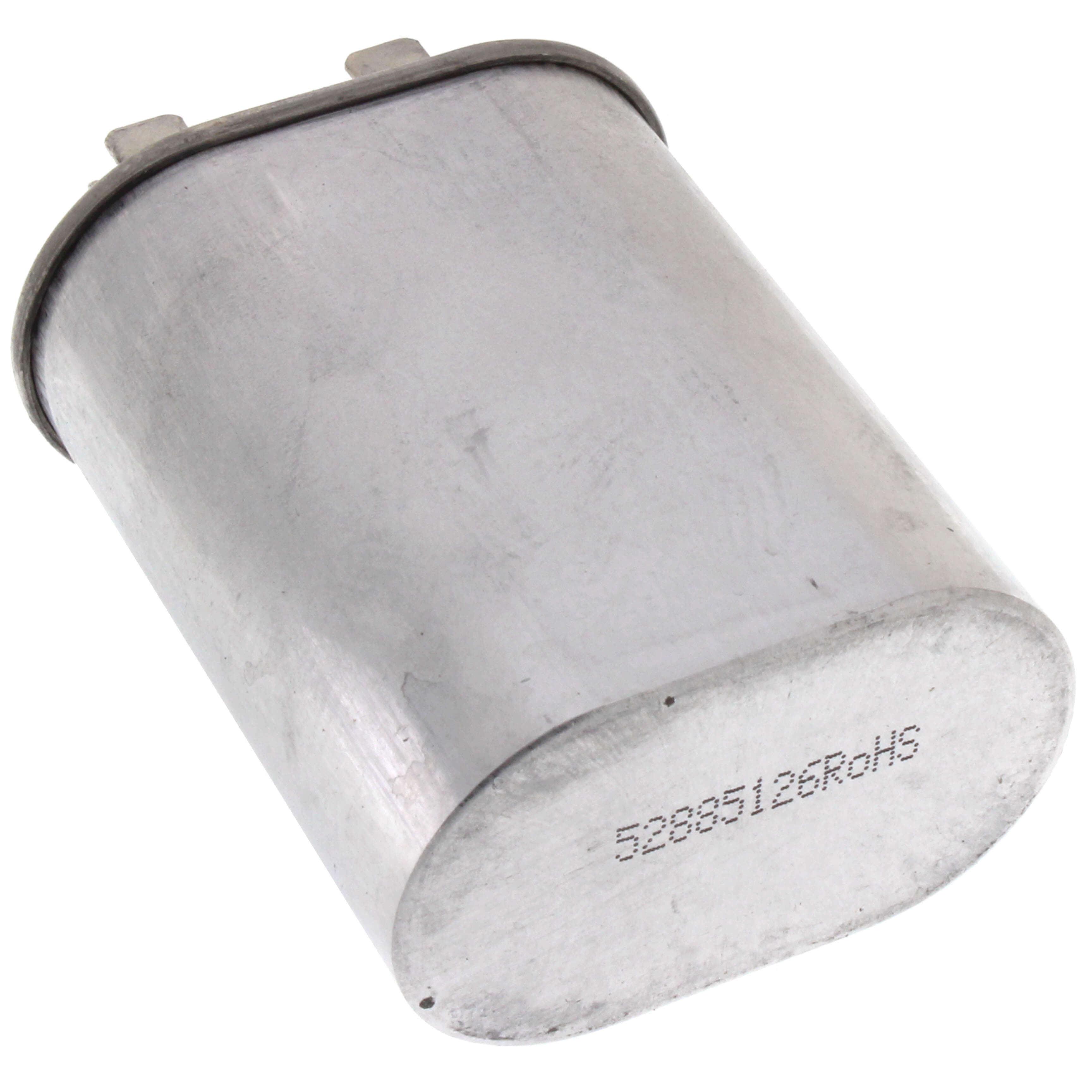

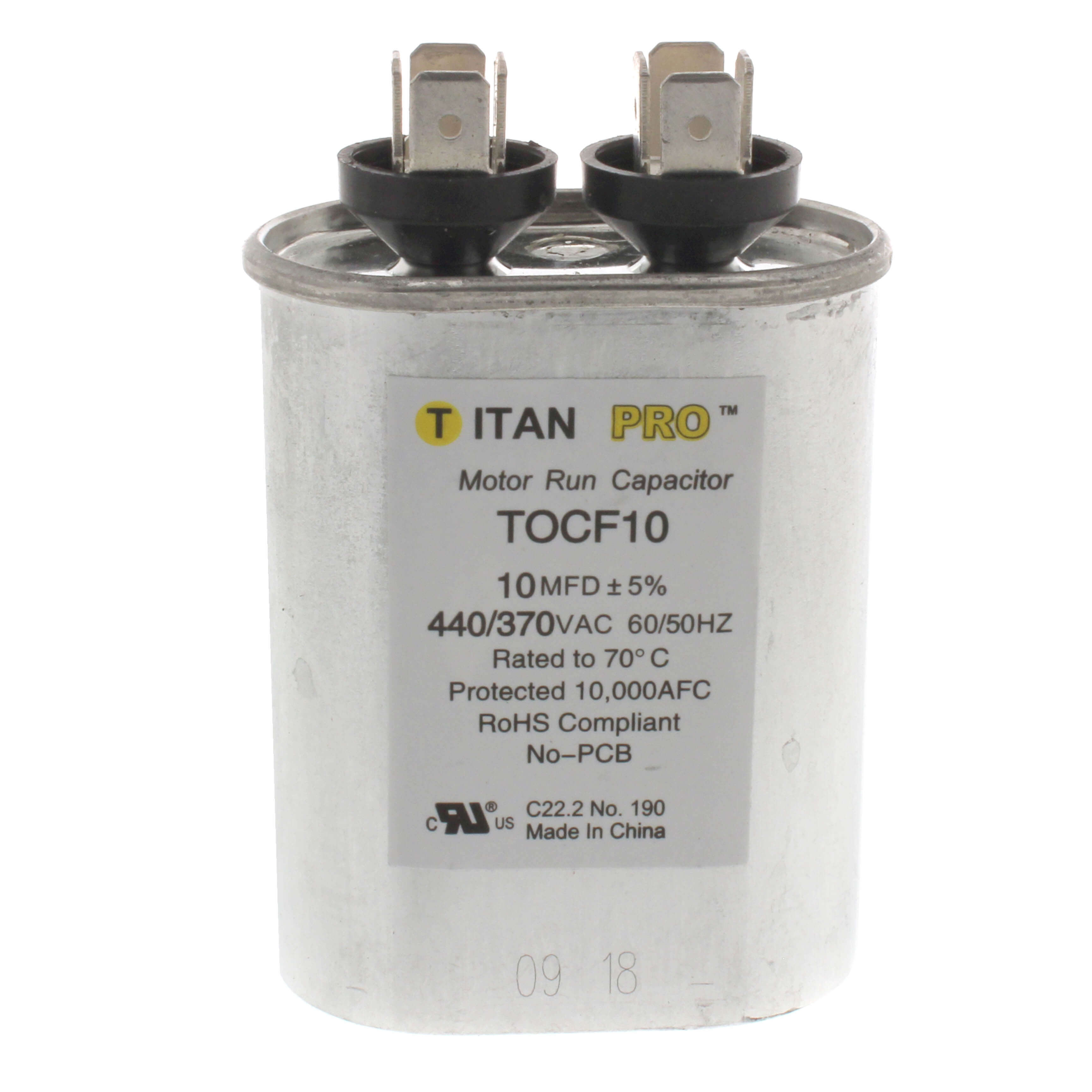

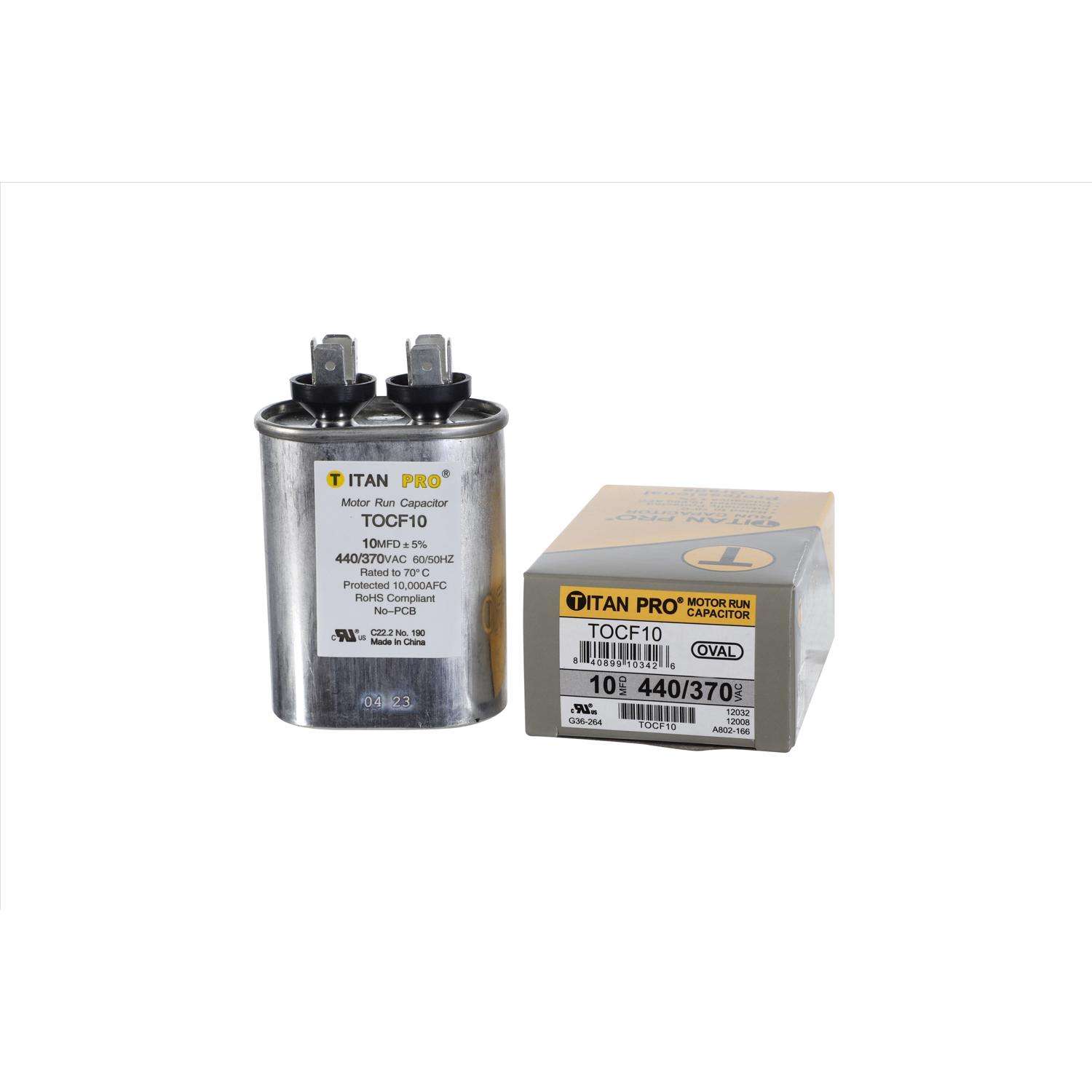

The TITAN PRO TOCF10 Oval Motor Run Capacitor features a 10 Microfarad rating and operates at 370-440VAC. This capacitor stores electrical energy, providing voltage and current adjustments to the motor. It is built to EIA-456-A and IEC 60252-1:2001 standards and has an aluminum case and steel cover.
- Capacitance of 10 Microfarad
- Operating voltage of 370-440VAC
- Oval shape for versatile fitting
Product Highlights
The TITAN PRO TOCF10 is designed for constant voltage and current adjustments to the motor with up to 60,000 hours of operational life.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TOCF10
-
Country of Origin: China
Technical Specifications
-
Shape: Oval
-
Material: Aluminum
-
Capacitance: 10 Microfarad
-
Operating Voltage: 440 Volts
-
Maximum Voltage: 440 Volts
-
Item: Motor Run Capacitor
-
Voltage: 370-440V
-
Frequency: 60/50 Hz
-
EIA UL Base: A
-

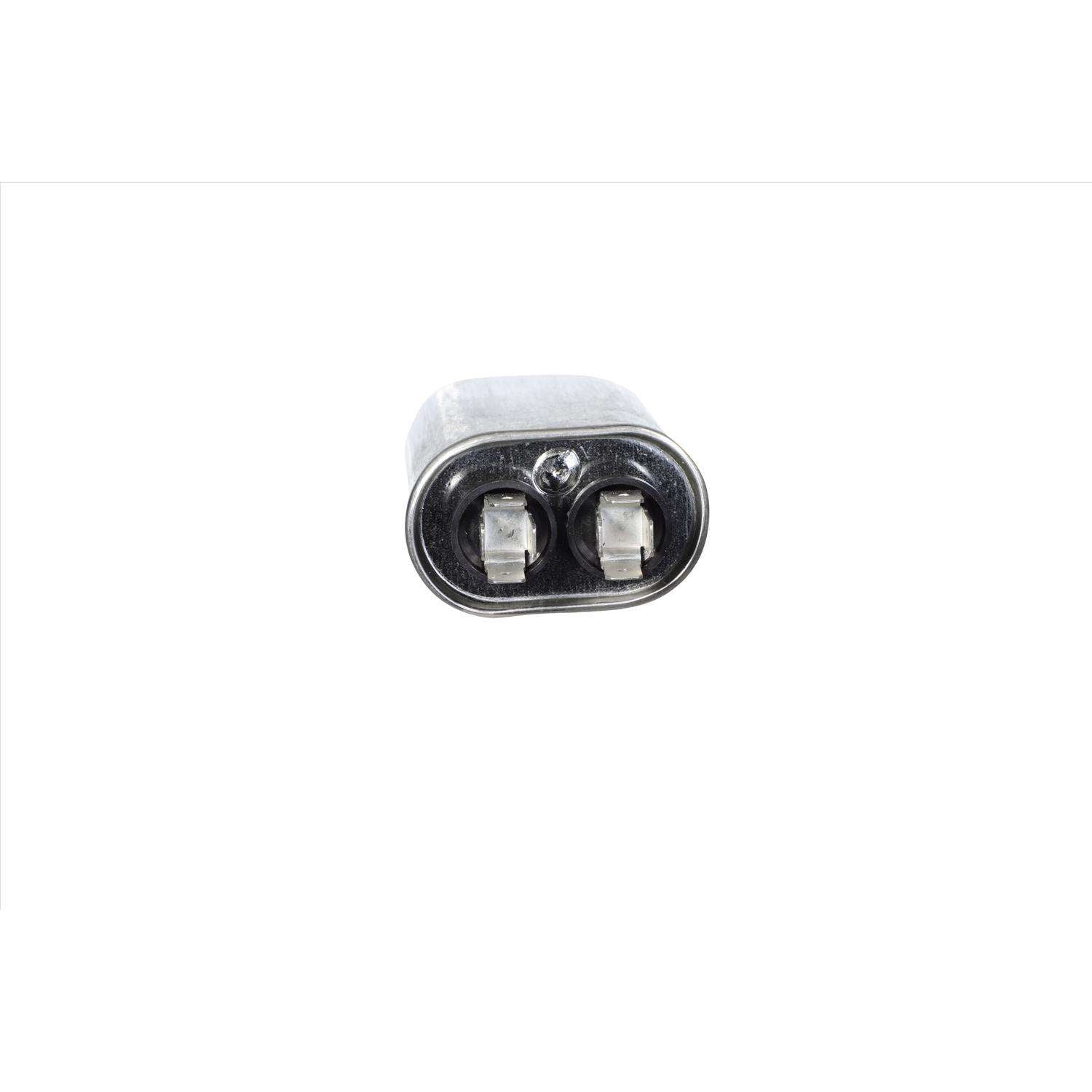

Terminal Type: 1/4" Male Quick-Connect
-
Temp. Range: -40 Degrees to 70 Degrees C
-
Case Material: Aluminum
-
Cover Material: Steel
-
Standards: UL Recognized (E185318)
-
UNSPSC: 32121501
-
Hz: 60/50
-
Capacitor Voltage: 370-440VAC
-
Motor Capacitor Type: Motor Run Capacitor
-
MFD: 10
-
Product Type: Run Capacitor
-
For Use With: Electric Motors
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Terminals: 2
-
Terminal Designations: Standard
-
EIA Tolerance Code: A
-
Terminal Tab Width: 0.25 in
-
Number of Pieces: 1
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
