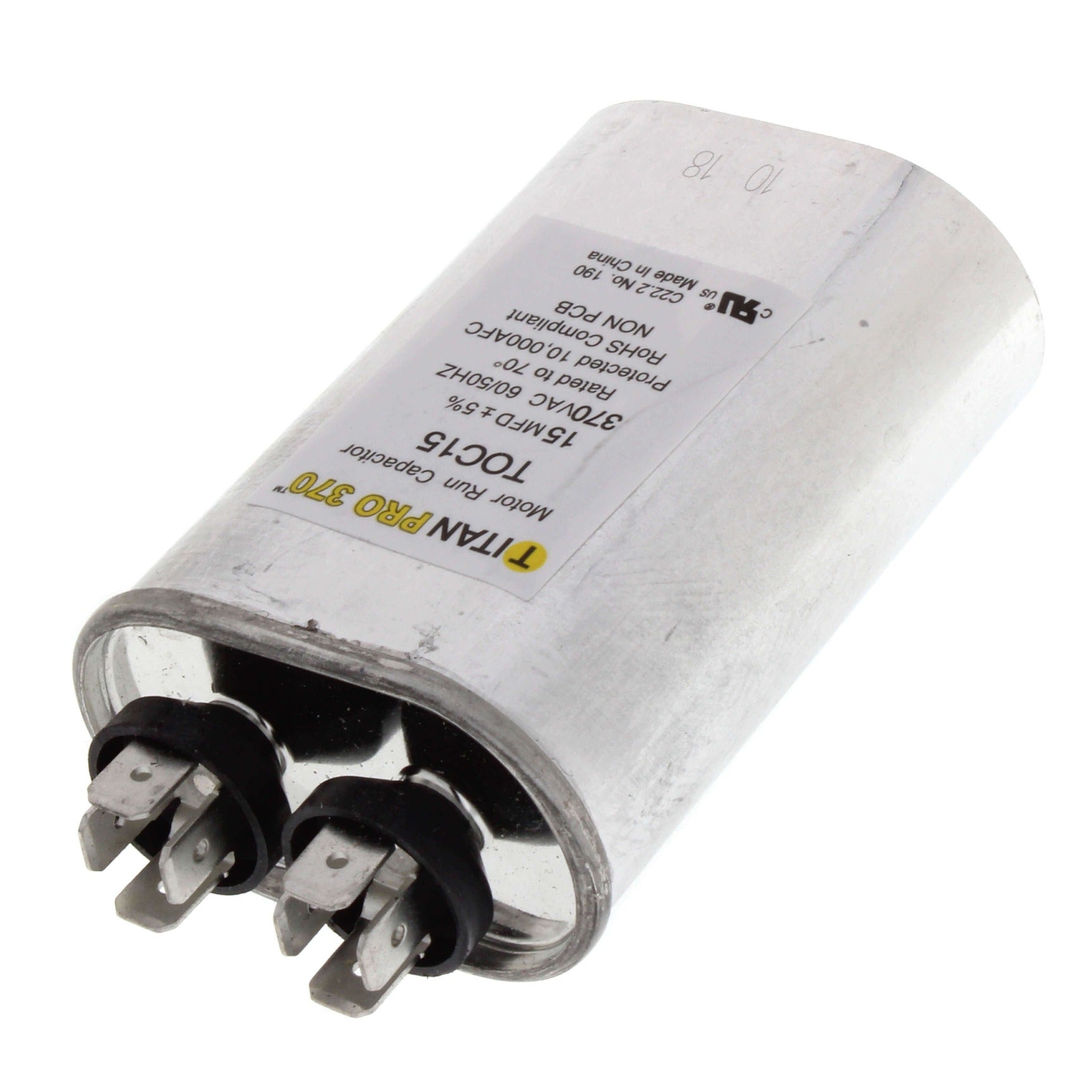

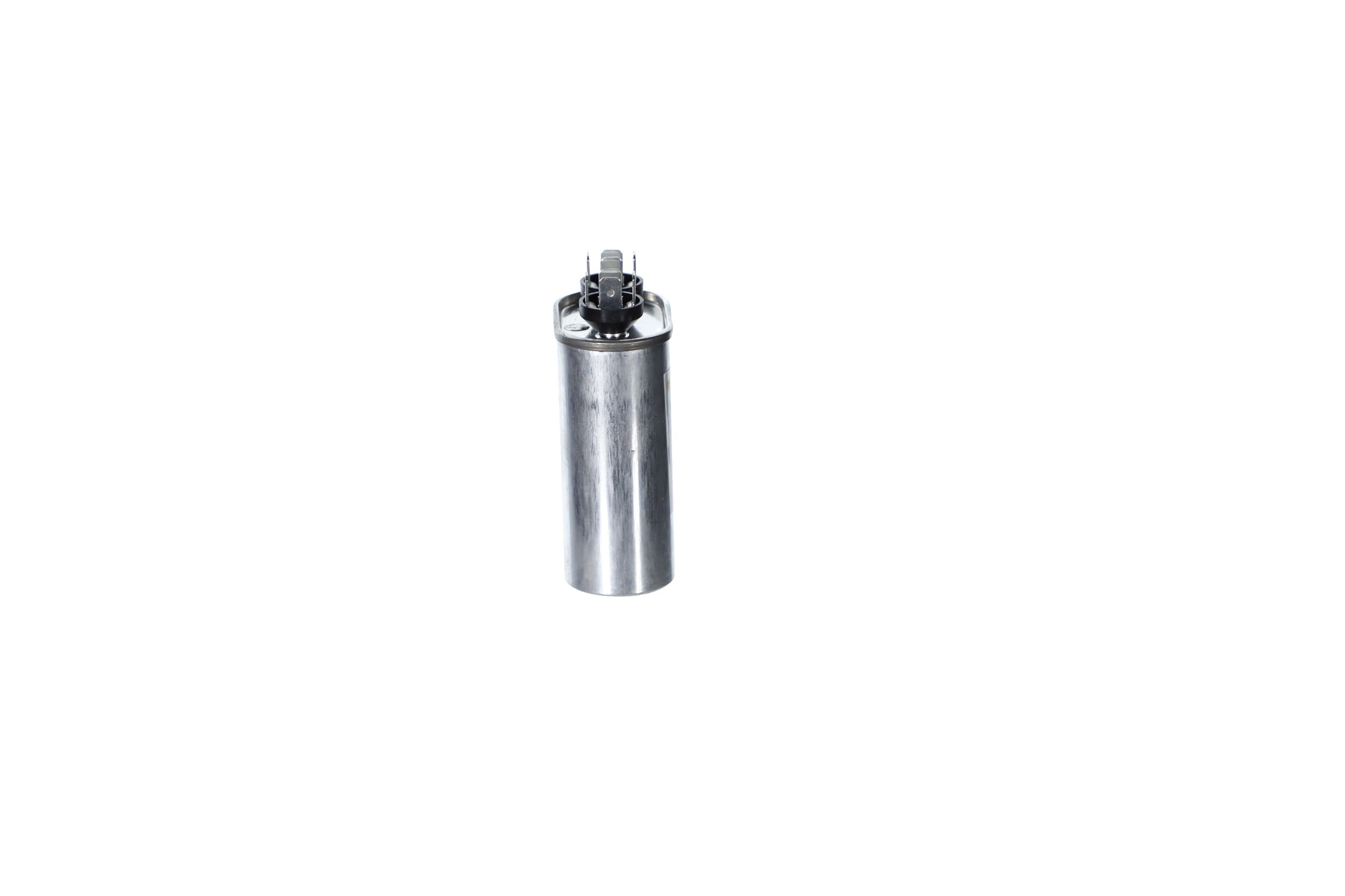

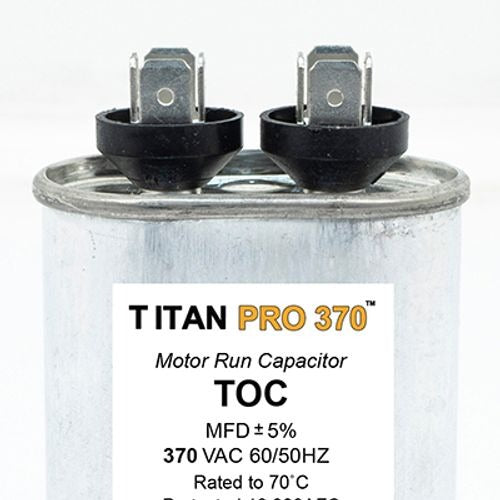

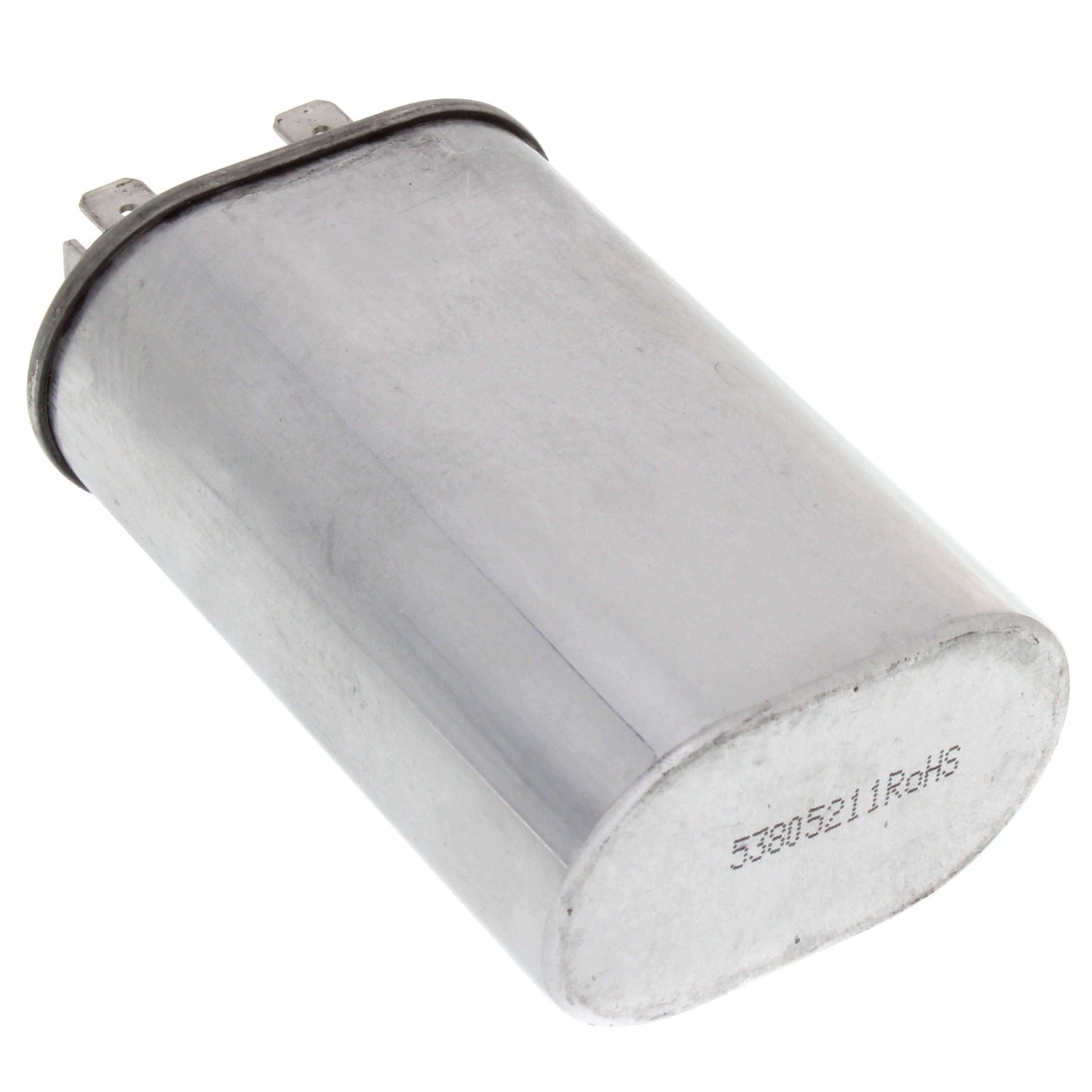

Titan Pro TOC15 15 MFD Oval Motor Run Capacitor (Packard 325P156H37A36N4X)

Product Description

Titan Pro TOC15 is a 15 MFD (15 uF), 370 VAC oval motor run capacitor intended for AC motors in HVAC and refrigeration systems. The single-section capacitor uses heavy-edged metallized polypropylene film dielectric filled with proprietary biodegradable oil, is rated for 60,000 hours of operational life, and is 100% electrically tested. It meets EIA-456-A and IEC 60252-1:2001 standards and has standard blade terminals.

• 15 MFD capacitance at 370 VAC; tolerance +/- 5%; suitable for 50/60 Hz
• Heavy-edged metallized polypropylene dielectric with proprietary biodegradable oil; 60,000 hour operational life
• Built to EIA-456-A and IEC 60252-1:2001 standards and 100% electrical testing; single-section oval design

Product Highlights

15 MFD, 370 VAC oval motor run capacitor; metallized polypropylene dielectric; 60,000 hour life; EIA-456-A and IEC 60252-1:2001 compliant

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOC15
• Country of Origin: Import
