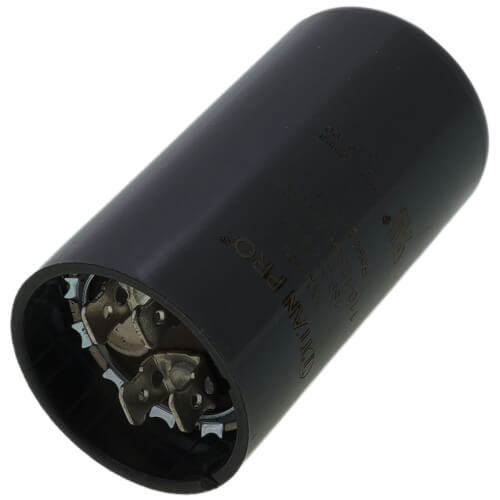

Titan Pro TMJ189 110-125V Start Capacitor (189-227 MFD) PMJ189

Product Description

The Titan Pro TMJ189 is a 110-125V start capacitor rated for use in AC motor starting applications. This model features a dry, electrolytic, non-polarized design suitable for intermittent duty. Constructed with moisture and oil-resistant materials, it is ideal for use in demanding environments.

• Operating temperature range: forty degrees to sixty-five degrees Celsius (minus forty degrees to one hundred forty-nine degrees Fahrenheit)
• Rated for twenty starts per hour and a three-second start time
• Meets or exceeds EIA Standard RS-463 type

Product Highlights

This capacitor is essential for HVAC systems, providing reliable starts for motors and compressors.

Product Information

Standard Information

• Brand: Titan Pro
• MPN: TMJ189

Technical Specifications

• Voltage: 110-125V
• MFD Range: 189-227
• Shape: Round
• Diameter: 1-7/16 inches
• Height: 2-3/4 inches
• Weight: 0.15 lbs
• Shipping Dimensions: 3 inches deep, 1.5 inches wide, 1.5 inches high
