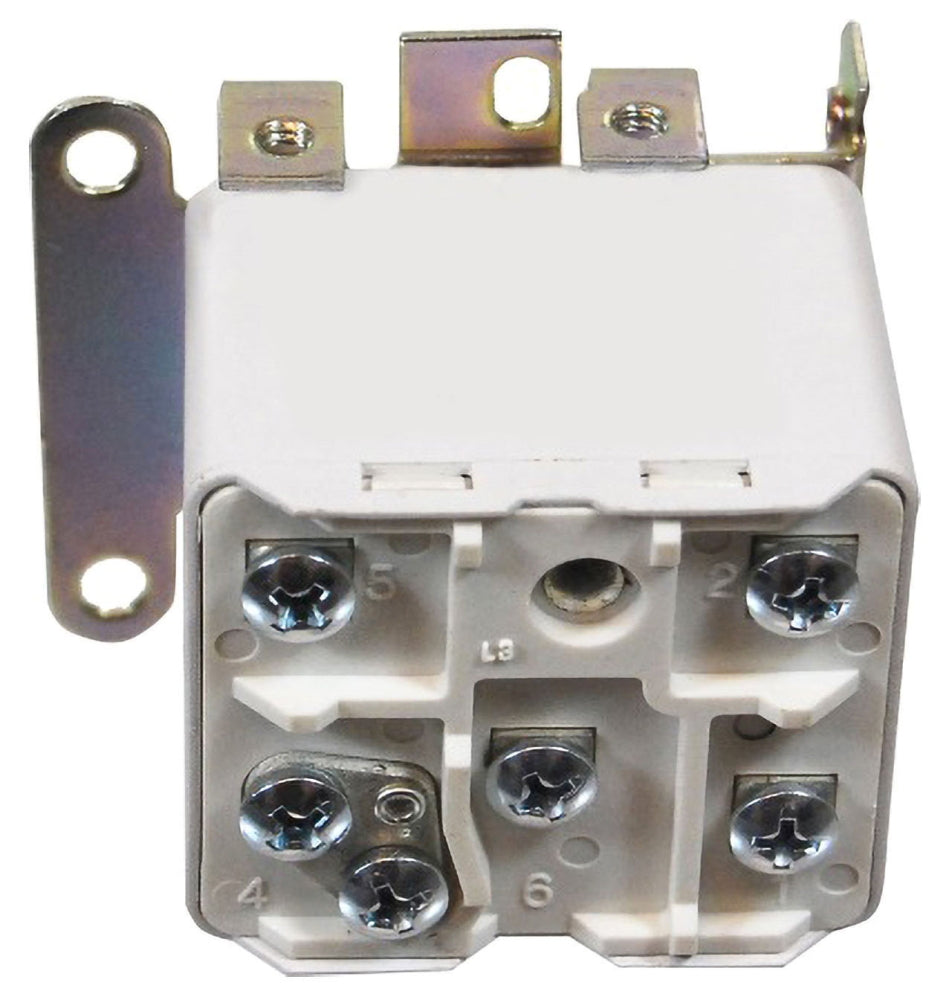

Titan Ice TR70 Potential Relay 282 to 308 V Pick-Up 80 V Drop-Out 253 V Coil 35 A

Product Description

The Titan Ice TR70 is a potential relay designed for various applications. This relay operates at a pick-up voltage of two hundred eighty-two to three hundred eight volts and a drop-out voltage of eighty volts. It features a coil voltage of two hundred fifty-three volts and a current rating of thirty-five amps.

• Contact current rating of thirty-five amps
• Coil voltage of two hundred fifty-three volts
• Includes six quick connect and number eight thirty-two TPI screw terminals

Product Highlights

The Titan Ice TR70 is suitable for central air conditioning compressors and submersible pump motors. Its design includes durability for longevity and reliability in operations.

Product Information

Standard Information

• Manufacturer: Titan Ice
• Product SKU: Packard Inc. (Titan Ice) TR70

Technical Specifications

• Voltage Rating: Two hundred eighty-two to three hundred eight volts (Pick-Up), eighty volts (Drop-Out)
• Coil Voltage: Two hundred fifty-three volts
• Contact Current Rating: Thirty-five amps
• Terminal Type: Six quick connect and number eight thirty-two TPI screw
• Approval: UL (Canada and US)
• Application: Central air conditioner compressor, submersible pump motor, generally used for motors over one-third HP with start capacitors
