Product Description

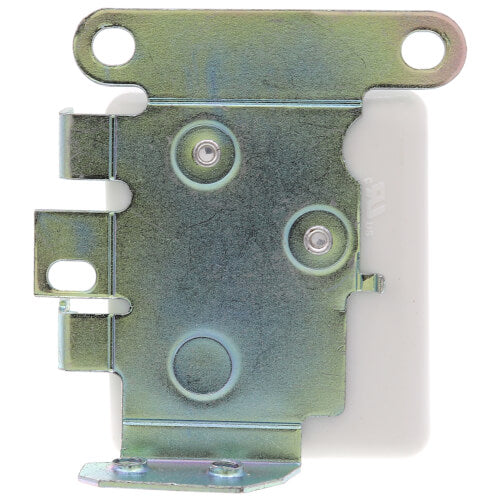

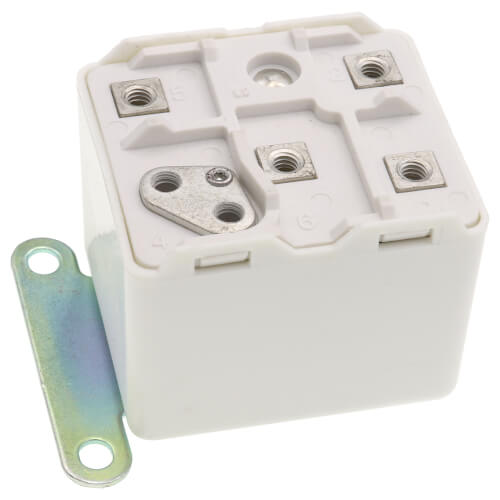

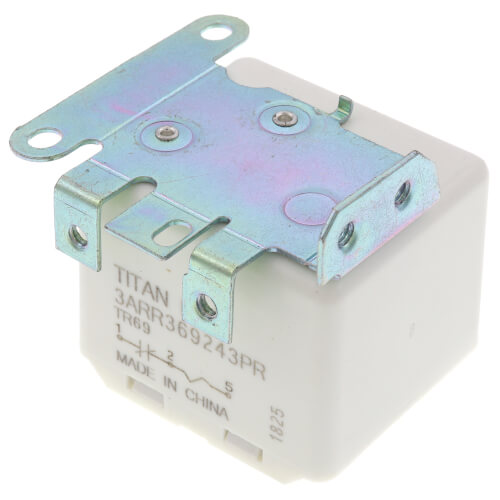

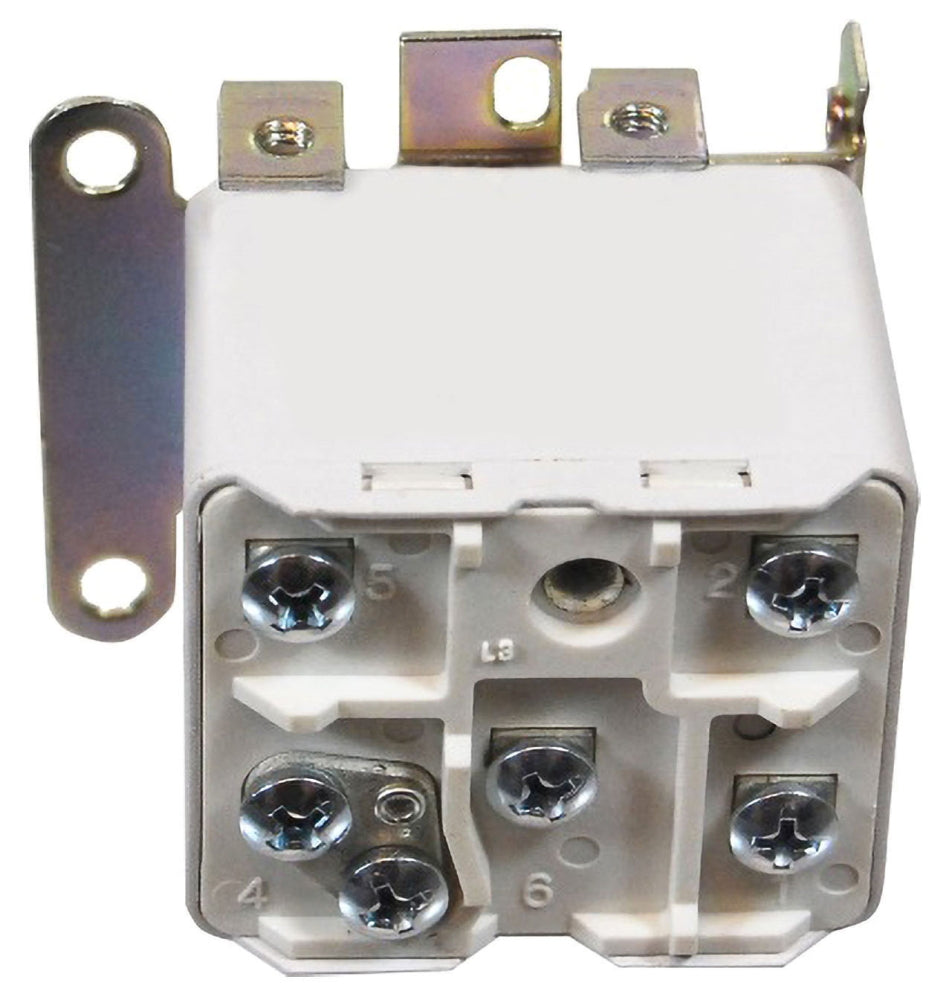

The Titan Ice TR69 is a reliable potential relay designed for various applications. It operates at a coil voltage of three hundred thirty-six volts and has a maximum contact current rating of thirty-five amps. This relay is ideal for central air conditioner compressors and submersible pump motors.
- Compatible with GE 3ARR3 model relays and other OEMs
- UL and CSA approved for safety
- Includes six quick connect terminals and instruction manual
Product Highlights
Proven performance for over forty years, this relay ensures durability and effective operation for HVAC systems and motors above one-third horsepower.
Product Information
Standard Information
-
Brand: Titan Ice
-
MPN: TR69
Technical Specifications
-
Coil Voltage: 336 Volt
-
Contact Current Rating: 35 Amp
-
Voltage Rating: 177 to 198 Volt (Pick-Up), 108 Volt (Drop-Out)
-
Terminal Type: (6) Quick Connect and #8-32 TPI Screw
-
Endurance: Up to 500,000 operations depending on load
-
Approval: UL (Canada and US)
-
Application: Central Air Conditioner Compressor, Submersible Pump Motor
