Product Description

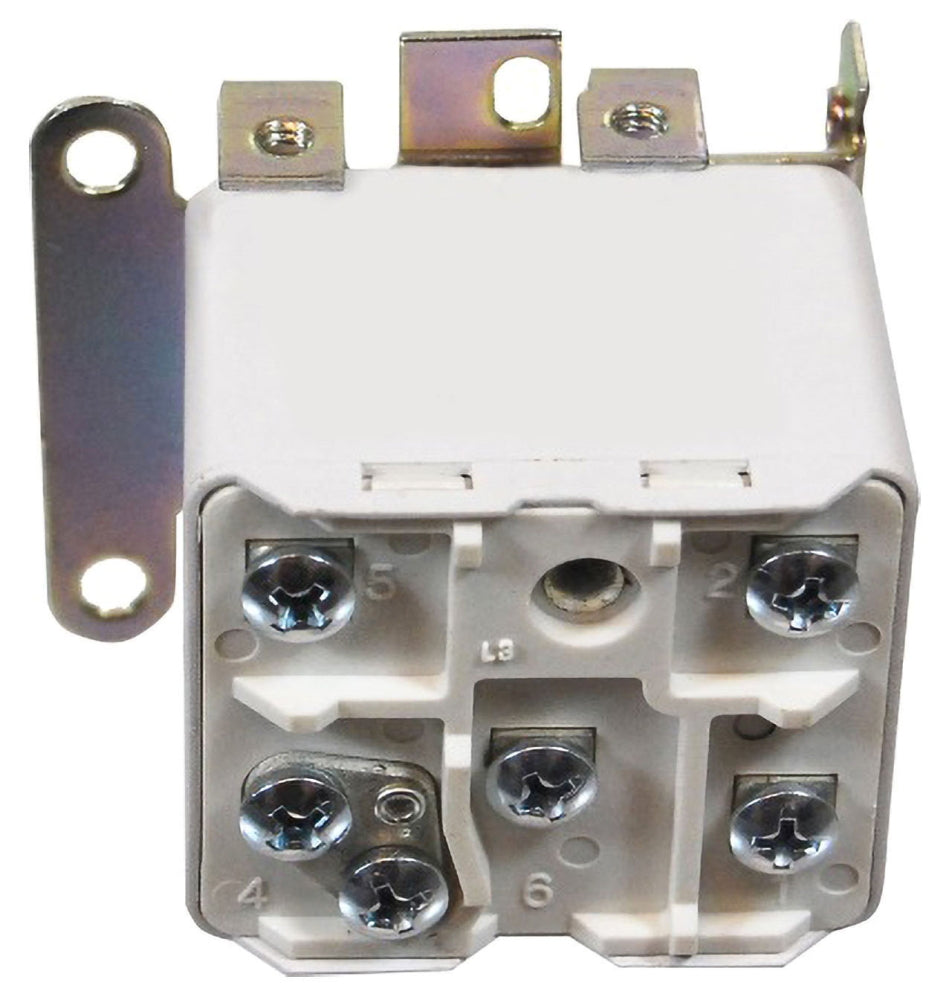

The Titan Ice TR68 is a potential relay with a coil voltage of five hundred volts. It is designed for use with various applications including central air conditioner compressors, submersible pump motors, and motors typically over one third horsepower equipped with start capacitors.
- Contact current rating of thirty-five amps
- UL and CSA approval for safety
- Six quick connect terminals for easy installation
Product Highlights
This relay offers dependable performance and has proven its reliability for over forty years. It is a universal replacement for many General Electric model relays.
Product Information
Standard Information
-
Manufacturer: Titan Ice
-
Part Number: TR68
Technical Specifications
-
Voltage Rating: 322 to 348 volts (Pick-Up), 138 volts (Drop-Out)
-
Coil Voltage: 500 volts
-
Current Rating: 35 amps
-
Terminal Type: (6) Quick Connect and #8-32 TPI screw
-
Endurance: Up to 500,000 operations depending on load
-
Approval: UL (Canada and US)
-
Application: Central Air Conditioner Compressor, Submersible Pump Motor, Motors over 1/3 HP with Start Capacitor
