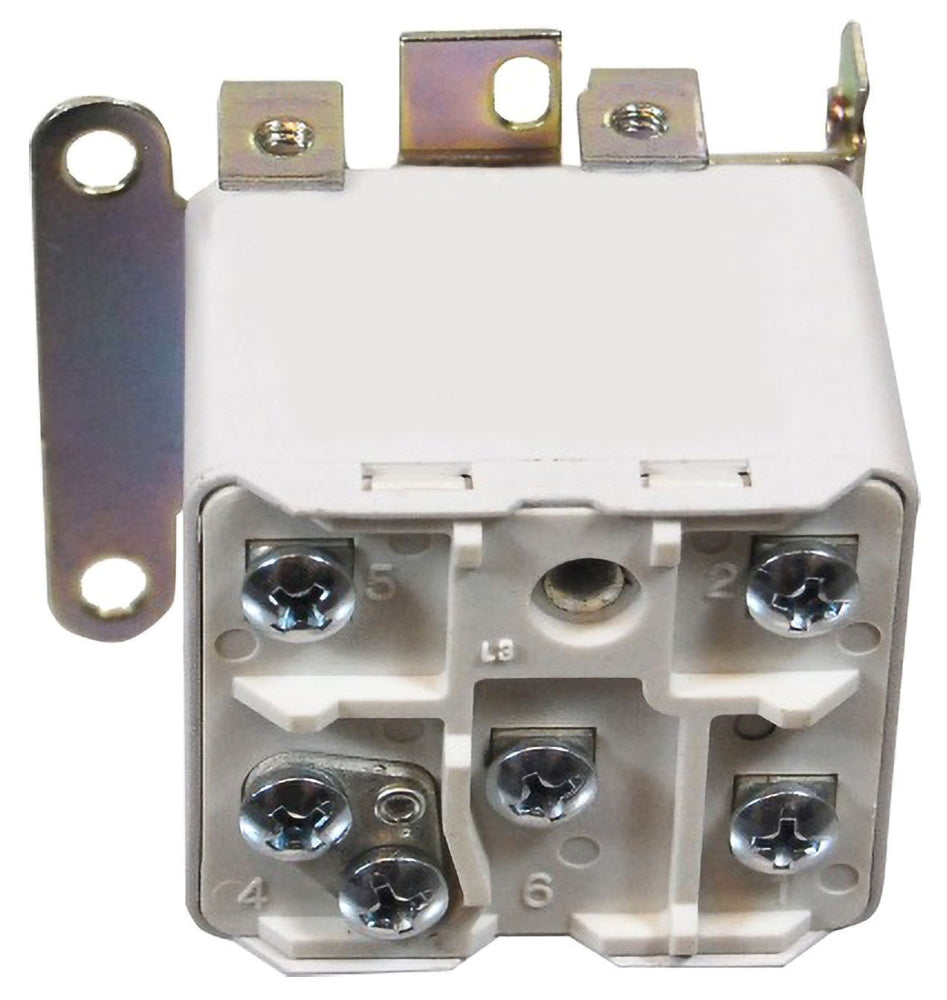

Titan Ice TR67 Potential Relay - 420 Volt Coil, 35 A Rating

Product Description

The Titan Ice TR67 is a potential relay designed for central air conditioner compressors and submersible pump motors. This relay operates with a pick-up voltage range of 292 to 318 volts and a drop-out voltage of 130 volts. It features a 420 volt coil voltage and a contact current rating of thirty-five amps.

• Durable design for long-term use
• Easy installation with quick connect terminals
• UL approved for safety

Product Highlights

This relay is suitable for motors generally over one-third horsepower that use start capacitors. It offers reliable performance, backed by years of proven use in the field.

Product Information

Standard Information

• Brand: Titan Ice
• MPN: TR67

Technical Specifications

• Coil Voltage: 420 Volt
• Contact Current Rating: 35 Amp
• Terminal Type: (6) Quick Connect and #8-32 TPI Screw
• Voltage Rating: 292 to 318 Volt (Pick-Up), 130 Volt (Drop-Out)
• Approval: UL (Canada and US)
• Applications: Central air conditioner compressors, submersible pump motors
• Endurance: Up to 500,000 operations depending on load
