Product Description

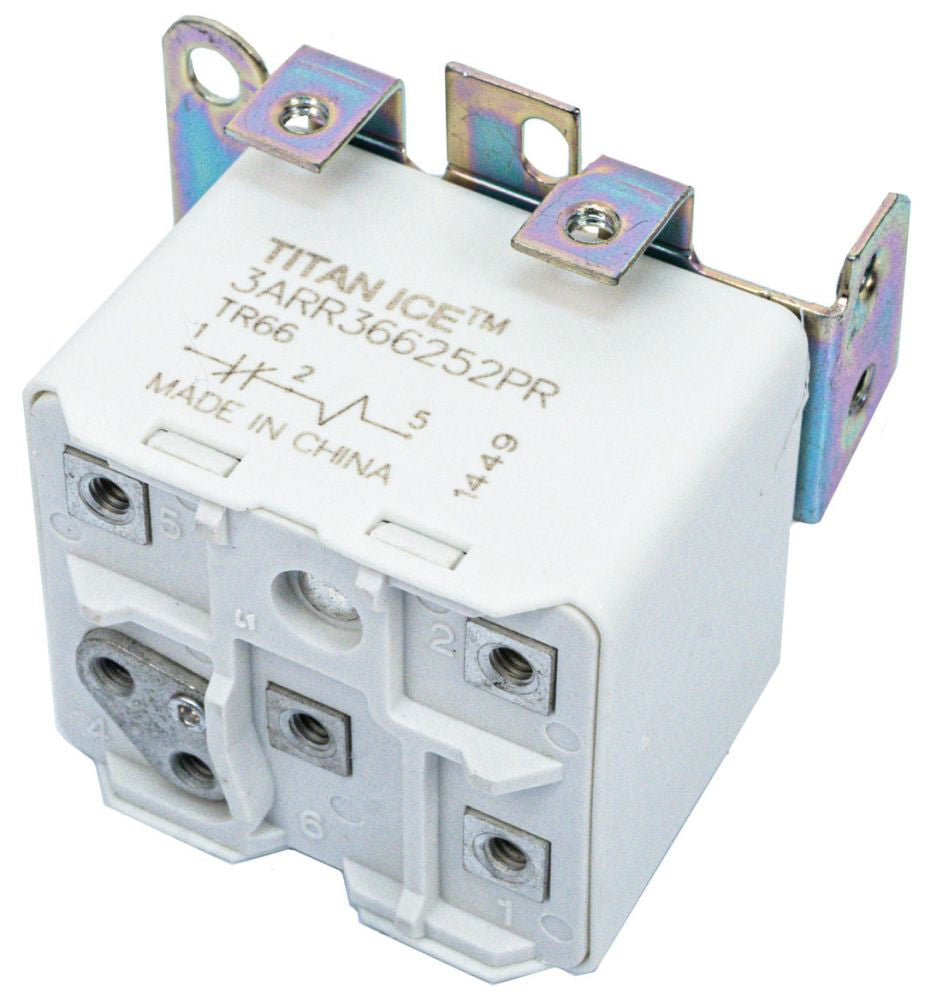

Titan Ice TR66 is a potential relay designed for various HVAC applications. This relay operates with a pick-up voltage range of 210 to 230 volts and a drop-out voltage of 123 volts. The coil voltage is rated at 395 volts, making it suitable for central air conditioning compressors and submersible pump motors.
- Contact current rating of thirty-five amps
- Features six quick connect terminals and #8-32 TPI screw terminal
- UL approved for use in Canada and the US
Product Highlights
Ideal for motors over one-third horsepower, the TR66 relay ensures reliable performance across various applications.
Product Information
Standard Information
-
Brand: Titan Ice
-
MPN: TR66
Technical Specifications
-
Coil Voltage: 395 volt
-
Contact Current Rating: 35 amp
-
Terminal Type: (6) quick connect and #8-32 TPI screw
-
Voltage Rating: 210 to 230 volt (pick-up), 123 volt (drop-out)
-
Application: Central air conditioner compressor, submersible pump motor, motors over 1/3 HP with start capacitors
-
Endurance: Up to 500,000 operations depending on load
-
Approval: UL (Canada and US)
-
Marketing Text: Universal replacements for thousands of GE 3ARR3 model relays and many other OEMs.
