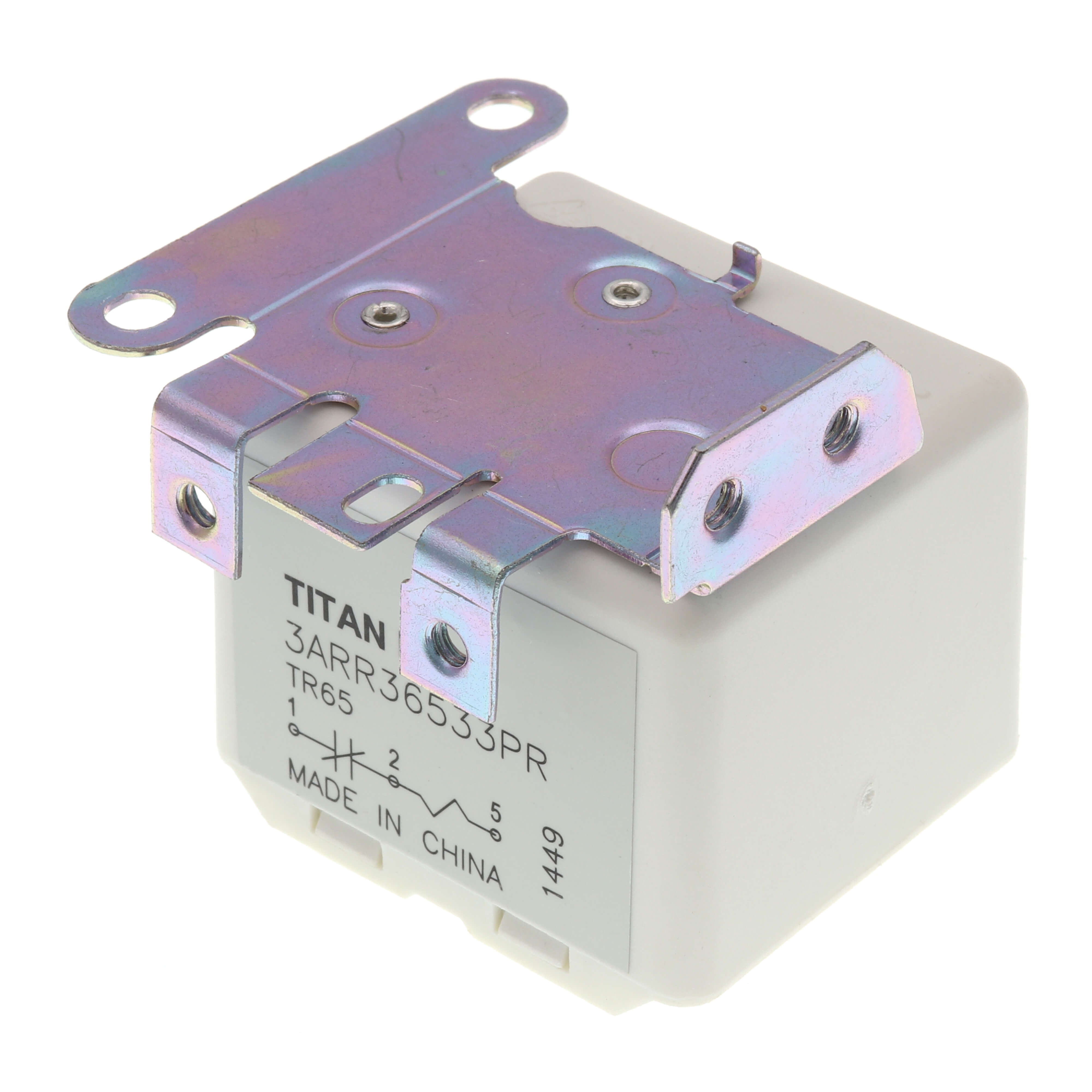

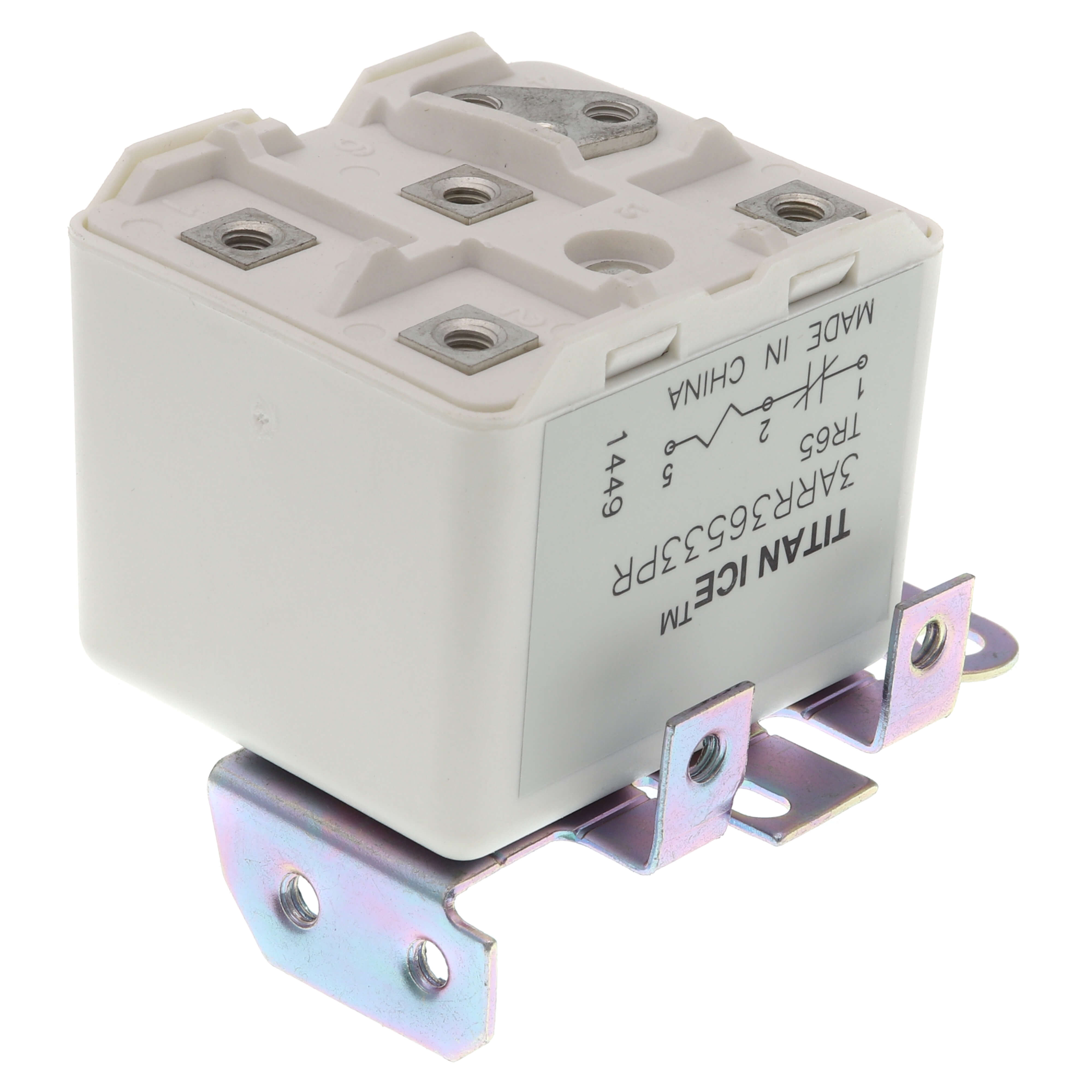

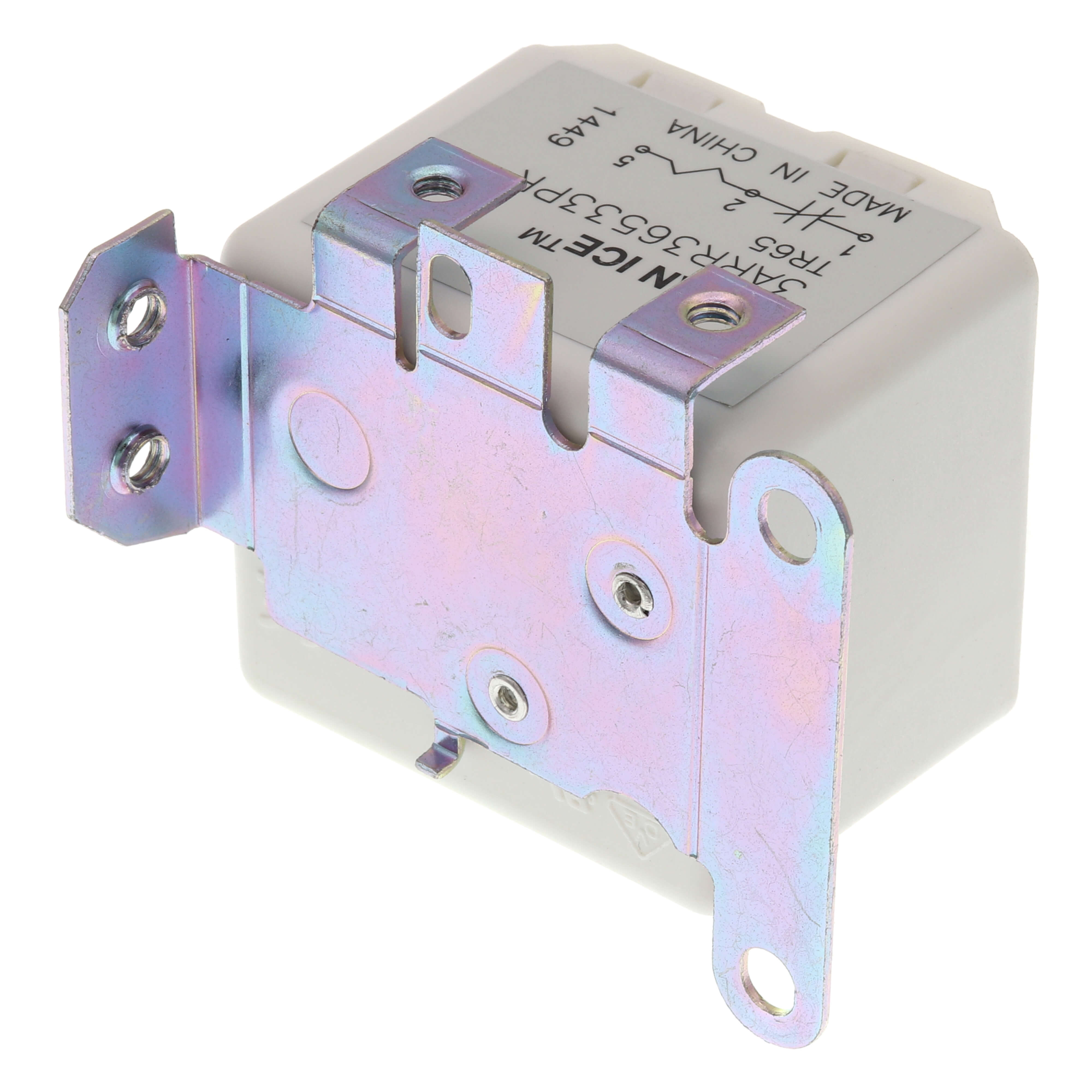

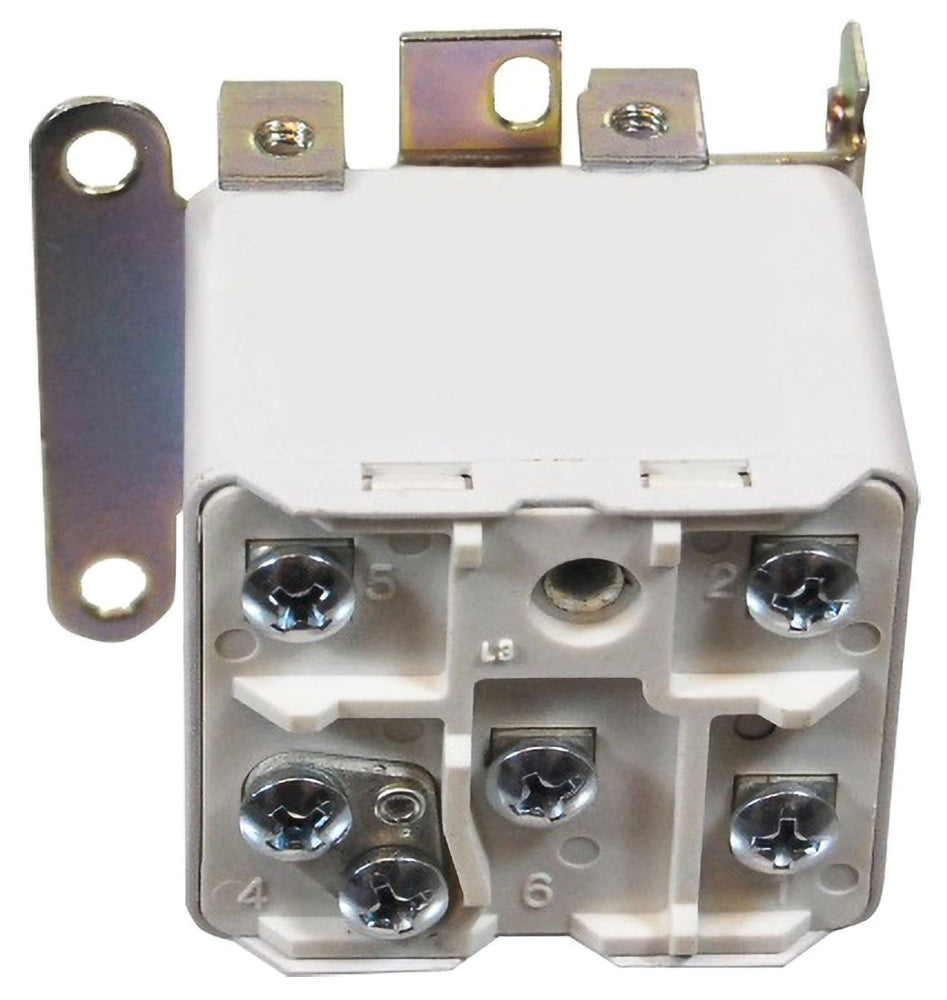

Titan Ice TR65 Potential Relay 332 V Coil Voltage GE Replacement

Product Description

The Titan Ice TR65 is a potential relay designed for HVAC and electrical applications. With a coil voltage of three hundred thirty-two volts, this relay supports various equipment, including air conditioner compressors and submersible pump motors.

• Contact Current Rating of thirty-five amps.
• Includes six quick connect terminals and #8-32 TPI screw terminals.
• UL certified for safety compliance.

Product Highlights

Reliable performance for motors above one-third horsepower. The Titan Ice TR65 uses original GE designs, ensuring effective operation in various settings.

Product Information

Standard Information

• Manufacturer: Titan Ice
• UPC: 84089911233

Technical Specifications

• Coil Voltage: 332 volts
• Contact Current Rating: 35 amps
• Voltage Rating: 165 to 185 volts (Pick-Up), 93 volts (Drop-Out)
• Terminal Type: (6) Quick Connect and #8-32 TPI Screw
• Endurance: Up to 500,000 operations based on load
• Approval: UL (Canada and US)
• Applications: Central air conditioner compressors, submersible pump motors, motors typically over 1/3 HP with start capacitors
