Product Description

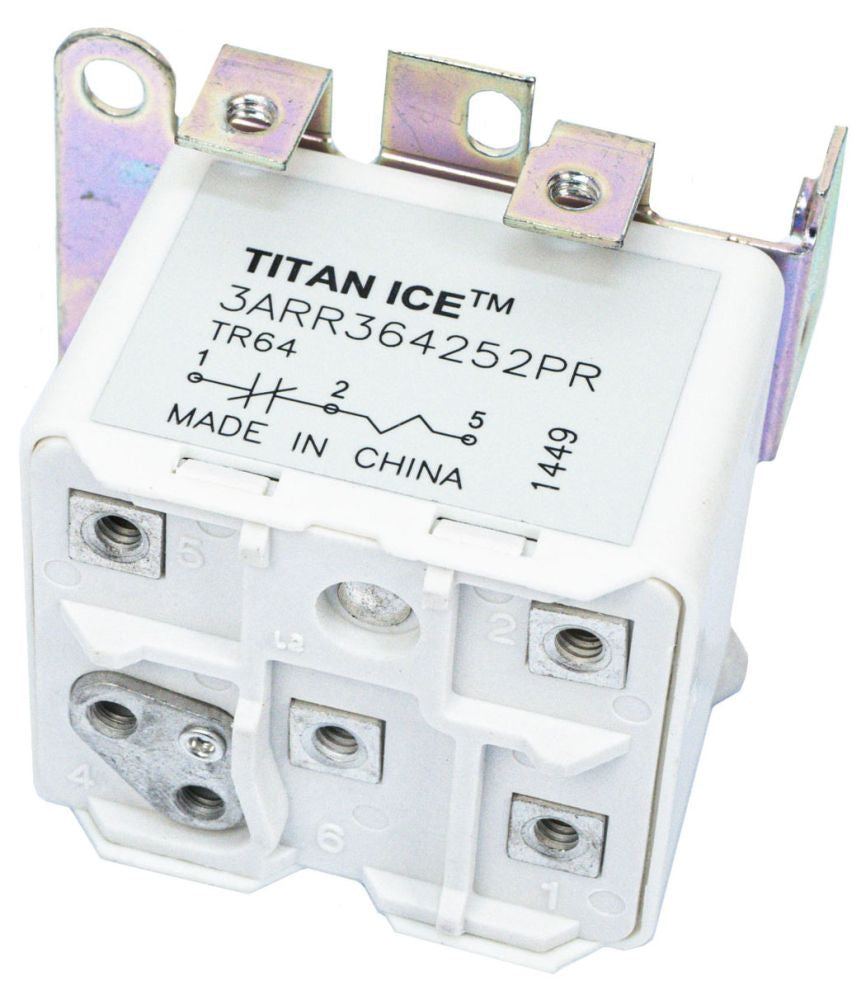

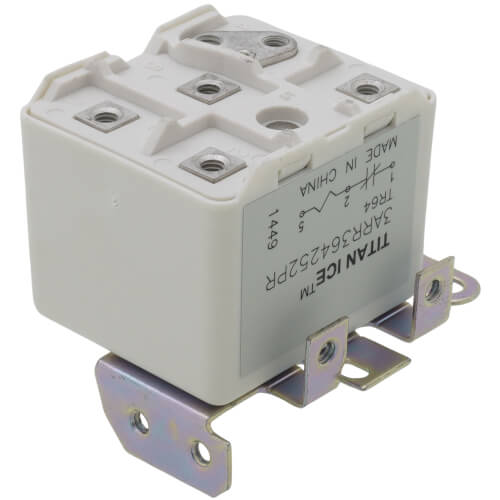

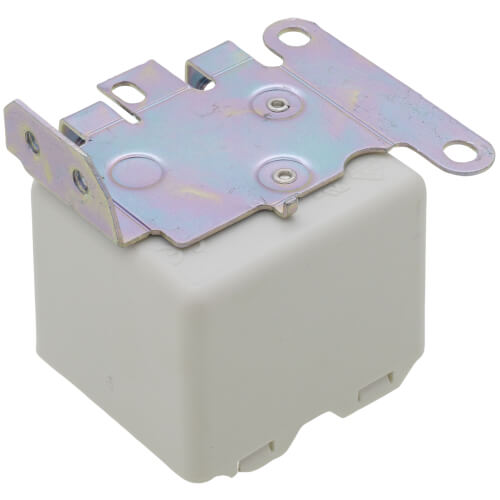

The Titan Ice TR64 is a potential relay with a coil voltage of three hundred ninety-five volts. It is designed for use in various applications including central air conditioning compressors and submersible pump motors. The relay supports a contact current rating of thirty-five amps and has a voltage rating of two hundred fifty-seven to two hundred seventy-eight volts for pick-up, and one hundred twenty-three volts for drop-out. This relay is suitable for motors generally over one-third horsepower with start capacitors.
- Terminal Type: Six quick connect terminals and #8-32 TPI screw
- UL approved in Canada and the US
- Endurance rated for up to five hundred thousand operations depending on load
Product Highlights
This relay offers reliability for various motor applications in HVAC systems.
Product Information
Standard Information
-
Manufacturer: Titan Ice
-
UPC: 84089911232
Technical Specifications
-
Coil Voltage: 395 Volt
-
Contact Current Rating: 35 Amp
-
Pick-Up Voltage Rating: 257 to 278 Volt
-
Drop-Out Voltage Rating: 123 Volt
-
Terminal Type: (6) Quick Connect and #8-32 TPI Screw
-
Approval: UL (Canada and US)
