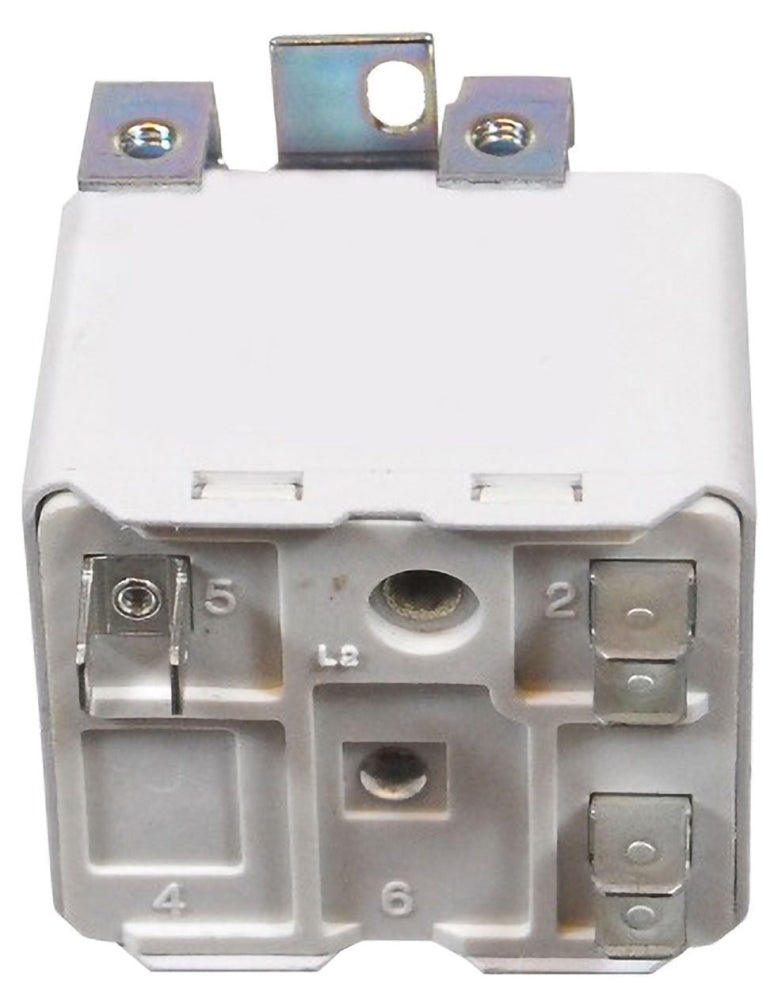

Titan Ice TR550 Potential Relay - 130 V Coil - 35 A - Replacement Relay

Product Description

Titan Ice TR550 is a potential relay featuring a coil voltage of one hundred thirty volts and a current rating of thirty-five amperes. Designed for reliability, this relay is suitable for various applications including central air conditioner compressors and submersible pump motors.

• Contact Current Rating: 35 Amps
• Coil Voltage: 130 Volts
• Six Quick Connect Terminals

Product Highlights

This relay delivers endurance and function for motors over one-third horsepower with a start capacitor. It includes six quick-connect terminals with appropriate screws. The product meets UL standards for safety and reliability.

Product Information

Standard Information

• Brand: Titan Ice
• MPN: TR550

Technical Specifications

• Contact Current Rating: 35 Amps
• Coil Voltage: 130 Volts
• Pick-Up Voltage: 111 to 134 Volts
• Drop-Out Voltage: 42 Volts
• Terminal Type: Six Quick Connect and #8-32 TPI Screw
• Approval: UL (Canada and US)
• Application: Central air conditioners, submersible pump motors, and motors above 1/3 HP with start capacitors
• Endurance: Up to 500,000 operations depending on load
