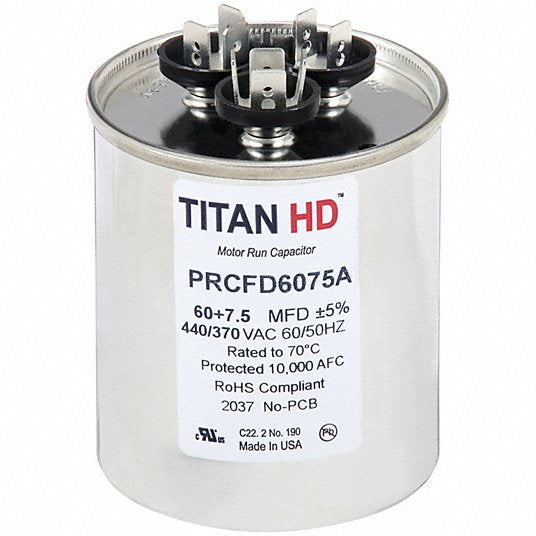

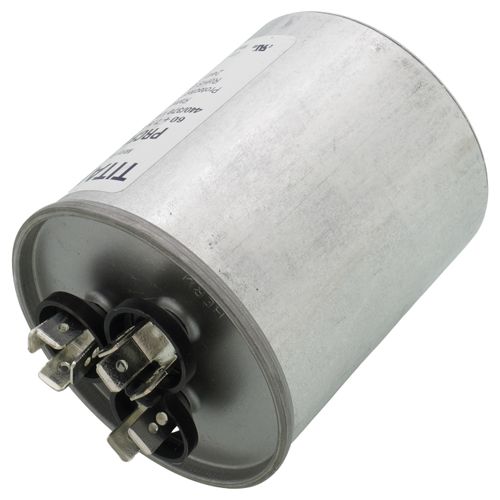

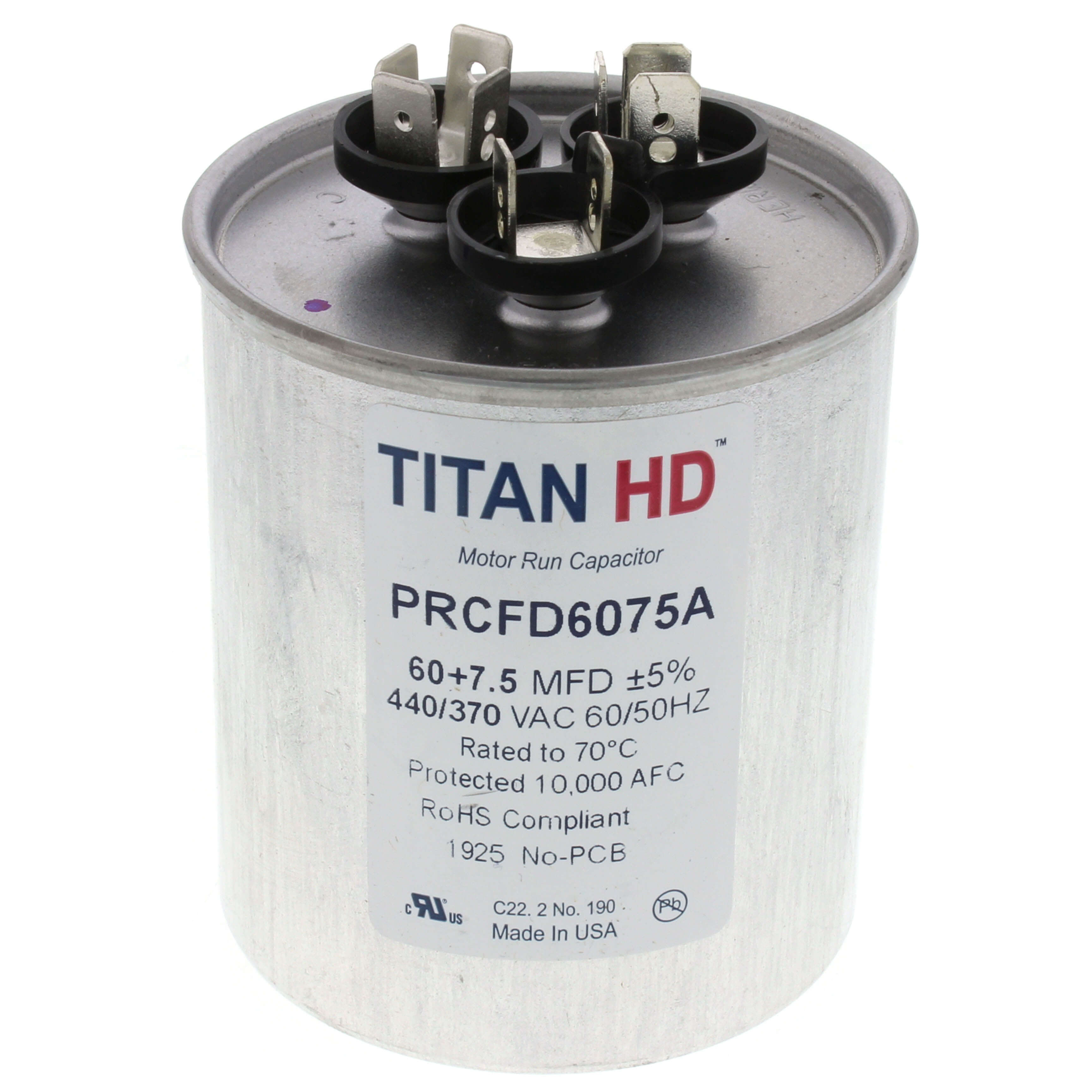

Titan Hd PRCFD6075A Motor Dual Run Cap, 60/7.5 MFD, 440V, Round

Product Description

The TITAN HD PRCFD6075A is a motor dual run capacitor with a 60/7.5 microfarad rating and 440V voltage. This capacitor has a round shape and operates at 60/50 Hz. It is designed with aluminum case material and steel cover material. It meets standards E136401, RoHS Compliant, and IEC 60252.

• Microfarad Rating: 60/7.5 MFD
• Voltage: 440V
• Operating Temperature Range: -40 Degrees to 70 Degrees C
• Terminal Type: 1/4 In. Male Quick-Connect

Product Highlights

The TITAN HD PRCFD6075A motor dual run capacitor is ideal for HVAC applications, offering reliable performance and durability with its robust construction and compliance with industry standards.

Product Information

Standard Information

• Brand: TITAN HD
• Manufacturer Part Number: PRCFD6075A
• Country of Origin: USA

Technical Specifications

• Microfarad Rating: 60/7.5
• Voltage: 440V
• Frequency: 60/50 Hz
• Shape: Round
• Diameter: 2-1/2 In.
• Case Height: 2-29/32 In.
• Overall Height: 3-13/32 In.
• EIA UL Base: A
• Terminal Type: 1/4 In. Male Quick-Connect
• Temperature Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: E136401, RoHS Compliant, IEC 60252
• Product Type: Capacitor
• Operating Temperature - Minimum: -40 °C
• Operating Temperature - Maximum: 70 °C
• Housing Height: 2-29/32 in
• Terminal Gender: Male
• Terminal Tab Width: 1/4 in
• Number of Terminals: 3
• Sub-brand: Titan HD
• EIA Tolerance Code: A
• Type: Run Capacitor, Dual Section, Round
• Used On: Motor
