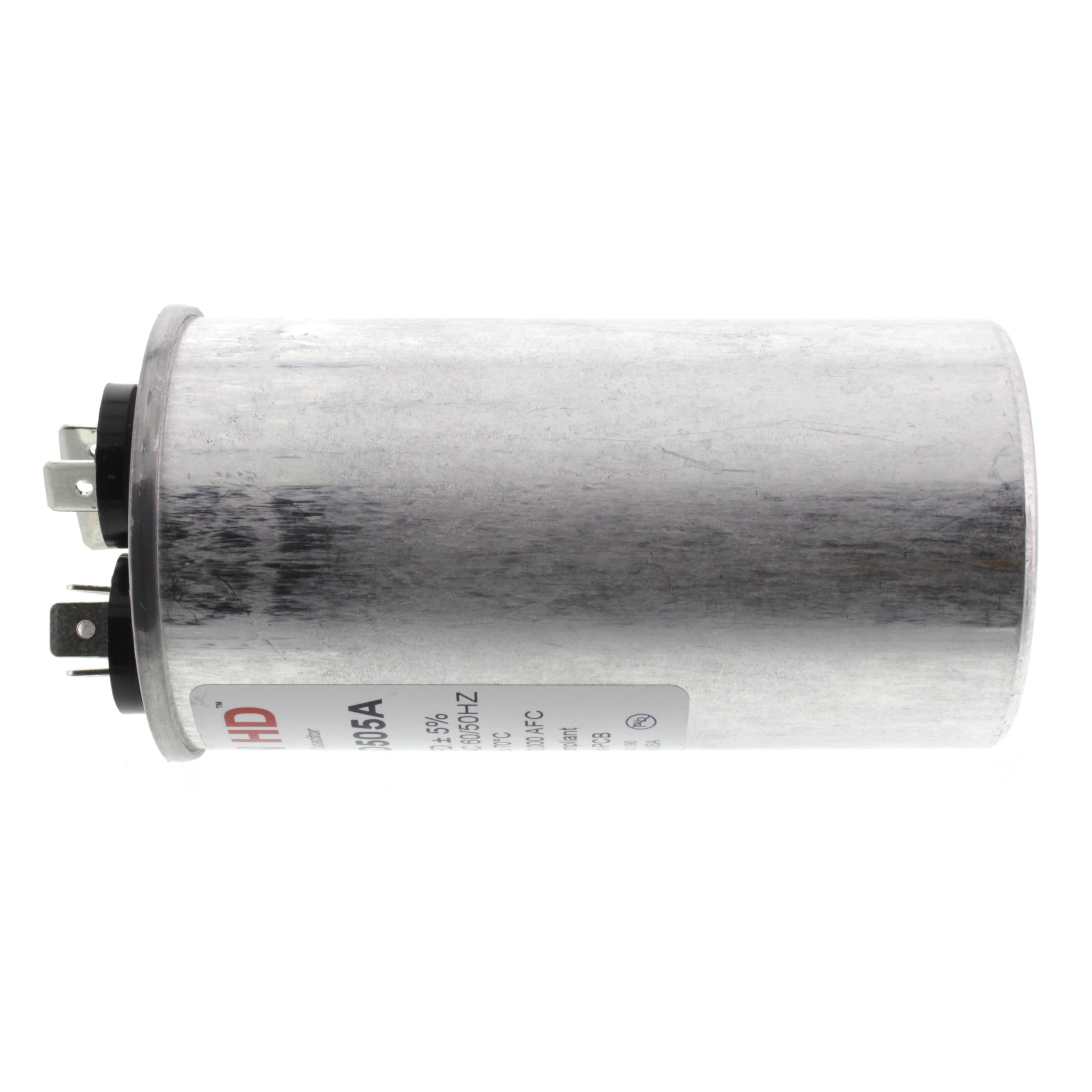

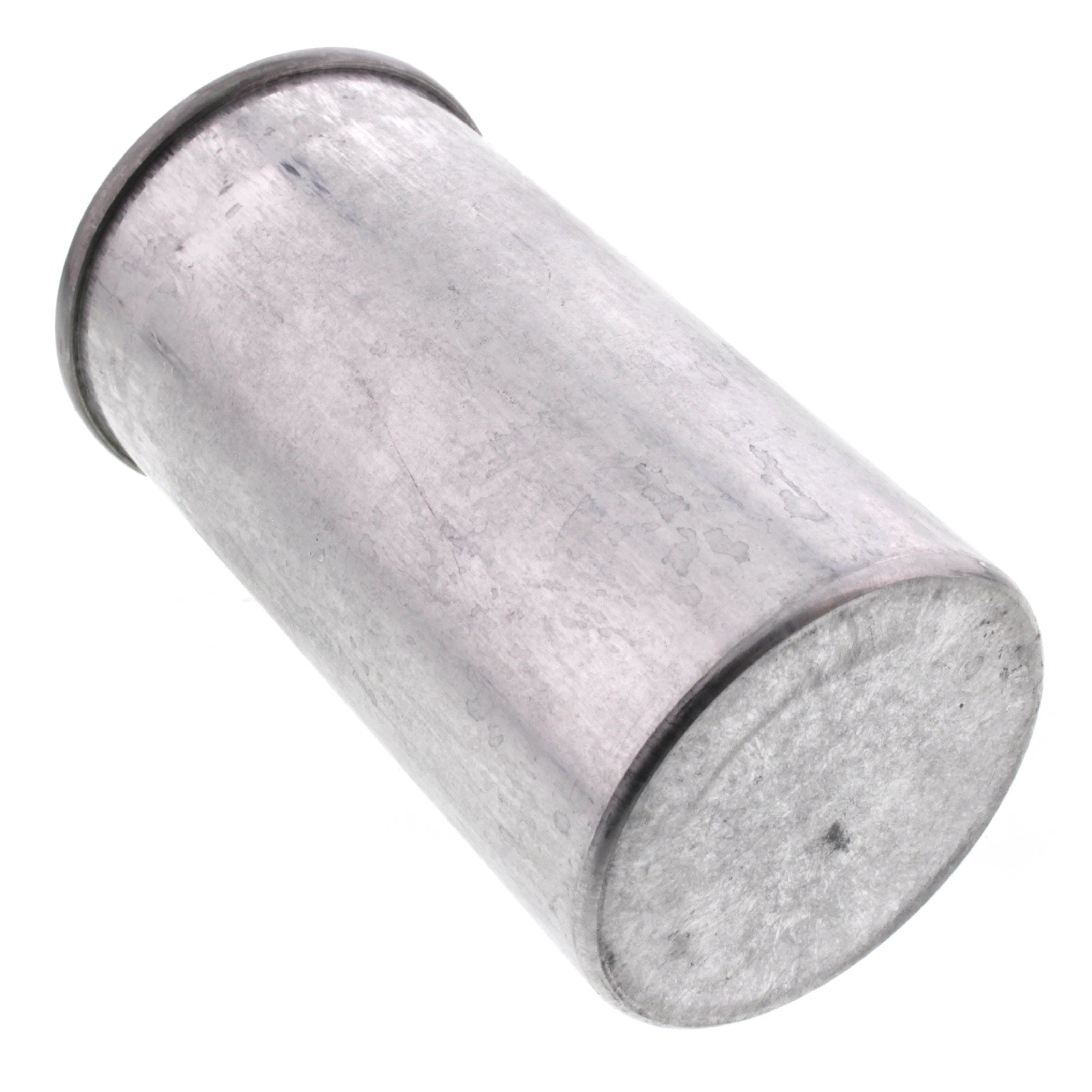

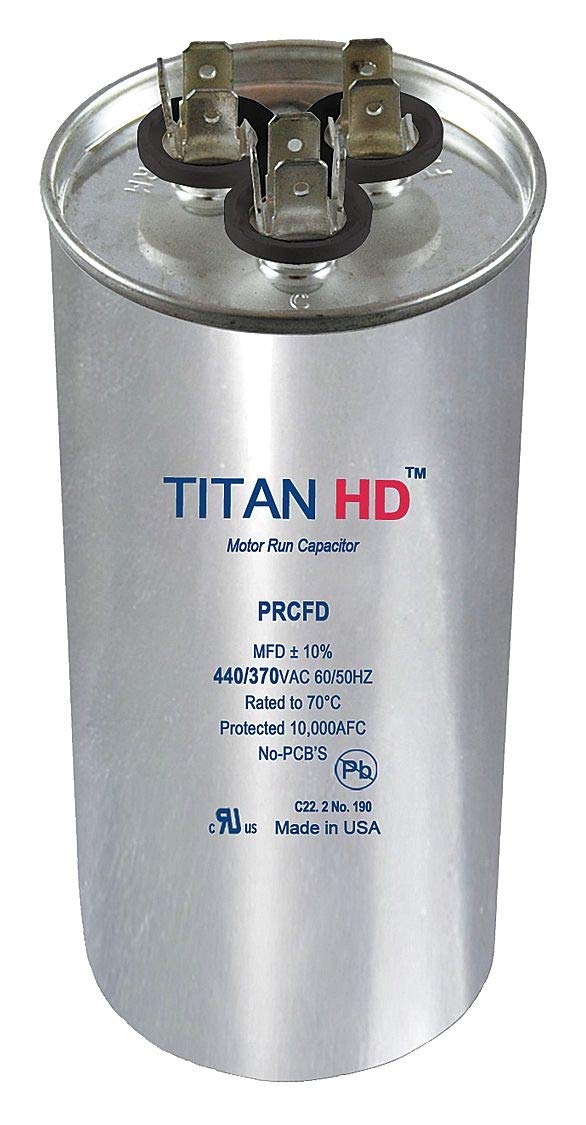

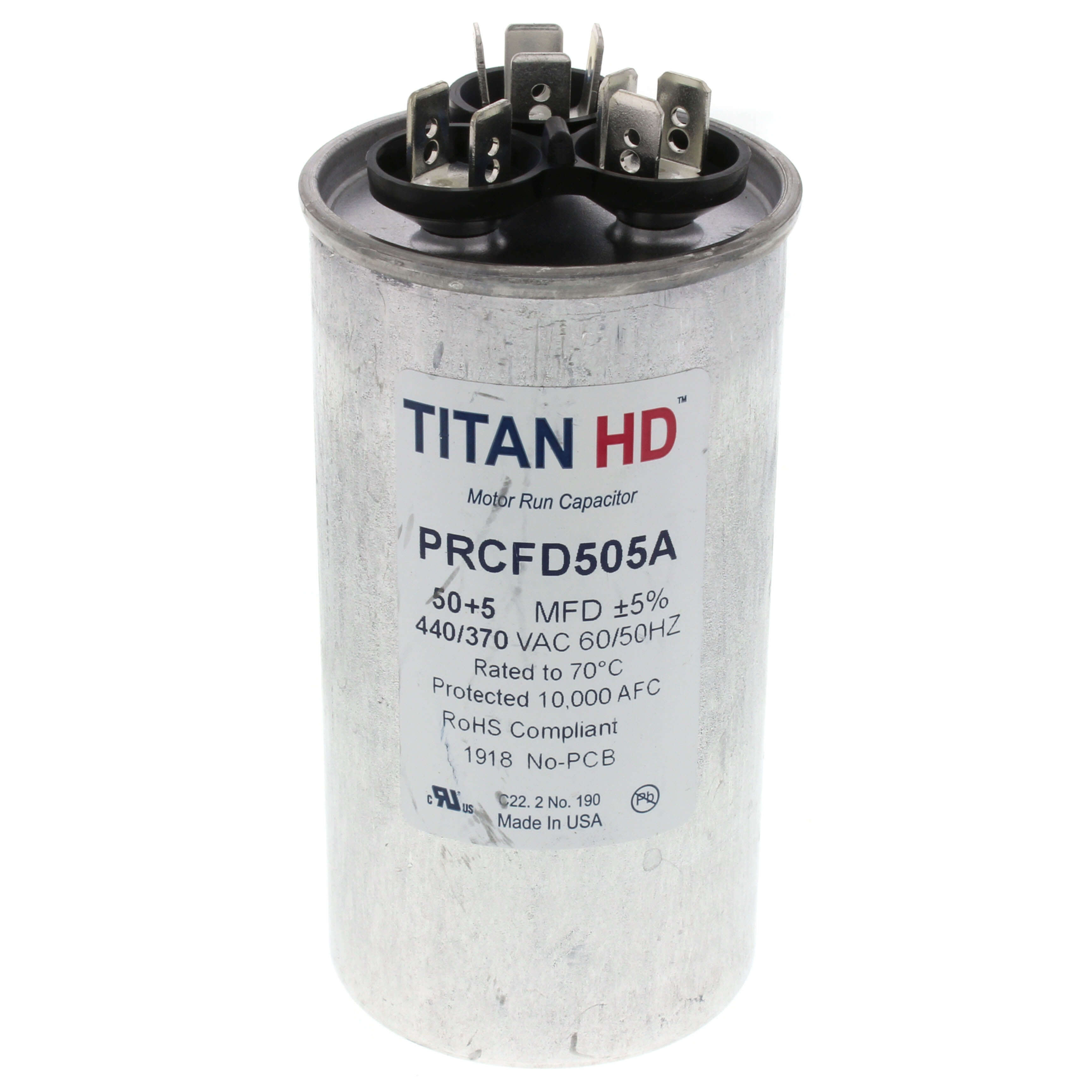

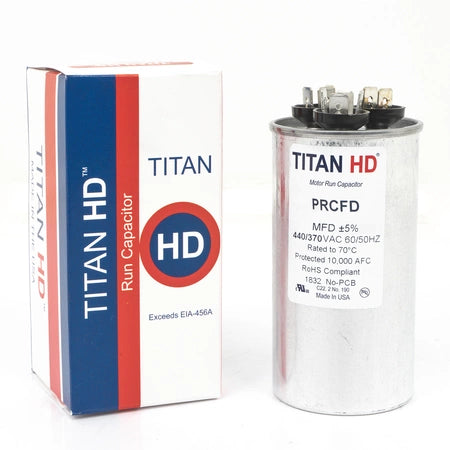

Titan Hd PRCFD505A Motor Dual Run Cap, 50/5 MFD, 440V, Round

Product Description

The TITAN HD PRCFD505A is a motor dual run capacitor, rated at 50/5 MFD and 440V, with a round shape. It meets EIA-456-A industry standards and features metalized polypropylene film technology for self-restoration. The capacitor also has a UL-approved pressure sensitive interrupter and uses environmentally-friendly oil for corrosion prevention and heat transfer.

• Rated at 50/5 MFD and 440V
• Features metalized polypropylene film technology
• Operating life of 60,000 hours

Product Highlights

This TITAN HD capacitor is designed for motor run applications, ensuring reliable performance and longevity.

Product Information

Standard Information

• Brand: TITAN HD
• Manufacturer Part Number: PRCFD505A
• Country of Origin: USA

Technical Specifications

• Item Model Number: PRCFD505A
• MFD: 50/5
• Shape: Round
• Voltage: 440/370V
• Product Type: Capacitor
• Operating Life: 60000 Hour
• Operating Temperature Rating: -40 to 70 Deg C
• Can Material: Aluminum
• Oil Type: Soybean Based
• Terminal Type: Standard blade
• Tolerance: +/-5 Percent
• Applicable Standard: EIA 456-A, UL, UL (Canada and US)
