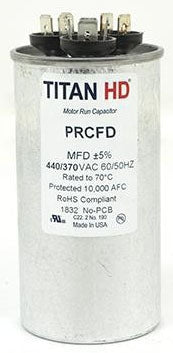

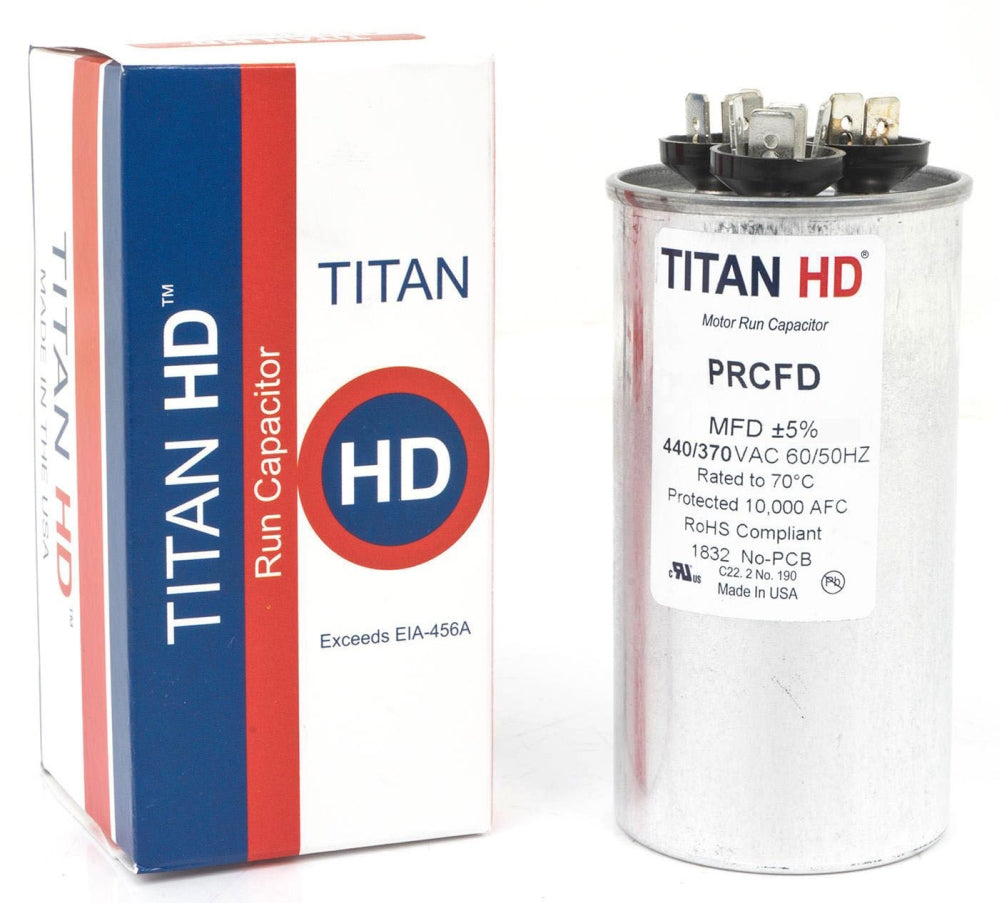

Titan HD PRCFD406A 40/6 MFD Round Dual Motor Run Capacitor 440/370V

Product Description

The Titan HD PRCFD406A is a dual run capacitor designed for motor applications. This capacitor features a capacitance of 40+6 microfarads and operates at a voltage rating of 440/370 volts AC, suitable for both 50 and 60 hertz applications. It is built with a round, dual section aluminum can that is oil-filled for improved performance and longevity.

• Capacitance: 40+6 microfarads
• Voltage Rating: 440/370 volts AC
• Operating Temperature: -40 to 70 degrees Celsius

Product Highlights

This capacitor is RoHS compliant and lead-free, ensuring it meets environmental standards. With up to 60,000 hours of operational life, it provides reliability for HVAC systems.

Product Information

Standard Information

• Brand: Titan HD
• Manufacturer Part Number: PRCFD406A

Technical Specifications

• Type: Run Capacitor, Round, Dual Section, Oil Filled
• Used On: Motor
• Capacitance: 40+6 microfarads
• Voltage Rating: 440/370 volts AC
• Can Size: 2 inches diameter x 3.84 inches height
• Can Material: Aluminum
• Oil Type: Soybean based

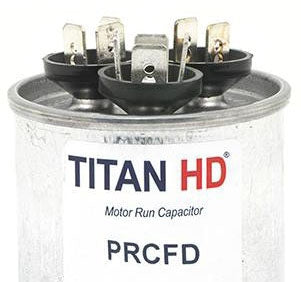

• Terminal Type: Standard Blade
• Operating Temperature Rating: -40 to 70 degrees Celsius
• Tolerance: +/-5 percent
• Approval: UL, CUL, IEC 60252
