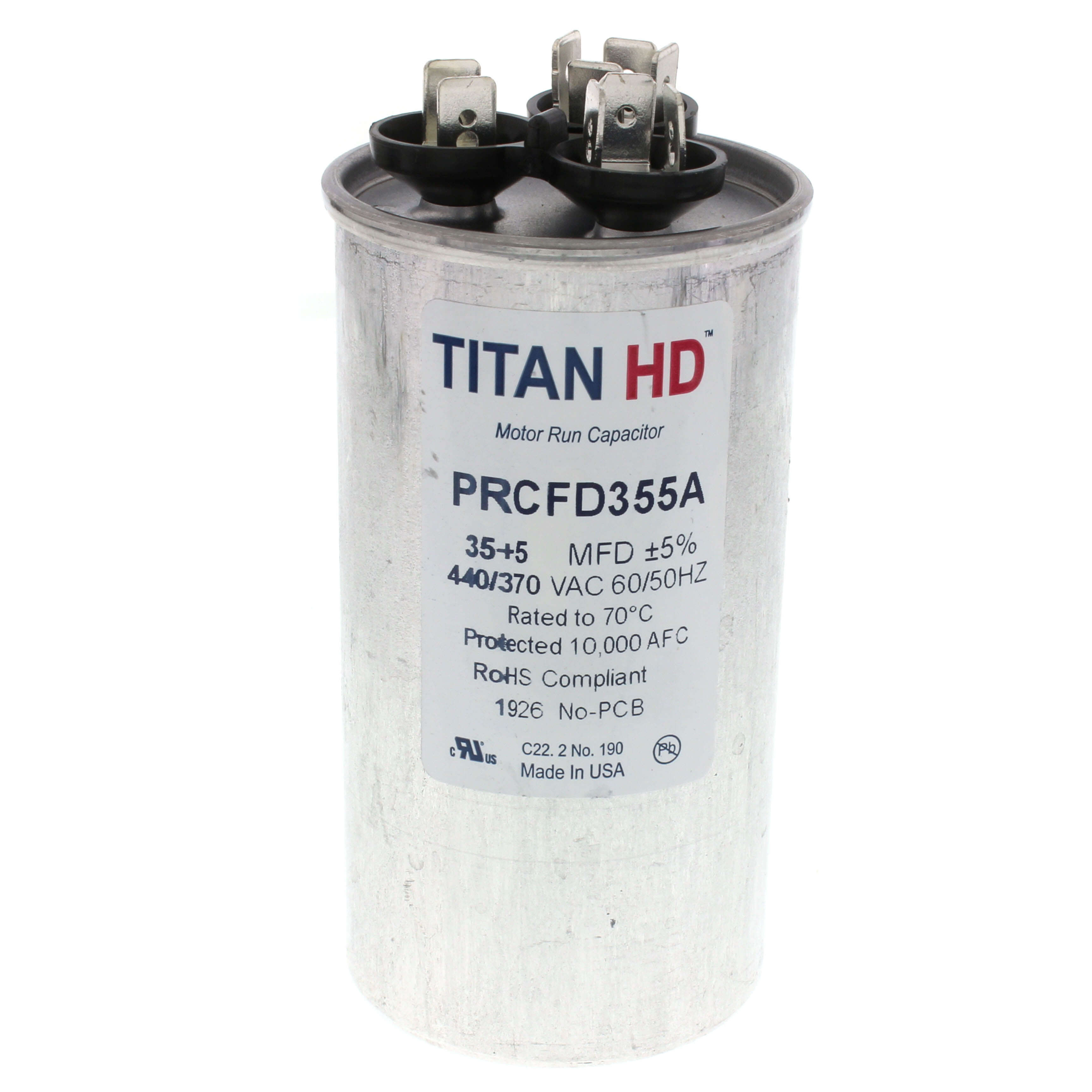

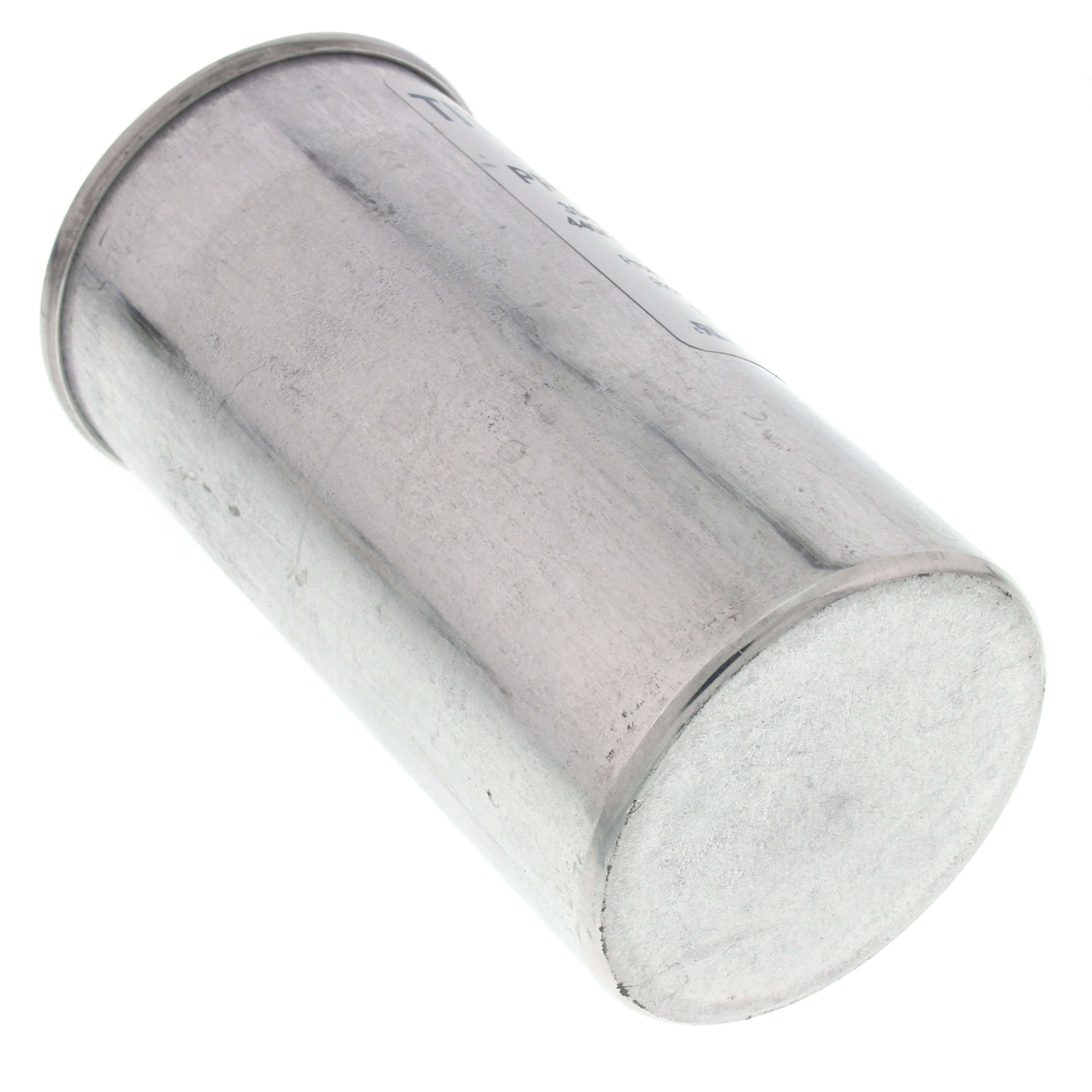

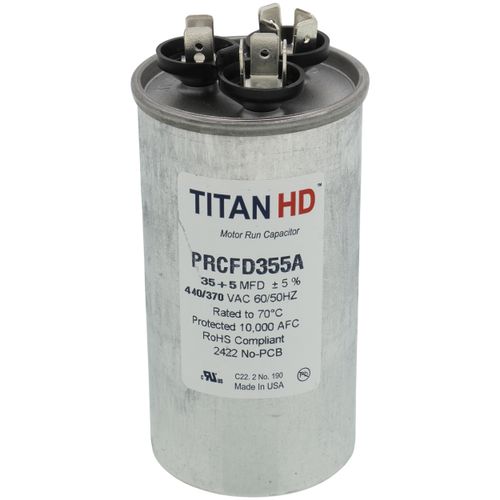

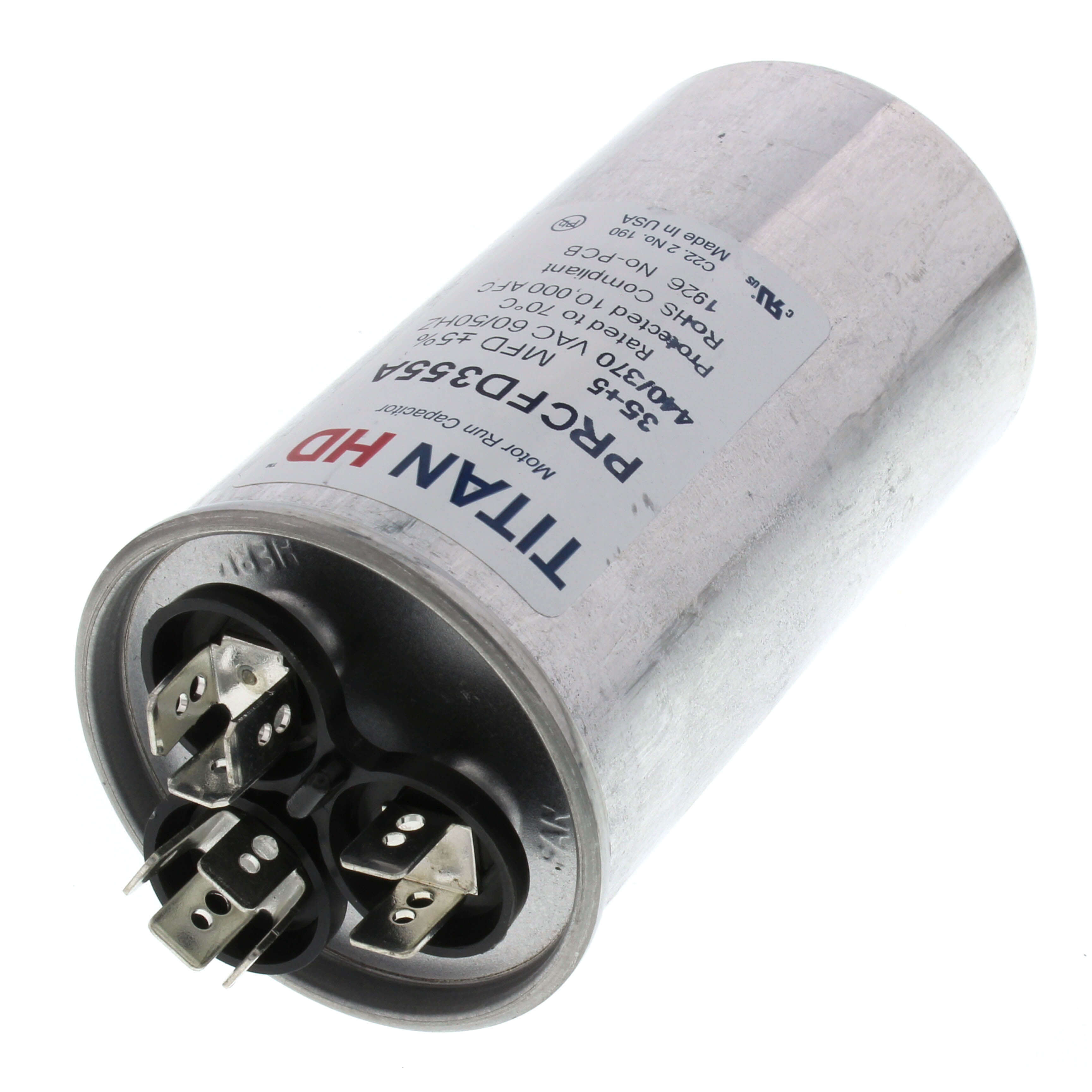

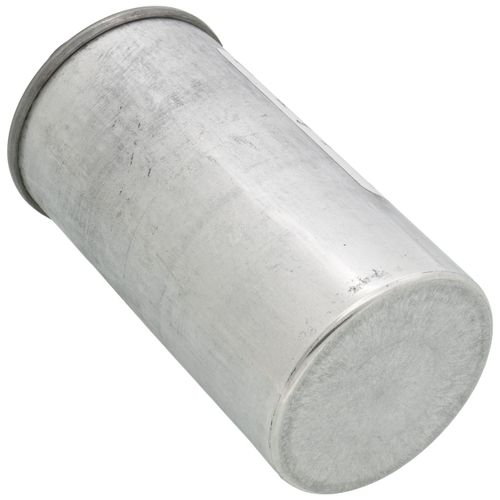

Titan Hd PRCFD355A 35/5 MFD Round Dual Motor Run Capacitor (440/370V)

Product Description

The TITAN HD PRCFD355A is a USA-made dual motor run capacitor designed to provide contractors with confidence. It features a substantial 60,000 hours of operating life and meets the rigorous EIA-456-A industry standard for performance and quality. The capacitor utilizes metalized polypropylene film technology for self-restoration.

• Made in USA
• 60,000 hours operating life
• Metalized polypropylene film technology for self-restoration

Product Highlights

This round, dual motor run capacitor has a 35/5 MFD rating and operates at 440/370V. It is suitable for use with electric motors.

Product Information

Standard Information

• Brand: TITAN HD
• Manufacturer Part Number: PRCFD355A
• Country of Origin: USA

Technical Specifications

• MFD: 35/5
• Shape: Round
• Voltage: 440/370V AC
• Product Type: Capacitor
• Width (Inches): 2"
• Height (Inches): 2.88"
• Diameter (Inches): 2"
• Frequency: 60/50 Hz
• Item: Motor Dual Run Capacitor
• Standards: cUL, IEC 60252, RoHS Compliant, UL
• Case Height: 3.84375 in
• EIA UL Base: A
• Temp. Range: -40 Degrees to 70 Degrees C
• For Use With: Electric Motors
• Case Material: Aluminum
• Overall Depth: 2 in
• Overall Width: 2 in
• Terminal Type: 1/4 in Male Quick-Connect
• Cover Material: Steel
• Overall Height: 4.34375 in
• Capacitor Shape: Round
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1.0
• Capacitor Voltage: 440/370V AC
• Microfarad Rating: 35/5
• EIA Tolerance Code: A
• Terminal Tab Width: 1/4 in
• Number of Terminals: 3.0
• Motor Capacitor Type: Motor Dual Run Capacitor
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
