Product Description

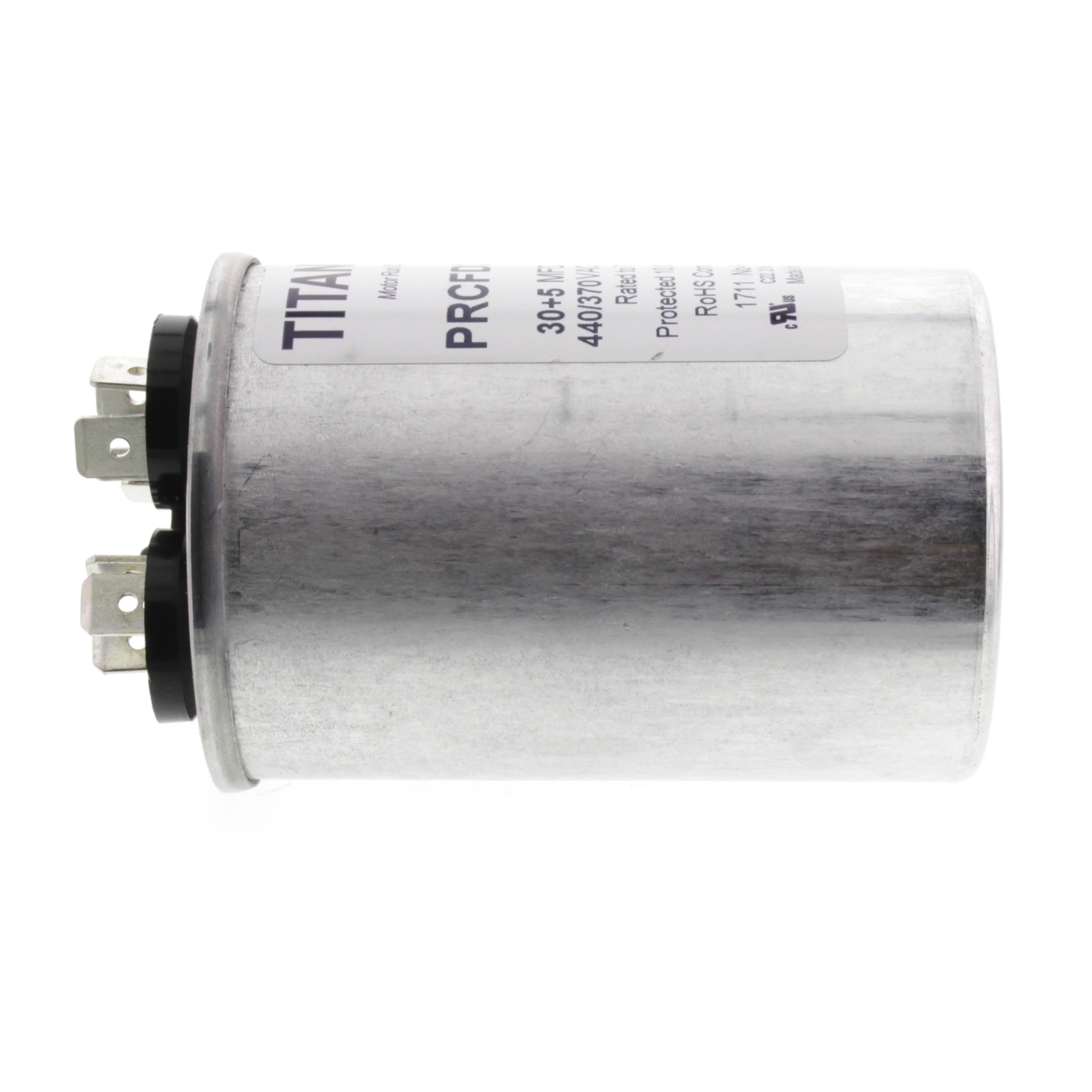

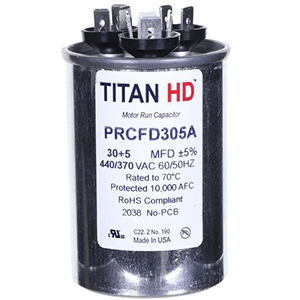

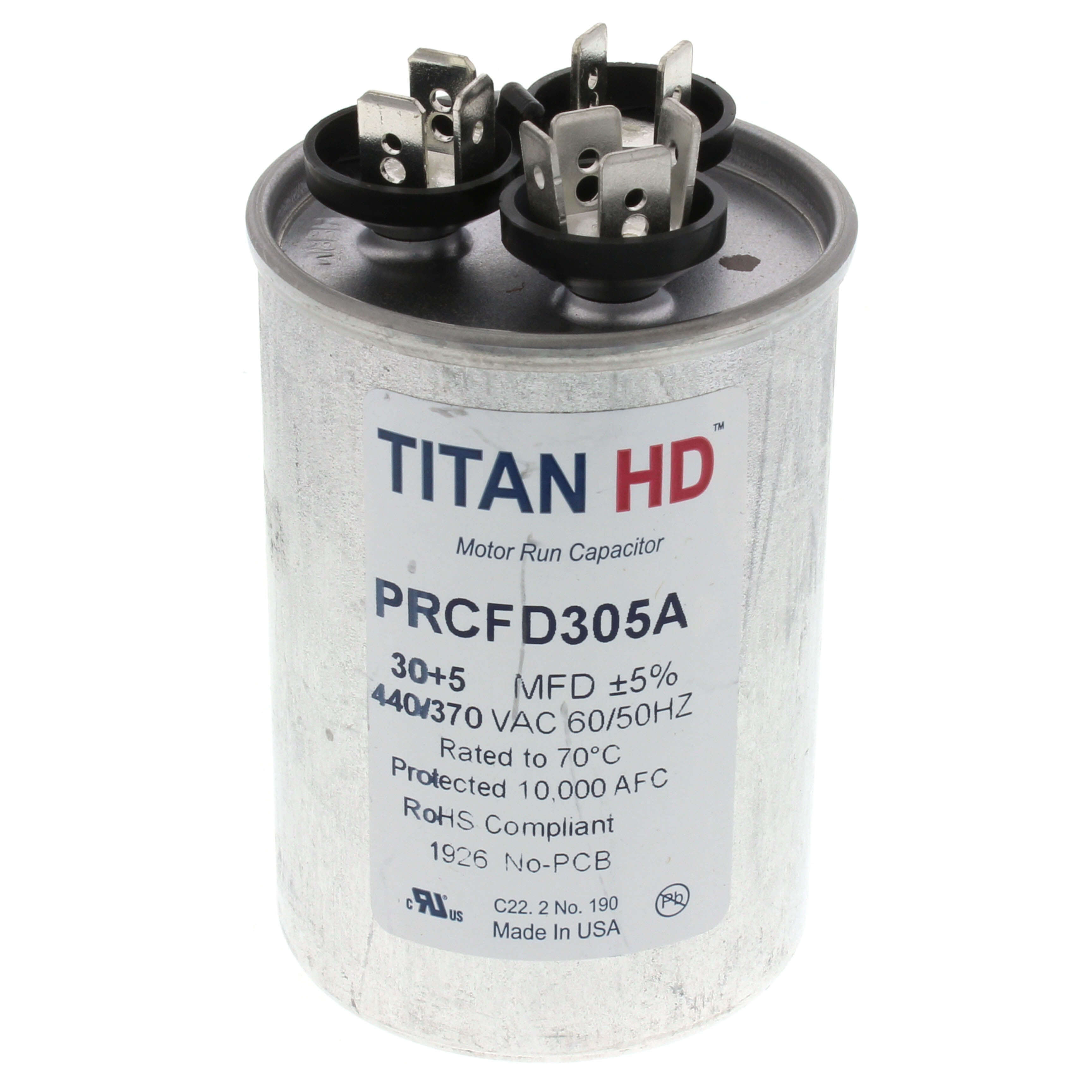

The TITAN HD PRCFD305A is a USA-made dual motor run capacitor with a 30/5 MFD rating and a voltage of 440/370V. It features metalized polypropylene film technology for self-restoration and a UL-approved pressure sensitive interrupter. The capacitor uses an environmentally-friendly oil for corrosion prevention and heat transfer.
- Made in USA
- 60,000 hours operating life
- Meets the rigorous EIA-456-A industry standard for performance and quality
Product Highlights
This capacitor provides contractors with confidence on the job. It has an eye-catching packaging for retail environment.
Product Information
Standard Information
-
Brand: TITAN HD
-
Manufacturer Part Number: PRCFD305A
-
Country of Origin: USA
Technical Specifications
-
MFD: 30/5
-
Shape: Round
-
Voltage: 440/370V
-
Product Type: Capacitor
-
Width (Inches): 2"
-
Height (Inches): 2.88"
-
Diameter (Inches): 2"
-
Hz: 60/50
-
Frequency: 60/50 Hz
-
Standards: cUL, IEC 60252, RoHS Compliant, UL
-
EIA UL Base: A
-
Temp. Range: -40 Degrees to 70 Degrees C
-
For Use With: Electric Motors
-

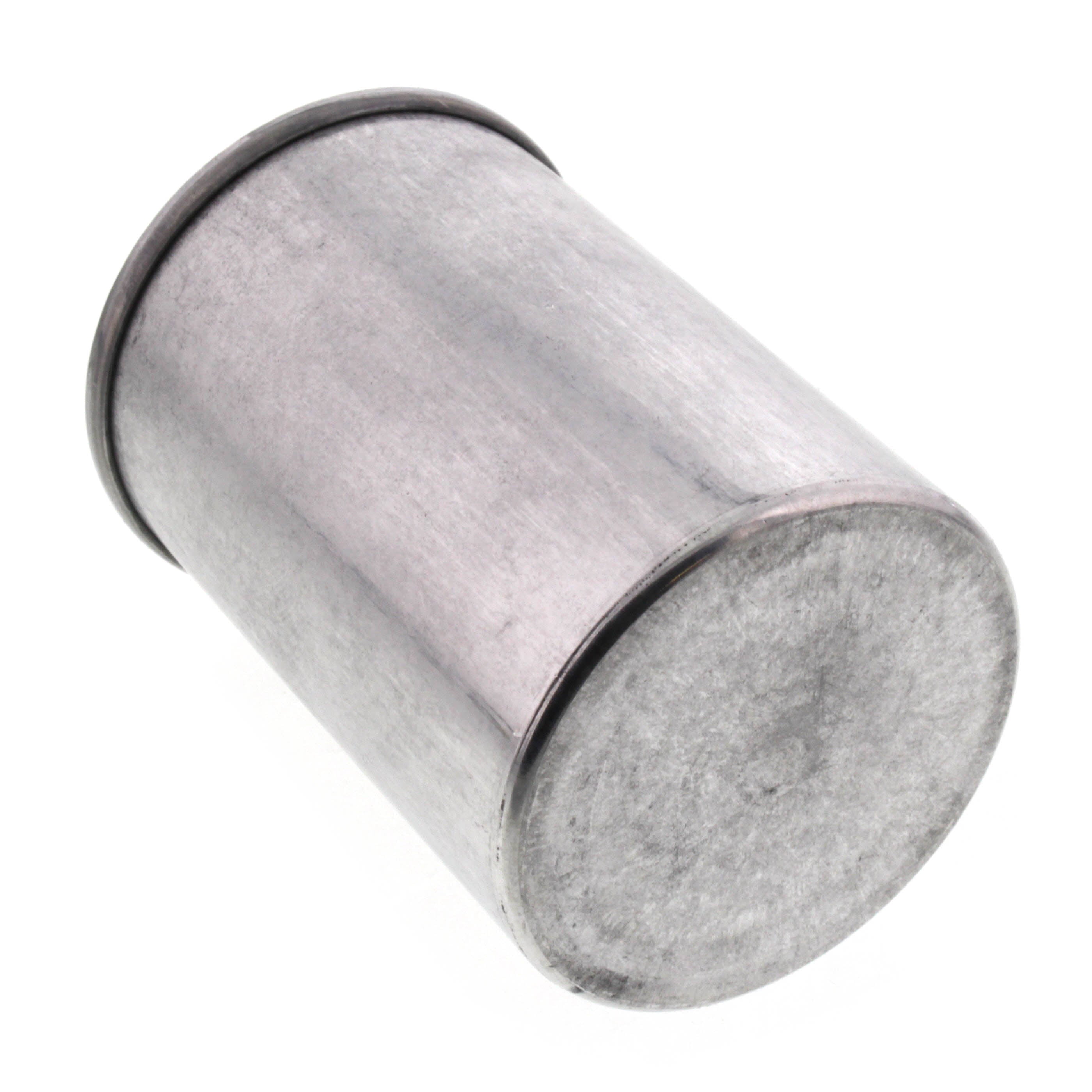

Case Material: Aluminum
-
Overall Depth: 2 in
-
Overall Width: 2 in
-
Terminal Type: 1/4 in Male Quick-Connect
-
Cover Material: Steel
-
Overall Height: 3 13/32 in
-
Capacitor Shape: Round
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Pieces: 1
-
Capacitor Voltage: 440/370V AC
-
Microfarad Rating: 30/5
-
EIA Tolerance Code: A
-
Terminal Tab Width: 1/4 in
-
Number of Terminals: 3
-
Motor Capacitor Type: Motor Dual Run Capacitor
-
Terminal Designations: Standard
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
-

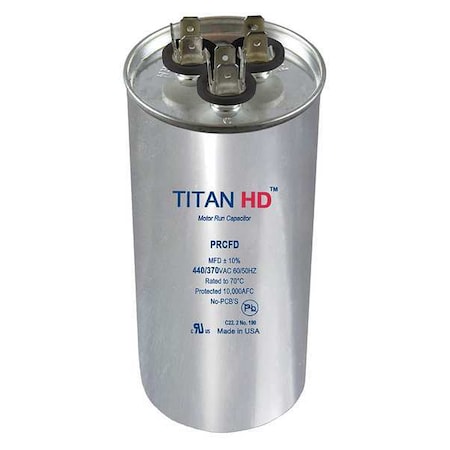

Series: PRCFD Series
-
MFD Rating: 30+5 uF
-
Voltage Rating: 370/440 VAC
-
Frequency Rating: 50/60 Hz
-
Average Life: 60000 hr
-
Standard Tolerance: +/-5 %
-
Temperature Rating: -40 to 70 deg C
-
Brand: Diversitech
