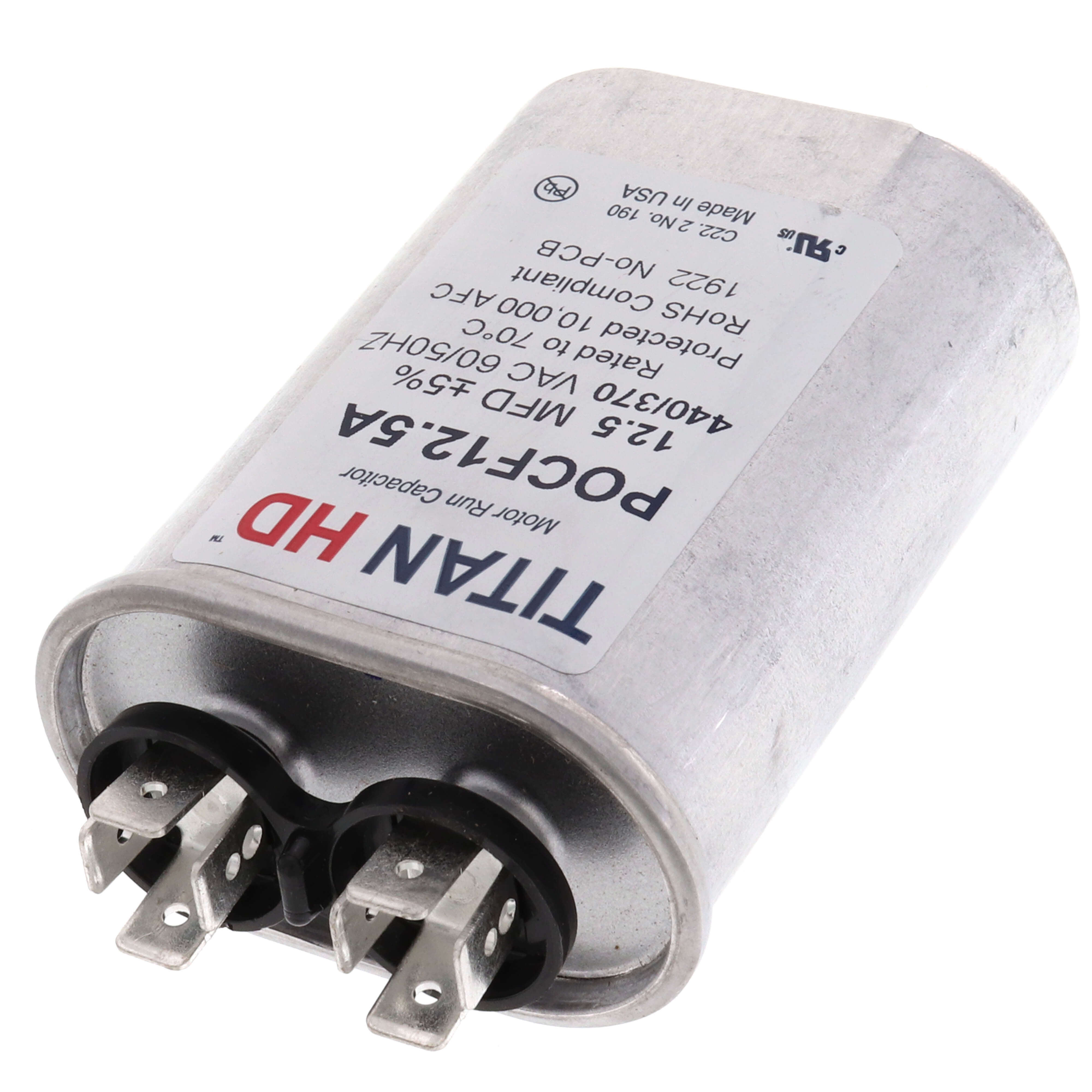

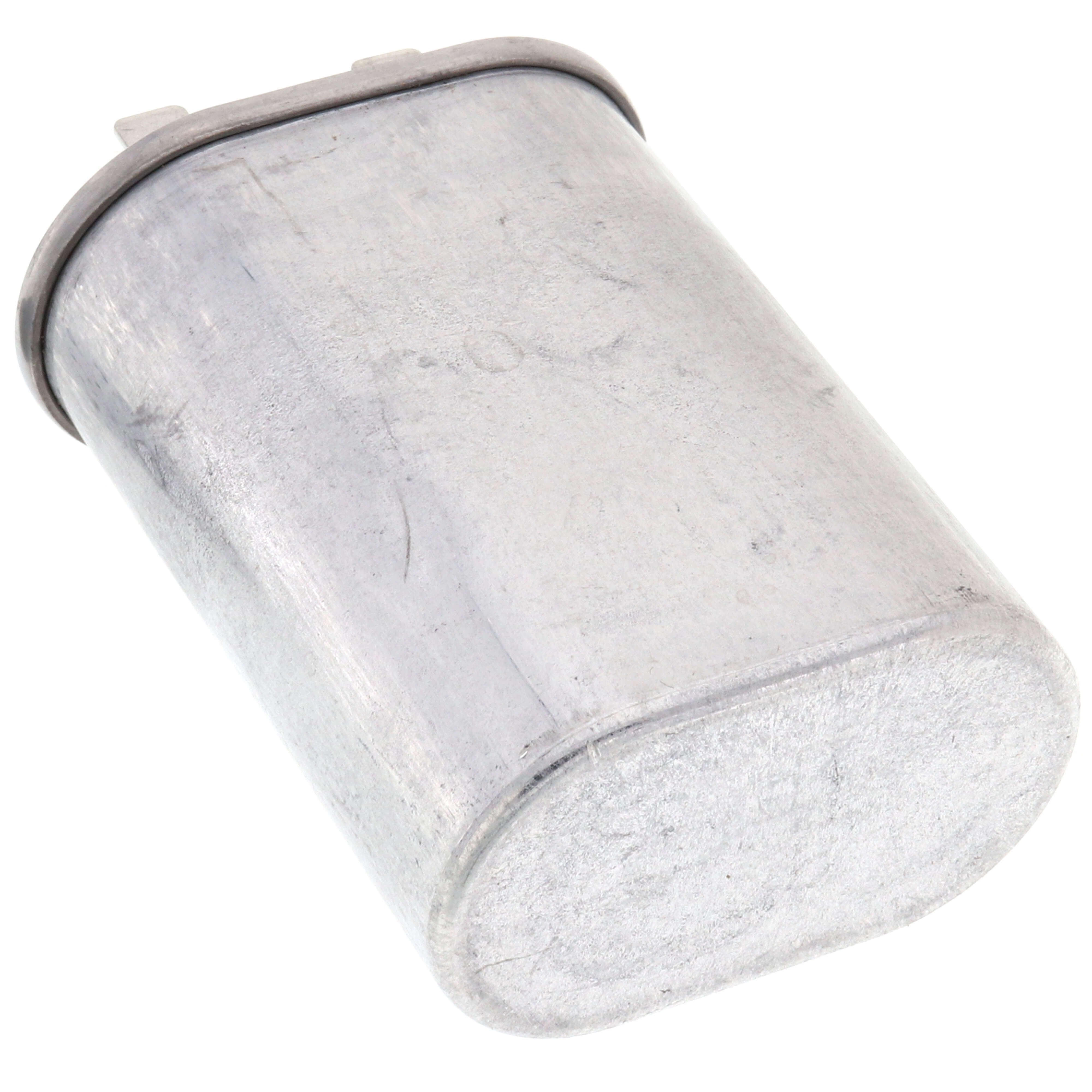

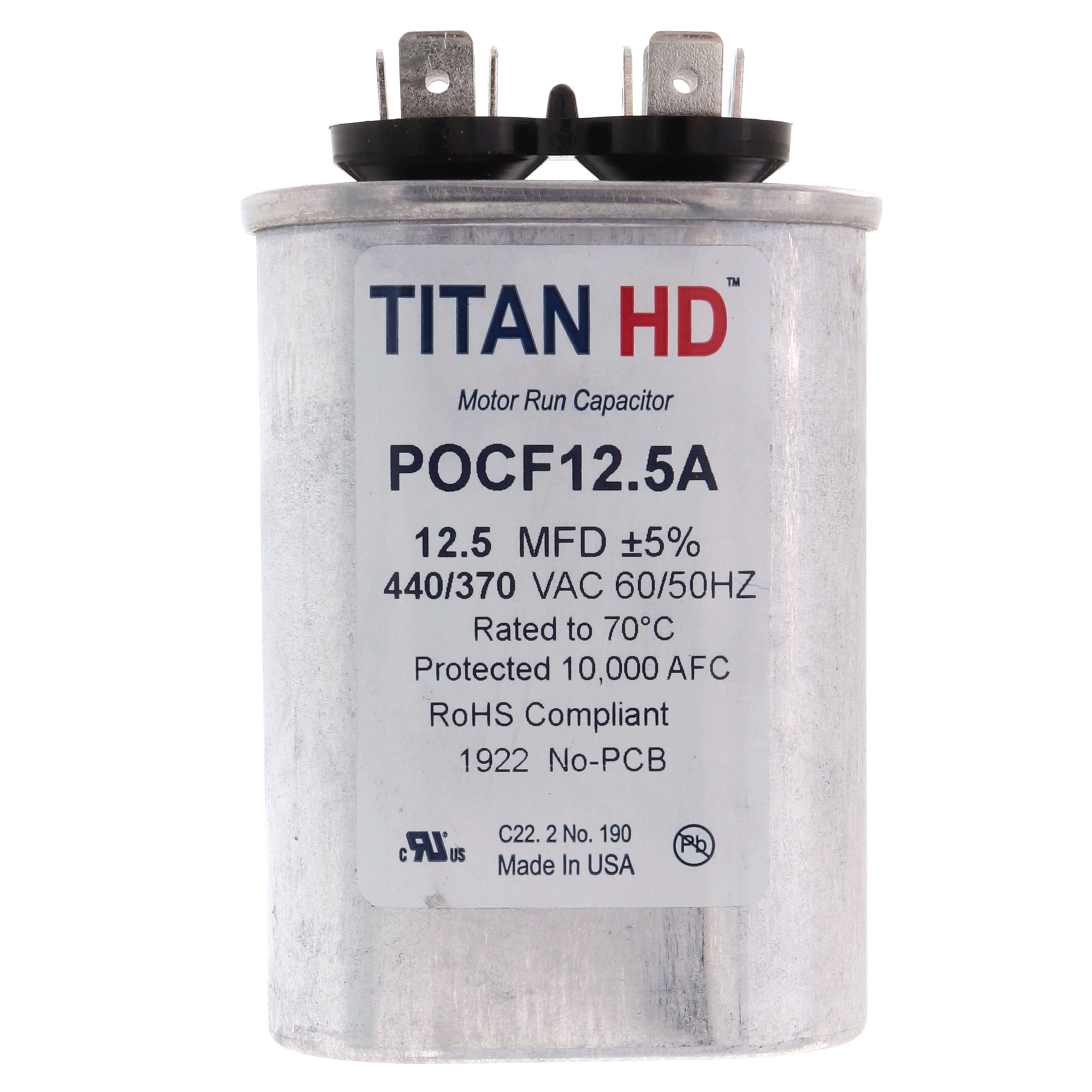

Titan Hd POCF12.5A 12.5 MFD Oval Motor Run Capacitor (440/370V)

Product Description

The TITAN HD POCF12.5A is a 12.5 MFD oval motor run capacitor rated at 440/370V. It is designed to provide contractors with confidence on the job with a substantial 60,000 hours of operating life. It meets the rigorous EIA-456-A industry standard for performance and quality and contains metalized polypropylene film technology for self-restoration.

• Made in USA
• 60,000 hours operating life
• Sophisticated UL-approved pressure sensitive interrupter to remove the capacitor from circuit at end of life

Product Highlights

This capacitor provides the necessary phase shift for proper motor operation in air conditioning and heat pump systems. It features patented, environmentally-friendly oil that prevents corrosion and aids in optimum heat transfer.

Product Information

Standard Information

• Brand: TITAN HD
• Manufacturer Part Number: POCF12.5A
• Country of Origin: USA

Technical Specifications

• MFD: 12.5
• Shape: Oval
• Voltage: 440/370V
• Product Type: Capacitor
• Depth (Inches): 1.25
• Width (Inches): 2
• Height (Inches): 2.19
• Type: Run Capacitor, Oval, 1-Section
• Used On: Motor
• Capacitance: 12.5 MFD
• Voltage Rating: 440/370 Volt
• Application: Air conditioning and heat pump systems
