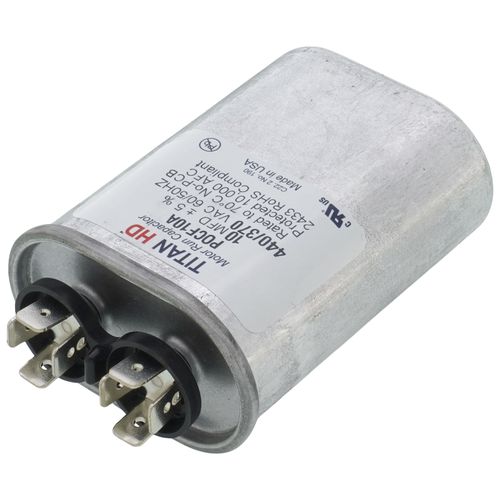

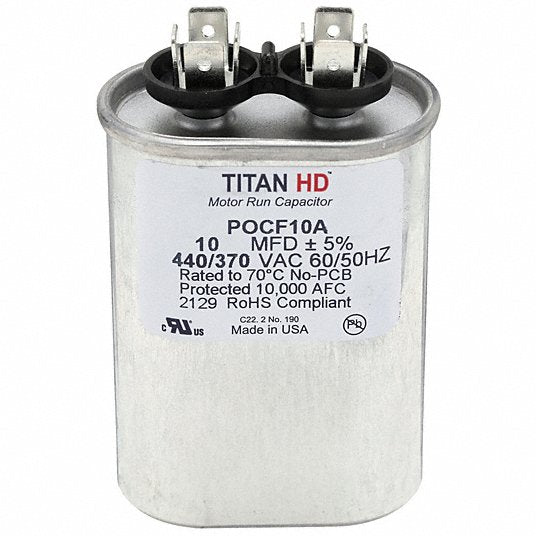

Titan Hd POCF10A Motor Run Capacitor 10 MFD 440V Oval

Product Description

The TITAN HD POCF10A motor run capacitor is an oval-shaped capacitor with a 10 MFD rating and 440V voltage. It operates at 60/50 Hz and features an aluminum case and steel cover. Designed for continuous heavy-duty applications such as air conditioning and refrigeration.

• Microfarad Rating: 10 MFD
• Voltage: 440V
• Operating Temperature Range: -40 Degrees to 70 Degrees C
• Terminal Type: 1/4 In. Male Quick-Connect

Product Highlights

This motor run capacitor is suitable for use with electric motors and meets EIA-456-A industry standards.

Product Information

Standard Information

• Brand: TITAN HD
• Manufacturer Part Number: POCF10A
• Country of Origin: USA

Technical Specifications

• Microfarad Rating: 10
• Voltage: 440/370V AC
• Frequency: 60/50 Hz
• Shape: Oval
• Case Height: 2.1875 In.
• Overall Height: 2.6875 In.
• Overall Width: 2 In.
• Overall Depth: 1.25 In.
• EIA UL Base: A
• Terminal Type: 1/4 In. Male Quick-Connect
• Temperature Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: E136401, RoHS Compliant, IEC 60252
• Product Type: Capacitor
• For Use With: Electric Motors
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1.0
• Capacitor Voltage: 440/370V AC
• EIA Tolerance Code: A
• Terminal Tab Width: 0.25 in
• Number of Terminals: 2.0
• Motor Capacitor Type: Motor Run Capacitor
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• Housing Shape: Oval
• Capacitance: 10 MFD
• Operating Temperature - Minimum: -40 °C
• Operating Temperature - Maximum: 70 °C
• Housing Material: Aluminum
• Terminal Connection Type: Quick Connect
• Sub-brand: Titan HD
• Mfd: 10
• Volts: 440
• Interchange Part Number: POCF10A
• Manufacturer Part Number: POCF10A
• UPC: 840899105277
