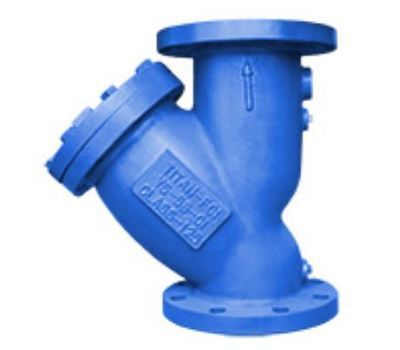

TITAN FLOW CONTROL YS58I0250-20 2-1/2 in. Flanged Cast Iron Wye Strainer

Product Description

The TITAN FLOW CONTROL YS58I0250-20 is a reliable 2-1/2 inch flanged cast iron wye strainer designed for efficient filtration in various fluid systems. This wye strainer features convenient gauge taps on both the inlet and outlet sides, facilitating easy access for maintenance. Its large body and straining element ensure excellent open area ratios, typically two and a half times larger than the corresponding pipeline. The precision machined screen seats provide accurate positioning during reassembly after cleaning.

• Self-cleaning capability with tapped NPT blow-off connection
• Epoxy painted for rust and corrosion resistance
• NSF/ANSI and FDA approved for potable water applications

Product Highlights

This wye strainer supports effective filtration and maintenance in pipelines. It is suitable for various applications, including potable water and food contact systems.

Product Information

Standard Information

• Brand: TITAN FLOW CONTROL
• Model Number: YS58I0250-20

Technical Specifications

• Material: Cast Iron
• Product Type: Wye Strainer
• Selling Size: 2-1/2 inches
• Catalog Number: YS58I0250-20
• Specifications Met: ASTM A126 Grade B Class 125
• Maximum Pressure Rating: 200 PSI
• Maximum Temperature Rating: +150 degrees F
• Width: 10 inches
