TITAN FLOW CONTROL YS55BZ0250 Y-Strainer 125# 2-1/2 in

Product Description

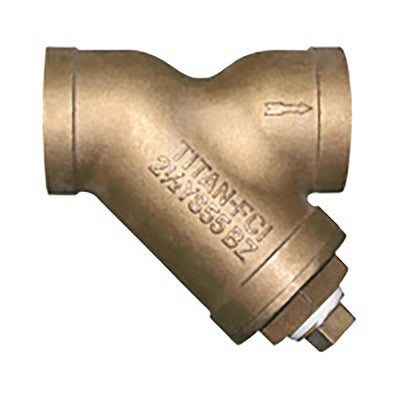

The TITAN FLOW CONTROL YS55BZ0250 is a Y-Strainer designed for mechanical removal of debris from pipelines. It has a bronze body and uses a cylindrical straining element to filter out particles from the fluid flow.

• Constructed with a bronze body (ASTM B584).
• Includes a stainless steel straining element with 1/16 inch perforation.
• Suitable for pumps, meters, spray nozzles, compressors, and turbines.

Product Highlights

The Y-Strainer is appropriate for horizontal or vertical installation and requires periodic screen cleaning for effective operation.

Product Information

Standard Information

• Brand: TITAN FLOW CONTROL
• MPN: YS55BZ0250

Technical Specifications

• Series: YS55-BZ
• Nominal Size: 2-1/2 inches
• Body Material: Bronze
• Connection Type: FNPT
• Pressure Class: 125 lb
• Softgoods Material: PTFE
• WOG Rating: 200 PSI at 150F
• Screen: Standard 1/16 perforation
• Weight: 9.5 lbs
• Standards and Approvals: ANSI Class 125 | ASME/ANSI B16.15 | ASTM B-584 Body | UNS C84400
