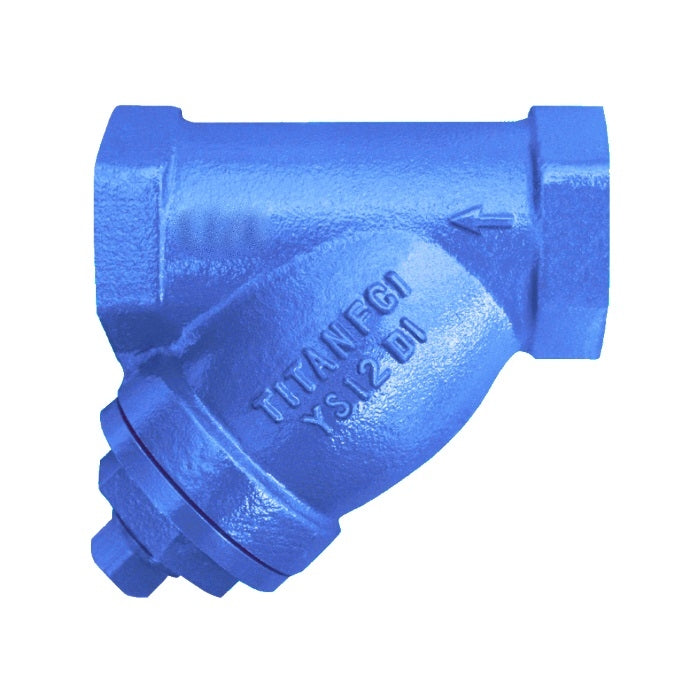

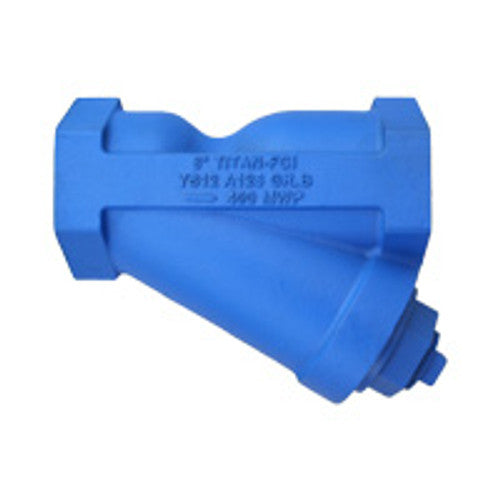

Titan Flow Control YS12I0300 YS12-CI Wye Strainer, 3 in, 10 in OAL, Thread Connection, Grafoil Softgoods, Import

Product Description

The Titan Flow Control YS12I0300 YS12-CI wye strainer is designed to effectively remove debris from pipelines. This strain relief device features a three-inch size with a total length of ten inches. It has a threaded connection ideal for diverse installations in both horizontal and vertical orientations.

• Large straining capacity with high open area ratios.
• Precision machined screen seats for optimal positioning.
• Equipped with blow-off for easy cleaning of the straining element.

Product Highlights

This wye strainer is essential for maintaining the efficiency of pipelines by preventing blockages caused by debris.

Product Information

Standard Information

• Brand: Titan Flow Control
• MPN: YS12I0300

Technical Specifications

• Blow-Off Size: 1-1/2 in NPT
• Body Material: Cast Iron
• Connection Type: Thread
• Finish: Epoxy Painted
• Nominal Size: 3 in
• Overall Length: 10 in
• Softgoods Material: Grafoil
• Pressure Class: 250#
• Maximum Temperature: 150°F
