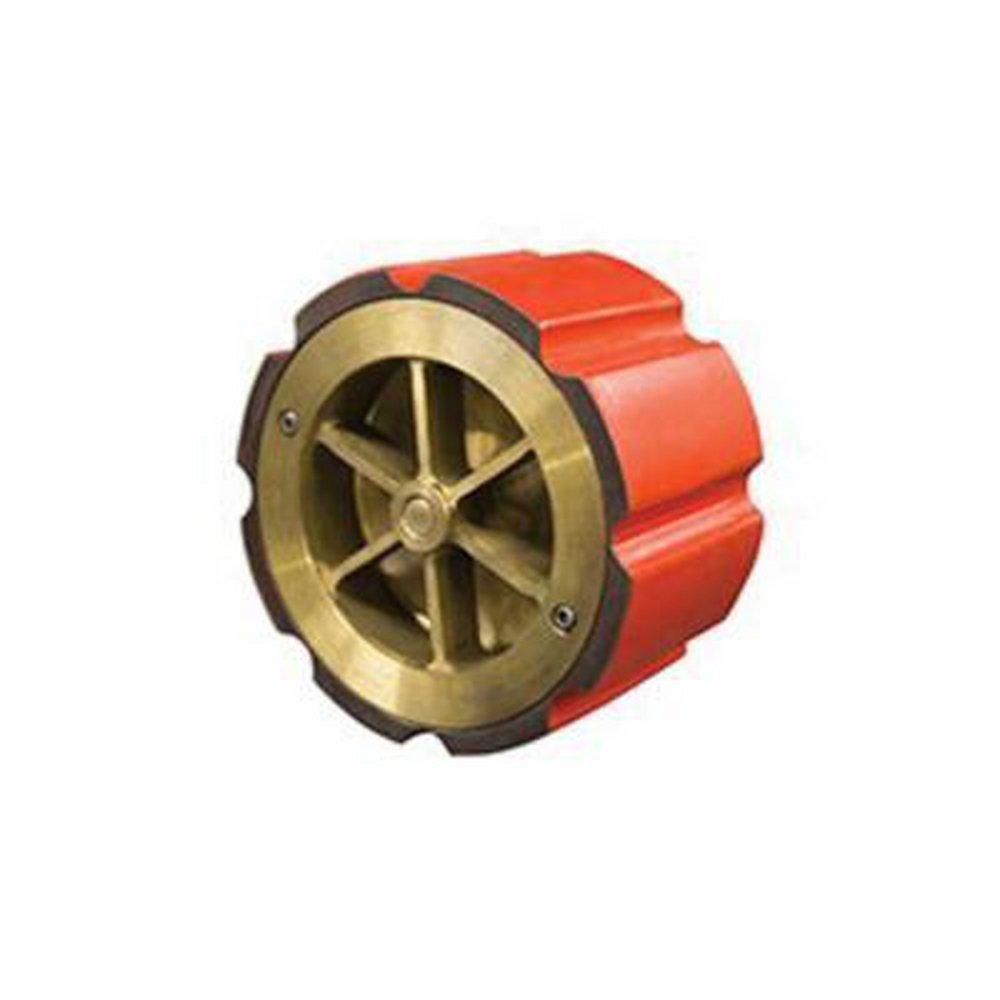

Titan Flow Control CV90DBB1200 CV90-DI Center Guided Wafer Silent Check Valve 12 in

Product Description

The TITAN FLOW CONTROL CV90DBB1200 CV90-DI is a center-guided wafer silent check valve designed to prevent backflow in piping systems. It features straightening vanes to reduce turbulence and minimize noise and erosion. The spring-assisted disc ensures quick closure to reduce water hammer. Suitable for installation in horizontal or vertical positions with upward flow.

• Install in horizontal or vertical position with upward flow
• Low pressure drop equivalent to a swing check
• Silent check valves efficiently perform all of the functions of a swing check or vertical lift check valves and at the same time operate silently to prevent the effects of water hammer

Product Highlights

This ductile iron body check valve has a flanged end style and is epoxy painted. It is designed for long service life and minimal head loss.

Product Information

Standard Information

• Brand: TITAN FLOW CONTROL
• Manufacturer Part Number: CV90DBB1200
• Country of Origin: United States

Technical Specifications

• Body Material: Ductile Iron
• End Style: Flanged
• Finish: Epoxy Painted
• Inlet to Outlet Length: 11-1/4 in
• Nominal Size: 12 In
• Pressure Class: 150/300 lb
• Pressure Rating: 250/640 psi WOG
• Series: CV90-DI
• Temperature Rating: 100 deg F
• Trim Material: 300 Stainless Steel/Buna-N/Aluminum Bronze
• Type: Center Guided Wafer
• Item: Silent Check Valve
• Size: 12"
• Trim: Stainless Steel or Bronze
• Seats: Aluminum Bronze with Buna-N O-ring
• ASME Class: ASME CLASS 150
