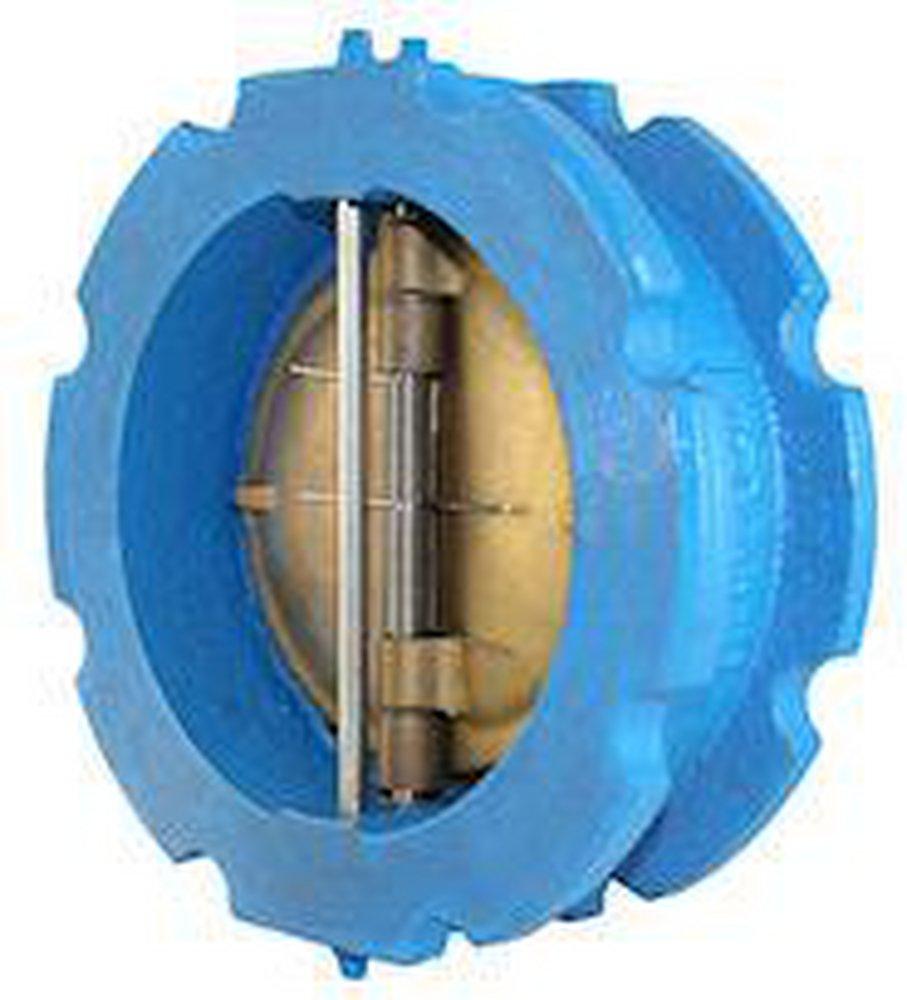

Titan Flow Control CV41DBB0600 CV 41-DI Dual Disc Wafer Check Valve 6 in

Product Description

The TITAN FLOW CONTROL CV41DBB0600 CV 41-DI series check valve is an automatic shut-off valve used for preventing backflow or drainage in piping systems. It features a cost-efficient design, minimal head loss, and quick closure to reduce water hammer. The ductile iron body maintains anti-corrosive properties with a yield strength comparable to carbon steel.

• Minimal head loss
• Reduced water hammer
• Cost efficient design
• Long service life

Product Highlights

This dual disc wafer check valve is designed to prevent backflow, protect pumps, and ensure system integrity with its durable construction and efficient operation.

Product Information

Standard Information

• Brand: TITAN FLOW CONTROL
• Manufacturer Part Number: CV41DBB0600
• Country of Origin: United States

Technical Specifications

• Body Material: Ductile Iron
• End Style: Flanged
• Finish: Epoxy Painted
• Inlet to Outlet Length: 6 in
• Nominal Size: 6 In
• Pressure Class: 150 lb
• Pressure Rating: 250 psi WOG
• Series: CV 41-DI
• Temperature Rating: 100 deg F
• Trim Material: 300 Stainless Steel/Buna-N/Aluminum Bronze
• Type: Dual Disc Wafer
• Size: 6"
• Seat Material: Buna-N, Viton, or EPDM
• Disc Material: Aluminum Bronze or Series 300 Stainless Steel
