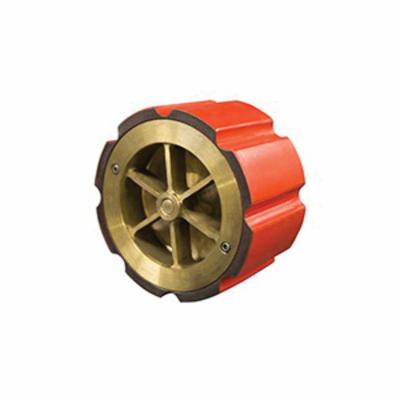

Titan CV90DBB0600 Center Guided Wafer Silent Check Valve

Product Description

The Titan CV90DBB0600 is a center guided wafer silent check valve designed to prevent backflow in piping systems. This automatic shut-off valve is commonly used on the discharge side of pumps to safeguard against drainage and backflow that could damage equipment.

• Operates at a pressure rating of two hundred fifty to six hundred forty psi WOG.
• Features a ductile iron body with a durable epoxy painted finish.
• Designed for low cracking pressure to enhance efficiency.

Product Highlights

Ideal for various applications, this valve is engineered to reduce noise and vibrations while maintaining reliable shut-off performance.

Product Information

Standard Information

• Manufacturer: Titan Flow Control
• Brand: Titan

Technical Specifications

• Body Material: Ductile Iron
• Dimensions: 9-3/4 inches OD
• End Style: Flanged
• Finish: Epoxy Painted
• Inlet to Outlet Length: 5.62 inches
• Nominal Size: 6 inches
• Pressure Class: 150/300 lb
• Pressure Rating: 250/640 psi WOG
• Series: CV90-DI
• Temperature Rating: 100 degrees F
• Trim Material: 300 Stainless Steel/Buna-N/Aluminum Bronze
• Type: Center Guided Wafer
