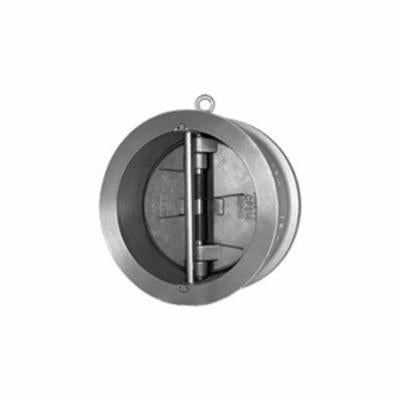

Titan CV44CSM0200 Dual Disc Wafer Check Valve

Product Description

The Titan Flow Control CV44CSM0200 Dual Disc Wafer Check Valve is designed for efficient flow management in piping systems. This valve prevents backflow and drainage, especially on the discharge side of pumps, protecting your system from potential damage. Its lightweight and compact design allows for easy installation and space-saving benefits.

• Cost-efficient design with low weight.
• Minimal head loss for effective flow.
• Quick closure prevents water hammer.

Product Highlights

This check valve is built for longevity and reliability, featuring a dual disc design that allows for a positive shutoff and minimizes slamming and surges.

Product Information

Standard Information

• Brand: Titan
• MPN: CV44CSM0200

Technical Specifications

• Body Material: Carbon Steel
• Dimensions: 4.06 inches OD
• End Style: Flanged
• Finish: Epoxy Painted
• Inlet to Outlet Length: 2.38 inches
• Nominal Size: 2 inches
• Pressure Class: 300 lb
• Pressure Rating: 740 psi WOG
• Series: CV44-CS
• Temperature Rating: 100 degrees F
• Trim Material: 316 Stainless Steel/Inconel X-750
• Type: Dual Disc Wafer
