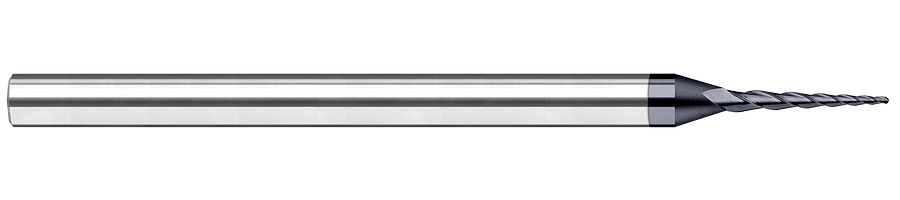

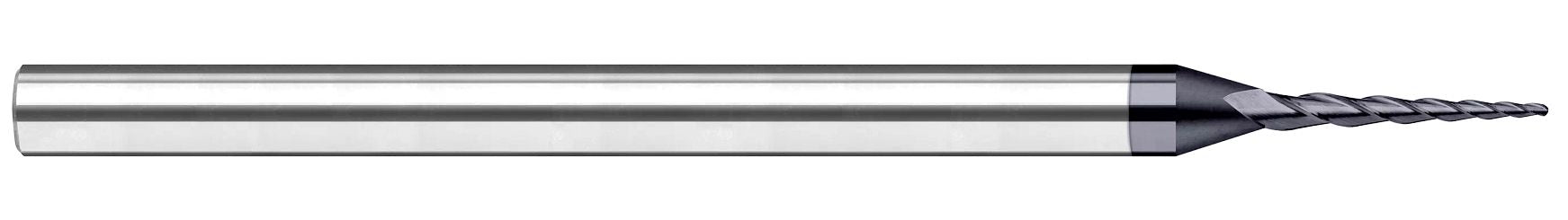

TITAN 21960 Miniature Tapered Ball End Mill 0.0600 Inches

Product Description

The TITAN 21960 is a miniature tapered ball end mill used for various machining tasks. This end mill has a cutter diameter of 0.0600 inches and a length of cut measuring 0.6000 inches. It features three flutes and a shank diameter of 0.1875 inches, also known as 3/16 inches. The overall length of this tool is three inches, and it is coated with C6.

• Cutter Diameter: 0.0600 inches
• Shank Diameter: 0.1875 inches (3/16)
• Coating: C6

Product Highlights

This end mill is designed for precision in slotting, plunging, 3D contouring, finishing, chamfering, and roughing applications.

Product Information

Standard Information

• Brand: TITAN
• MPN: 21960

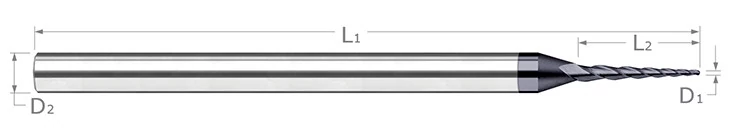

Technical Specifications

• Angle Per Side: 3 degrees
• Cutter Diameter: 0.0600 inches
• Length of Cut: 0.6000 inches
• Shank Diameter: 0.1875 inches (3/16)
• Overall Length: 3.0000 inches
• Flutes: 3
• Coating: C6
• Profile: Ball
