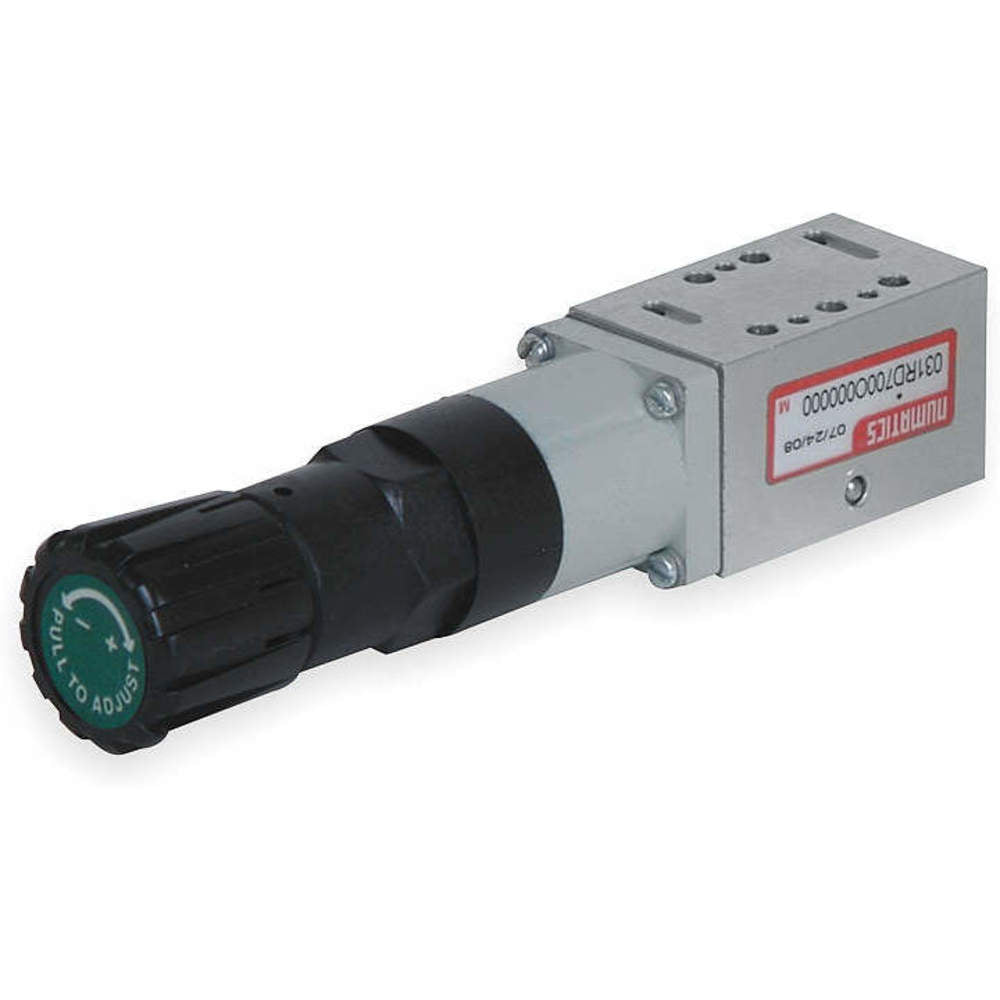

Titan 031RS700O000000 Sandwich Single Air Regulator

Product Description

The Titan 031RS700O000000 is a sandwich single air regulator used to control air pressure in pneumatic systems. The regulator features a relieving valve design and an adjustment knob, allowing for precise pressure settings from ten psi to one hundred psi. It supports a maximum flow rate of fourteen CFM and withstands pressures up to one hundred fifty psi. The compact sandwich design integrates easily into modular pneumatic systems.

• Type: Sandwich Single Air Regulator
• Flow Rate: 14 CFM
• Adjustment Range: 10 psi to 100 psi

Product Highlights

This regulator is designed for effective air pressure management in various applications.

Product Information

Standard Information

• Country of Origin: US

Technical Specifications

• Item: Sandwich Single Air Regulator
• Adjustment Knob: Round
• Max. Flow Rate: 14 CFM
• Max. Pressure: 150 psi
• Max. Temp.: 115°F
• Pipe Size: 1/8
• Overall Height: 0.93 inches
• Overall Length: 0.25 inches
• Overall Width: 0.87 inches
