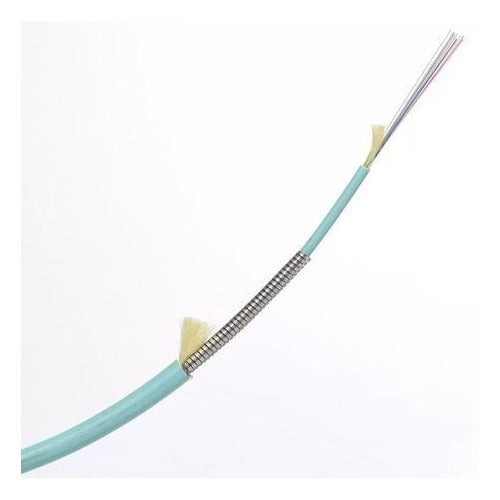

Tinifiber TF6-OM3-PLO 6-strand OM3 Armored Plenum Fiber

Product Description

The TINIFIBER TF6-OM3-PLO is a 6-strand OM3 multimode indoor armored plenum-rated fiber optic cable designed for structured cabling installations in commercial and institutional buildings. The OM3 multimode glass supports 10 Gigabit Ethernet and high-bandwidth applications over typical in-building runs. The armored construction provides mechanical protection against crush and rodent damage, and the plenum jacket rating makes it suitable for air-handling spaces where fire and smoke codes apply. Licensed low-voltage and data cabling contractors install this cable in horizontal and backbone runs.

This cable is intended for indoor plenum environments such as above-ceiling air-handling spaces, raised-floor data rooms, and interfloor riser pathways where both mechanical protection and plenum fire ratings are required. The 6-strand count supports small to mid-density backbone segments, zone distribution, and equipment room patch routing. It ships as a single unit and is appropriate for commercial office, healthcare, education, and government facility cabling projects.

Key Features

• 6-strand OM3 multimode fiber supports 10 Gigabit Ethernet and laser-optimized transmission
• Armored construction provides crush resistance and mechanical protection in high-traffic pathways
• Plenum-rated jacket meets air-handling space installation requirements under NFPA 90A and NEC Article 770
• Indoor-rated design appropriate for structured cabling horizontal and backbone segments
• Single-unit packaging suitable for targeted repair, short-run, or supplemental cabling work

Compatibility

Designed as an OEM-style indoor armored plenum fiber cable for use with standard OM3 multimode fiber optic connectors and termination hardware in commercial structured cabling systems.

Installation Notes

Installation must be performed by a licensed low-voltage or data cabling contractor in accordance with NEC Article 770 and local AHJ requirements. De-energize any active equipment in the pathway before pulling cable, and observe the manufacturer minimum bend radius to avoid fiber damage. Do not use steel-jaw pulling grips directly on the cable jacket; use a rated pulling eye or breakaway swivel rated for the cable weight. Plenum-space installations must comply with NFPA 90A smoke and flame requirements for air-handling plenum materials.
