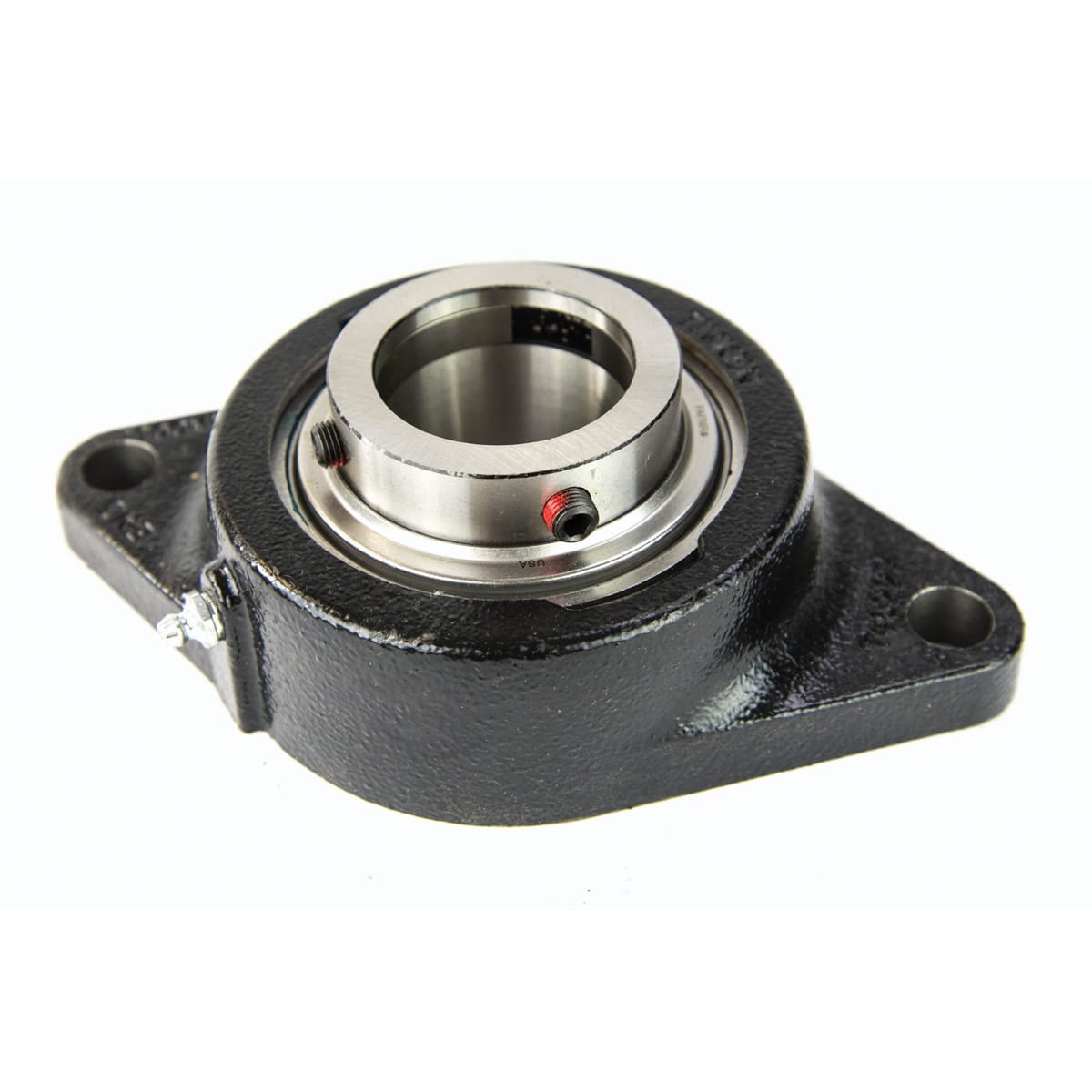

Timken YCJT11/4SGTT Two Bolt Ball Flange Unit | 31.76 mm 1.25 in Bore 71.99 mm 2.83 in OD

Product Description

The Timken YCJT11/4SGTT two bolt ball flange unit combines bearing, housing, seal, and locking system into one device. This design simplifies installation and maintenance for various applications. These units are designed to enhance performance and reliability.

• Assembly-ready for improved installation time.
• Self-aligning capabilities to compensate for shaft misalignment.
• Pre-lubricated for immediate use with options for re-lubrication.

Product Highlights

Timken Fafnir housed units support smooth operation and reduce downtime with advanced technology for efficient performance.

Product Information

Standard Information

• Brand: Timken
• Part Number: YCJT11/4SGTT

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert Sgt
• Bore Diameter: 1.25025 Inch | 31.75635 mm
• Overall Width: 3.63 Inch | 92.202 mm
• Overall Height: 1.827 Inch | 46.4058 mm
• Overall Length: 6.13 Inch | 155.702 mm
• Outside Diameter: 2.83435 Inch | 71.99249 mm
• Net Weight: 2.904 lb
• Dynamic Load Capacity: 6400 lb
• Static Load Capacity: 3440 lb
• Rolling Element: Ball
• Material: Steel
