TIMKEN YCJM27/16 Fafnir Ball Housed Unit | 2.44 in Bore 4.33 in OD

Product Description

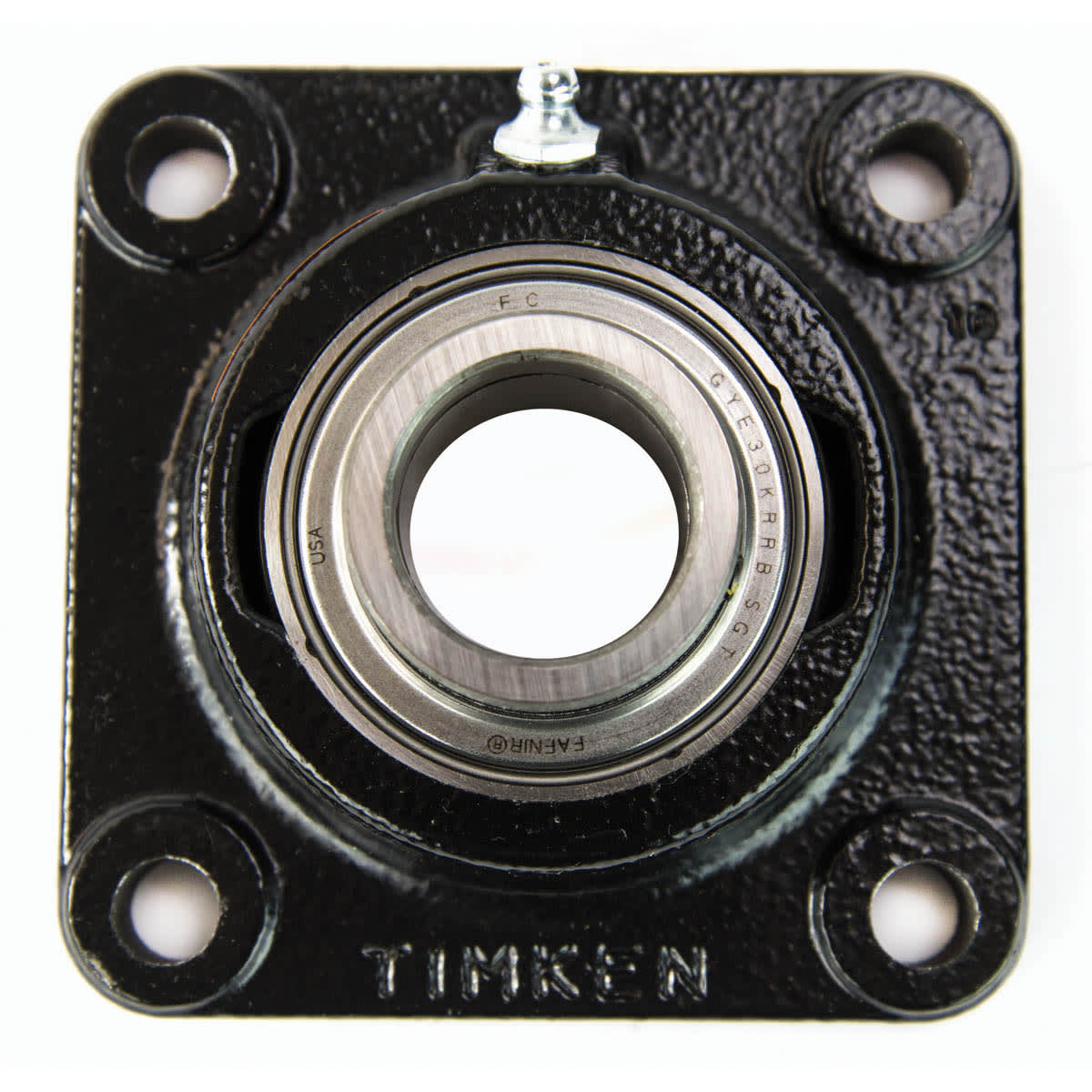

The Timken Fafnir YCJM27/16 is a four-bolt ball flange unit designed for easy installation and reliable operation. This unit combines the bearing, housing, seal, and locking system into one compact device, simplifying the setup process in various applications.

• Assembled and ready for mounting
• Compensates for shaft misalignment
• Factory pre-lubricated with a grease fitting for maintenance

Product Highlights

This housing unit helps prevent downtime through advanced technology that promotes efficiency. Ideal for applications where reliability is critical.

Product Information

Standard Information

• Brand: TIMKEN
• Part #: YCJM27/16T

Technical Specifications

• Bore Diameter: 2.4375 Inch | 61.9125 mm
• Outside Diameter: 4.33 Inch | 110 mm
• Overall Width: 7.375 Inch | 187.325 mm
• Overall Height: 3.208 Inch | 81.4832 mm
• Overall Length: 7.375 Inch | 187.325 mm
• Net Weight: 4.564 lb
• Dynamic Load Capacity: 13100 lb
• Static Load Capacity: 8080 lb
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Ball
• Cage Type: One Piece Molded Nylon
• Retainer Type: One Piece Molded Nylon
• Retainer Material: Nylon
• Radial Internal Clearance: P(C3)
• Type: Wide Inner Ring Ball Bearing Insert
• Rolling Element Material: Steel
