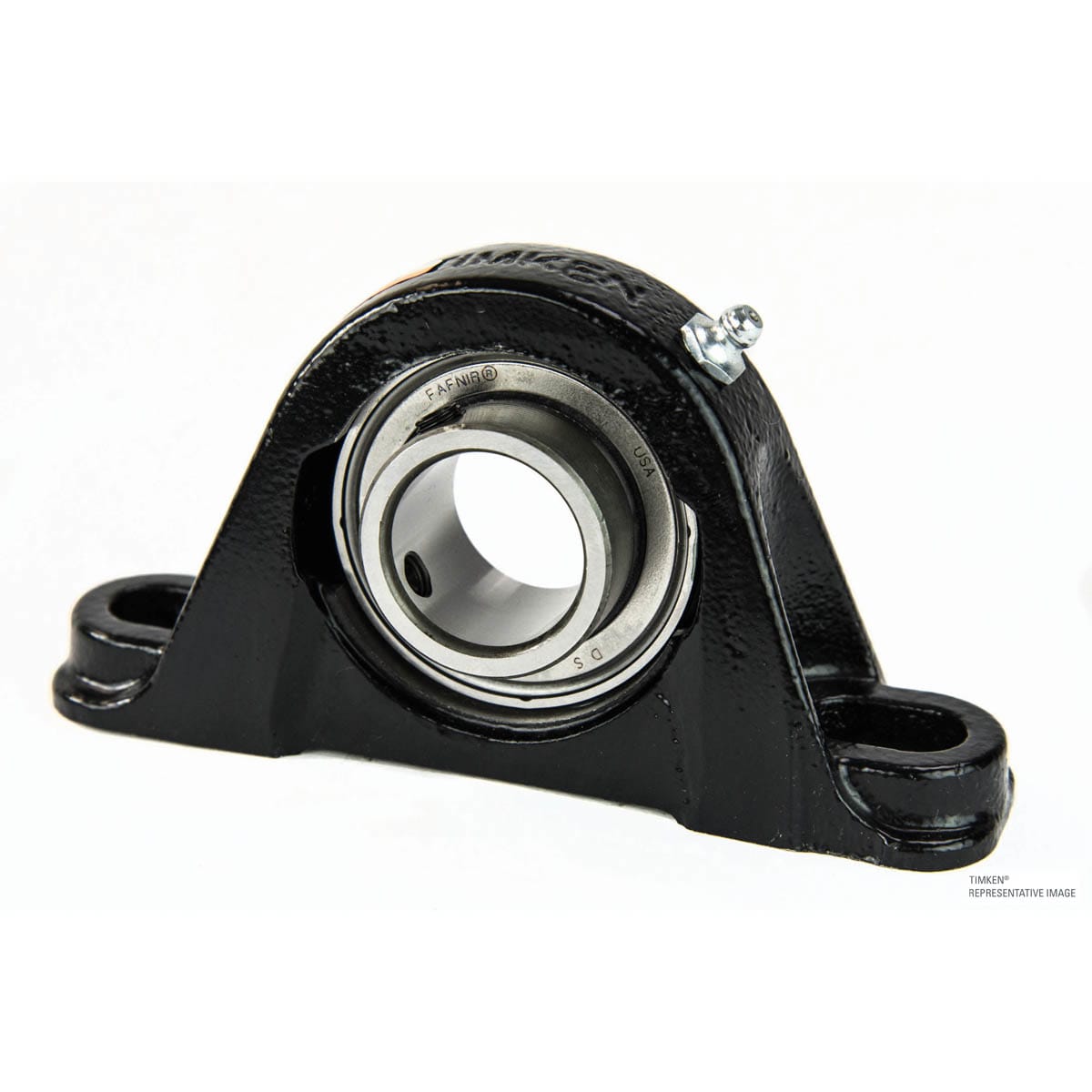

Timken YASM23/16T Cast Iron Pillow Block | 55.372 mm 2.18 in Bore | 110 mm 2.75 in OD | Setscrew locking

Product Description

The Timken YASM23/16T cast iron pillow block is designed for reliable performance in demanding applications. It integrates a bearing, housing, seal, and locking system into a single unit for straightforward installation and operation. This pillow block is ideal for minimizing downtime, using innovative technology to maintain operational efficiency.

• Designed for easy installation.
• Combines bearing and housing for enhanced system performance.
• Built to withstand harsh conditions with superior sealing capabilities.

Product Highlights

This product helps reduce wear and tear on machinery and supports various locking and sealing methods suitable for industrial environments.

Product Information

Standard Information

• Brand: Timken
• Part Number: YASM23/16T

Technical Specifications

• Type: Mounted Ball Bearing
• Material: Steel
• Bore Type: Round
• Net Weight: 9.898 lb
• Shaft Size: 2.18 Inch | 55.372 mm
• Outside Diameter: 2.75 Inch | 110 mm
• Overall Width: 7.4 Inch | 187.96 mm
• Overall Height: 5.468 Inch | 138.9 mm
• Overall Length: 9.437 Inch | 239.7 mm
• Dynamic Load Capacity: 11800 lb
• Static Load Capacity: 8080 lb
• Rolling Element: Ball
• Cage Type: PRB Retainer
• Cage Material: Nylon
• Precision Class: ISO Normal/ABEC1
• Radial Internal Clearance: P(C3)
• Retainer Type: PRB Retainer
• Bolt Size: 0.63 Inch | 16 mm
