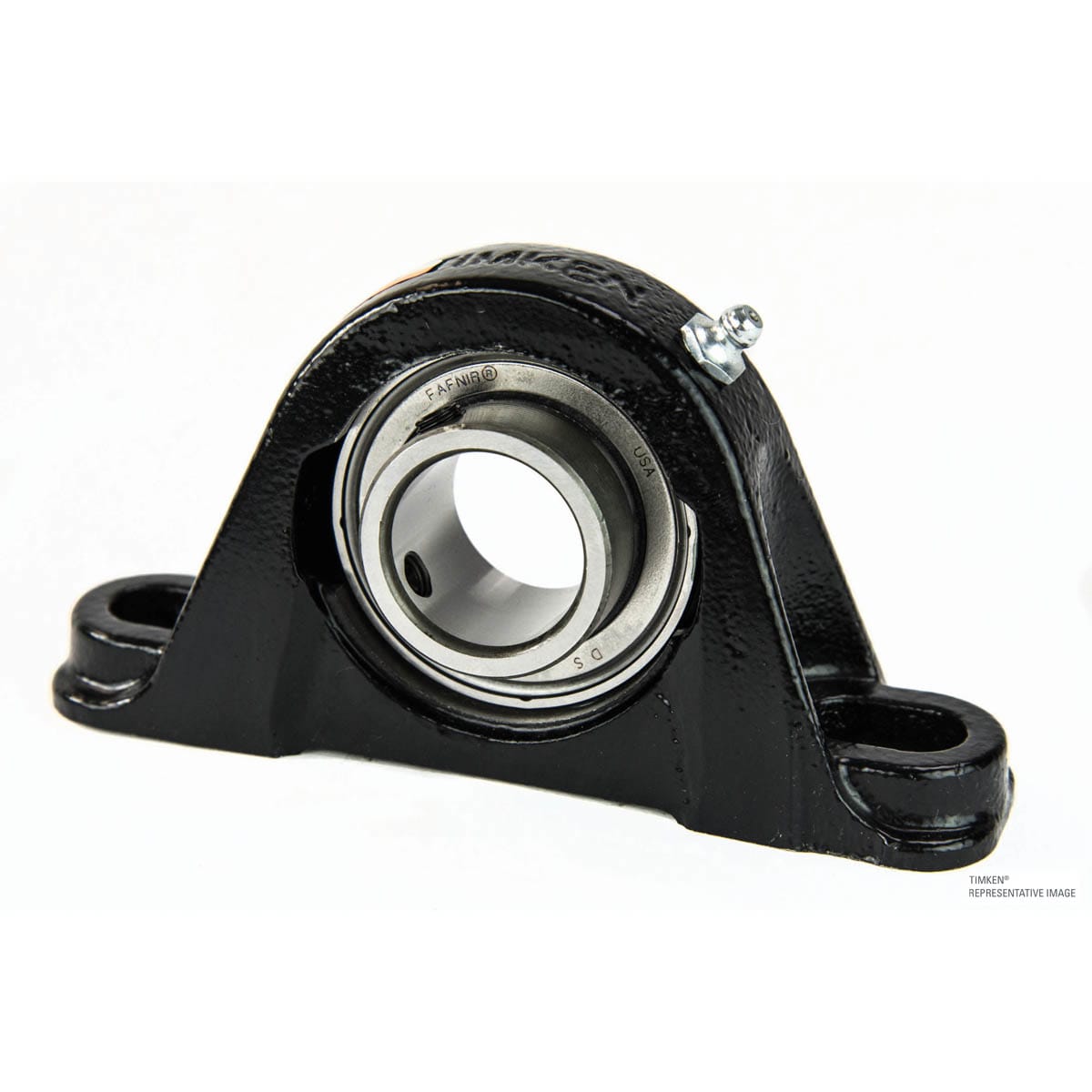

Timken YASM215/16 Cast Iron Pillow Block | 2.93 In Bore | 3.5 In OD | YASM2-15/16T

Product Description

The Timken YASM2-15/16T is a cast iron pillow block designed for optimal performance. This product combines the bearing, housing, seal, and locking system into one unit, allowing for straightforward installation and efficient operation.

• Features multiple sealing and locking solutions for demanding applications.
• Includes Shaft Guard Technology which prevents damage to the shaft.
• Offers superior protection against contamination and wear.

Product Highlights

This pillow block bearing is built to address specific application needs, helping to minimize downtime and enhance operational efficiency.

Product Information

Standard Information

• Brand: Timken
• Part Number: YASM2-15/16T

Technical Specifications

• Type: Mounted Ball Bearing
• Material: Steel
• Bore Type: Round
• Net Weight: 24.96 lb
• Outside Diameter: 3.5 In | 130 mm
• Dynamic Load Capacity: 16100 lb
• Static Load Capacity: 12200 lb
• Overall Width: 9 In | 228.6 mm
