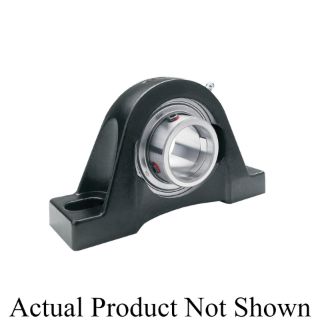

Timken YAS13/8SGT YAS1 3/8 SGT TKN Normal Duty Pillow Block Ball Bearing Unit

Product Description

The Timken YAS1 3/8 SGT is a normal duty pillow block ball bearing unit designed for various industrial applications. This unit features a one and three-eighth inches bore, making it suitable for mounting on straight shafts. It includes a two-bolt base for secure installation and is equipped with a shroud seal.

• Designed for high load capacity with 5770 lb dynamic and 3440 lb static ratings
• Constructed from cast iron for durability and strength
• Maximum speed rating of 3930 rpm for efficient operation

Product Highlights

This bearing unit supports shaft protection and reduces replacement time, enhancing performance and lifespan. It is ideal for use in agriculture, food processing, fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Timken
• Type: Normal Duty

Technical Specifications

• Finish: Uncoated
• Series: YAS
• Material: Cast Iron
• Bore Type: Round
• Seal Type: Shroud
• Base Width: 1.843 in
• Bore Diameter: 1-3/8 in
• Load Capacity: 5770 lb Dynamic/3440 lb Static
• Maximum Speed: 3930 rpm
• Mounting Type: Two-Bolt Base
• Overall Width: 1-11/16 in
• Expansion Type: Non-Expansion (Fixed)
• Locking Device: Set Screw
• Overall Height: 3.752 in
• Overall Length: 6.563 in
• Temperature Rating: 250 deg F
• Base to Bore Centerline: 1-7/8 in
• Bolt Center-to-Center Length: 5.126 in
