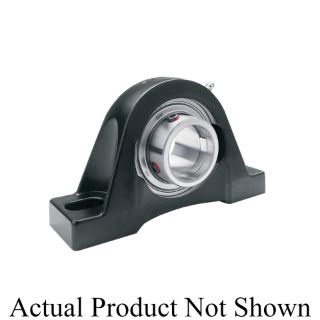

Timken YAS115/16SGT Cast Iron Pillow Block Ball Bearing Unit

Product Description

The Timken YAS115/16SGT is a cast iron pillow block ball bearing unit designed for varied industrial applications. This unit features a round bore with a diameter of one and fifteen-sixteenths inches. The two-bolt base allows for strong mounting on flat surfaces. It is well-suited for demanding environments such as agriculture, food processing, and conveyor systems.

• Designed for easy installation and operation.
• Includes a set screw locking device to secure the shaft.
• Constructed from durable cast iron for longevity.

Product Highlights

This bearing unit combines the housing, bearing, seal, and locking mechanisms into one device for effective performance. The design provides support for shafts while reducing wear and enhancing operational efficiency.

Product Information

Standard Information

• Brand: Timken
• MPN: YAS115/16SGT

Technical Specifications

• Bore Diameter: 1-15/16 inches
• Overall Length: 7.882 inches
• Overall Width: 2-1/32 inches
• Overall Height: 4-1/2 inches
• Dynamic Load Capacity: 7890 lb
• Static Load Capacity: 5210 lb
• Maximum Speed: 3000 rpm
• Temperature Rating: 250 degrees F
