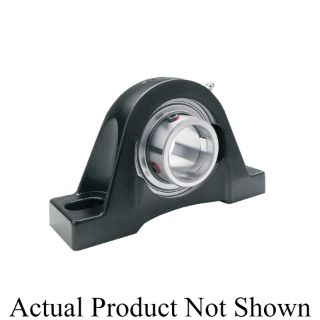

Timken YAK1SGT YAK Normal Duty Pillow Block Ball Bearing Unit 1 in Bore YAK1 SGT

Product Description

The Timken YAK1SGT is a normal duty pillow block ball bearing unit designed for various industrial applications. This unit features a one inch diameter bore and a four point one two six inch bolt center-to-center length, making it suitable for standard mounting requirements. Its construction includes a cast iron housing with a shroud seal for added protection and longevity.

• Constructed for straightforward mounting on straight shafts.
• Features a set screw locking device to secure the shaft.
• Designed for normal duty applications with a maximum speed of five thousand four hundred forty revolutions per minute.

Product Highlights

This pillow block bearing unit is ideal for applications in agriculture, food processing, fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Timken
• Type: Normal Duty

Technical Specifications

• MPN: YAK1SGT
• Bore Diameter: 1 inch
• Base Width: 1.469 inches
• Overall Length: 5.5 inches
• Overall Height: 2.756 inches
• Load Capacity: 5770 lb Dynamic / 3440 lb Static
• Maximum Speed: 5440 rpm
• Temperature Rating: 250 degrees F
