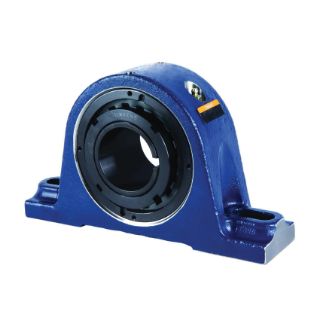

Timken TAPN22K315SM Pillow Block Spherical Roller Bearing Unit 3-15/16 in Bore

Product Description

The Timken TAPN22K315SM Pillow Block Spherical Roller Bearing Unit is designed for handling high radial loads in various applications. This unit features a bore diameter of three and fifteen-sixteenths inches and accommodates bolt dimensions ranging from twelve and a half to fourteen and a half inches in length.

• Constructed with cast steel housing for durability.
• Equipped with a tapered adapter locking device for secure mounting.
• Designed for maximum operating speeds of up to nine hundred rpm.

Product Highlights

This bearing unit is suitable for a variety of uses, including metal mills, agriculture, and HVAC systems.

Product Information

Standard Information

• Brand: Timken
• MPN: TAPN22K315SM

Technical Specifications

• Bore Diameter: 3-15/16 in
• Bolt Center-to-Center Length: 12-1/2 to 14-1/2 in
• Base to Bore Centerline: 4.921 in
• Overall Length: 16 in
• Overall Width: 4.47 in
• Overall Height: 9.47 in
• Mounting Type: Two-Bolt Base
• Locking Device: Tapered Adapter
• Load Capacity: 125000 lb Dynamic/147000 lb Static
• Maximum Speed: 900 rpm
• Seal Type: Triple Lip M
• Expansion Type: Non-Expansion (Fixed)
• Finish: Powder Coated
• Material: Cast Steel
