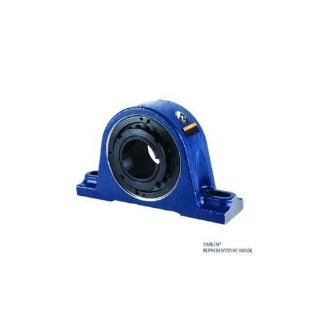

Timken TAPN22K315SEM Pillow Block 3.9375 in Diameter Bore

Product Description

The Timken TAPN22K315SEM Pillow Block is designed for demanding environments. This unit features a three point sealing solution that prevents contaminants from entering, ensuring efficient performance. It includes options for various mounting configurations and is compatible with a wide range of applications.

• 3.9375 inches diameter bore
• 12.5 to 14.5 inches bolt center-to-center length
• Temperature rating from -50 to 200 degrees Fahrenheit

Product Highlights

Timken's TAPN series offers reliability and durability for heavy-load situations. Its steel construction ensures a long service life in tough operating conditions.

Product Information

Standard Information

• Brand: Timken
• Series: TAPN

Technical Specifications

• Bore Diameter: 3.9375 inches
• Overall Length: 16 inches
• Overall Width: 4.47 inches
• Overall Height: 9.47 inches
• Load Capacity: 125000 lb Dynamic/147000 lb Static
• Maximum Speed: 900 rpm Grease/900 rpm Oil
• Mounting Type: 2-Bolt
• Expansion Type: Expansion
